3023

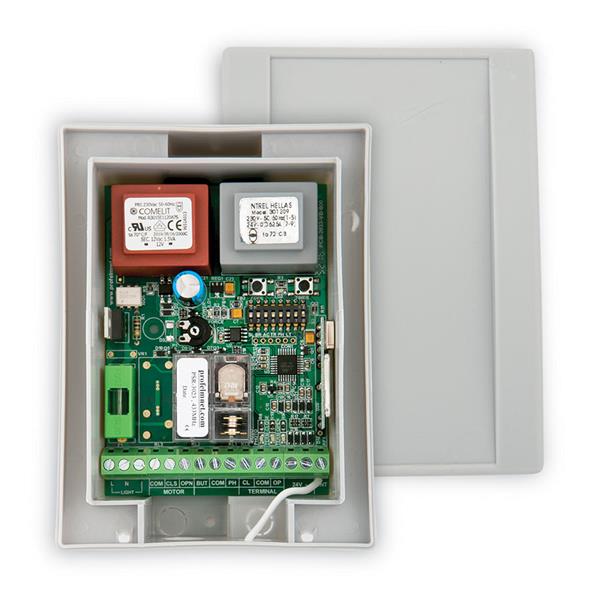

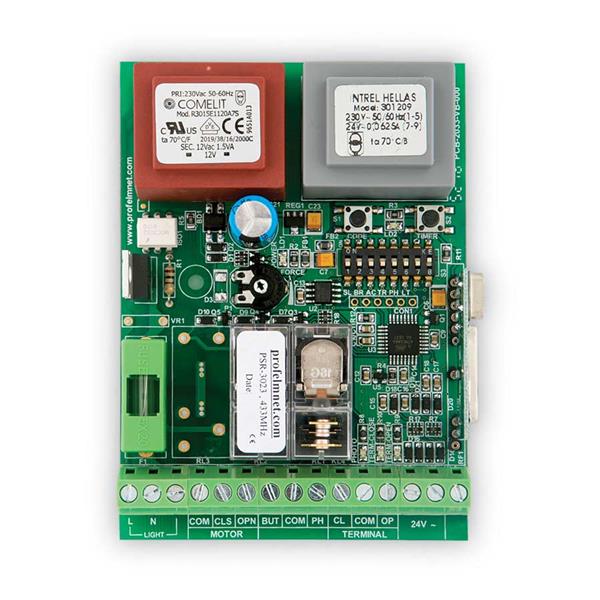

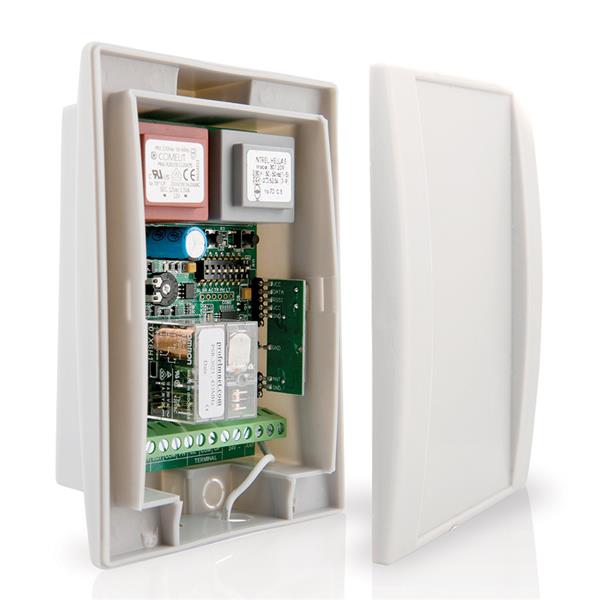

Control panel for sliding gate motor up to 1200 watt

3023 is a new control panel 110/230VAC suitable for sliding gate motor up to 1200 watt. Retrofit and new embedded functions. 300 transmitters can be stored.

ProfelmNet

Main functions

  • Provides different leds that work based on each different function of the receiver
  • Separate limit switch inputs for the motor
  • External button: N.O contact
  • Photocell contact input at 24VAC/1,1VA
  • Adjustable electronic motor torque
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature: Smart auto-close timer
  • Motor operating time: Programmable from 1 to 180 seconds
  • Provides filters for the external noises
  • Working temperatures: -20oC - 60oC
  • Size: 111mm X 82mm  X 30mm including ABS housing
ProfelmNet

Available codes

Product name    Codification  Compatible Transmitters
PS3023      fixed 433.92MHz  PSD-36T, PS-46T
PSR3023  keeloq rolling 433.92MHz PSR-38T, PSR-46T, PSR-25T, PSR-15T, S-18T
PTR3023   keeloq rolling 868.3MHz PTR-15T
PN3023 pn rolling 433.92MHz PN-46T



ProfelmNetAccessories

Enrich the product with the appropriate accessories, giving it more functionality and features.
