PSR-13RS keeloq rolling

One channel receiver 12/24V, rolling codification, 433,92MHz
13RS also available in:

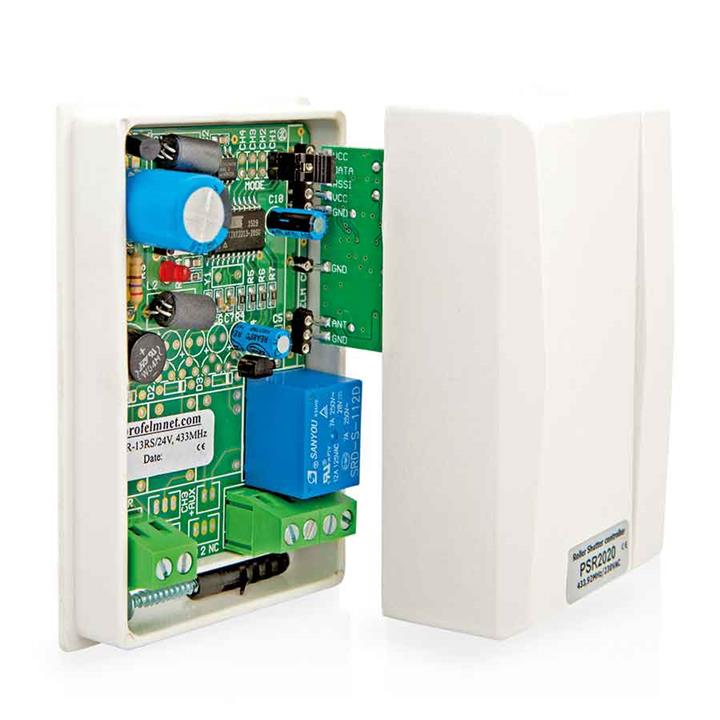

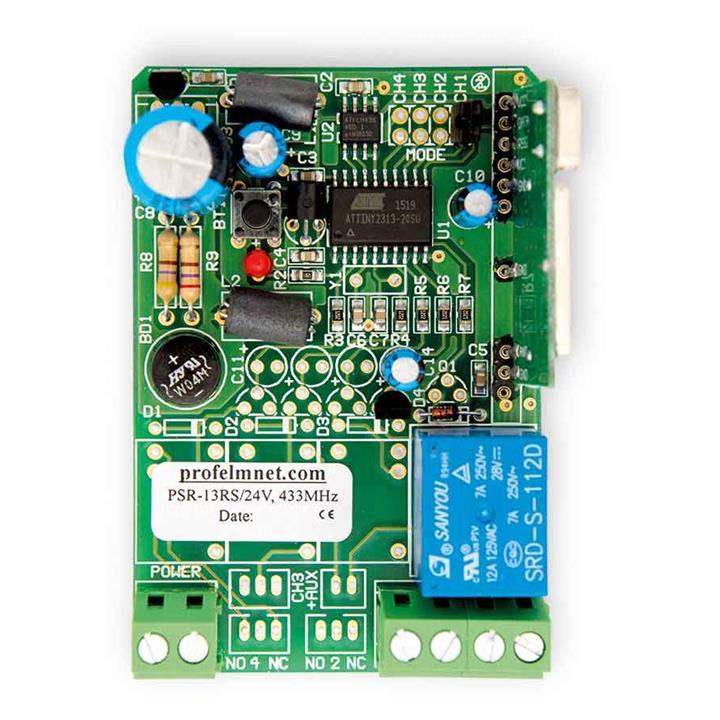

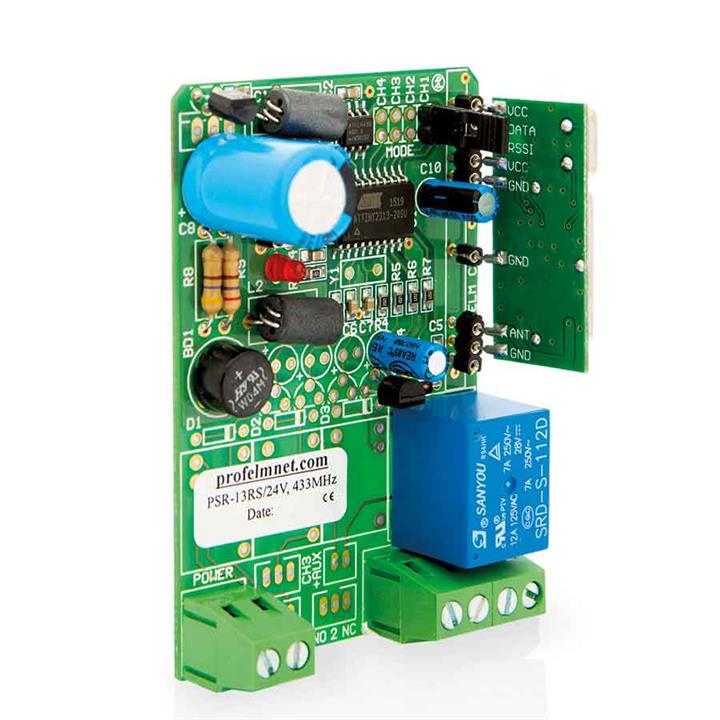

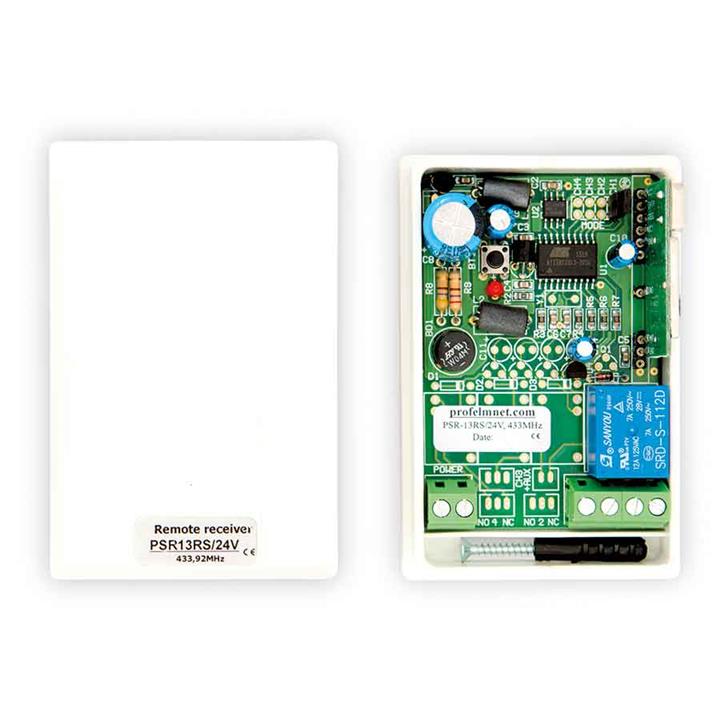

 PSR-13RS 12/24V is one channel receiver, in rolling codification for 12V or 24 V. It is easy to be installed and controls high RF frequencies.


Main functions


  • Absorption 10mA max. at stand-by and 25mA on relay activation
  • Operation selectable PUSH-ON or PUSH ON-OFF    jumpers
  • Power supply 12-24V AC/DC in different models.
  • Operating frequency 433,92MHz
  • Codification Motorola/National constant codification
  • Range from 30 to 100 meters depends on the environment
  • Sizes: 82X59X30mm
  •  Working temperatures: -15οC to +60ο C


Compatible transmitters
