PN35SS-10N

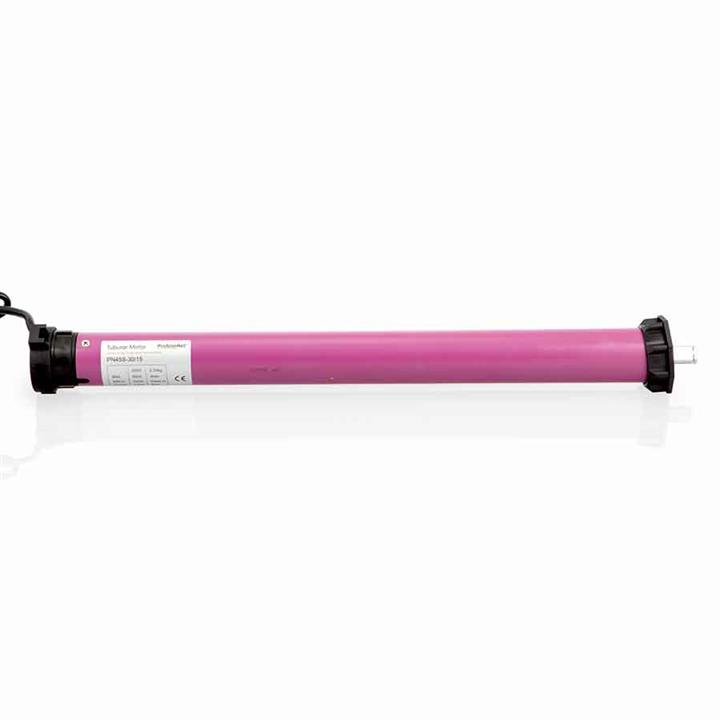

Tubular motor 10N

Profelmnet tubular motor is the unique solution for rolling shutters and awnings. It is powerful, easy to be installed and competely noiseless.  6 years quarantee. Compatible for axis Φ40. The main advantage is the Super Short Size.

ProfelmNet

Main motor technical data

  • Rated torque  10 N. m
  • Rated speed 17 rpm
  • Rated power input 121W
  • Tube diameter 35mm
  • Rated current 0,53A
  • Running time 4 min
  • Maximum number of turns  37
  • Dimension 360mm

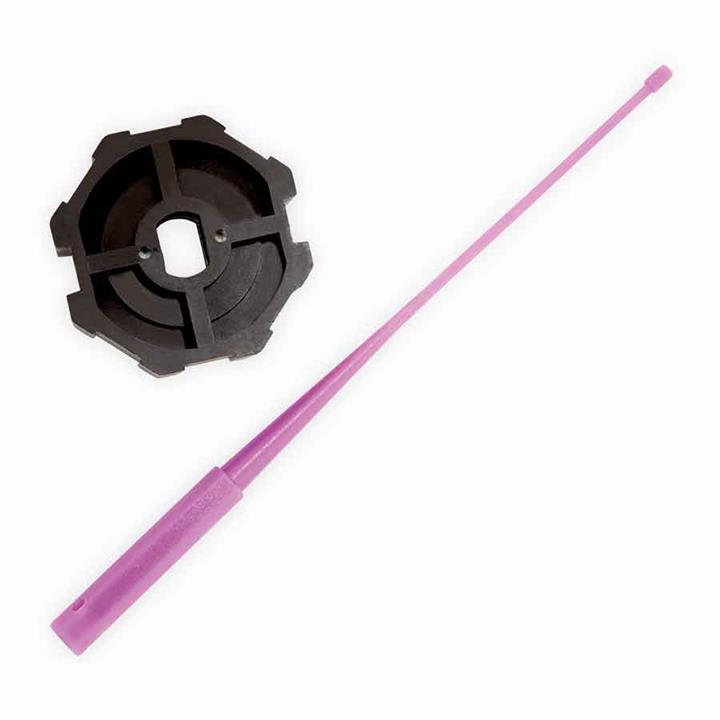

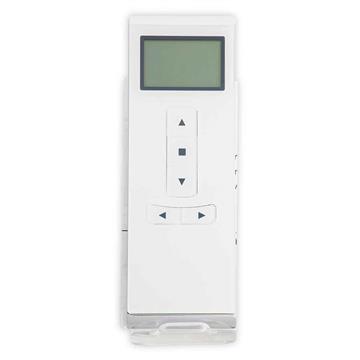

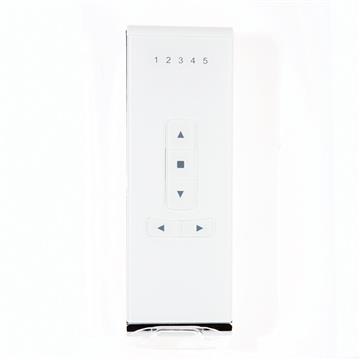

ProfelmNetAccessories

Enrich the product with the appropriate accessories, giving it more functionality and features.
