Motors
PN59M-80N

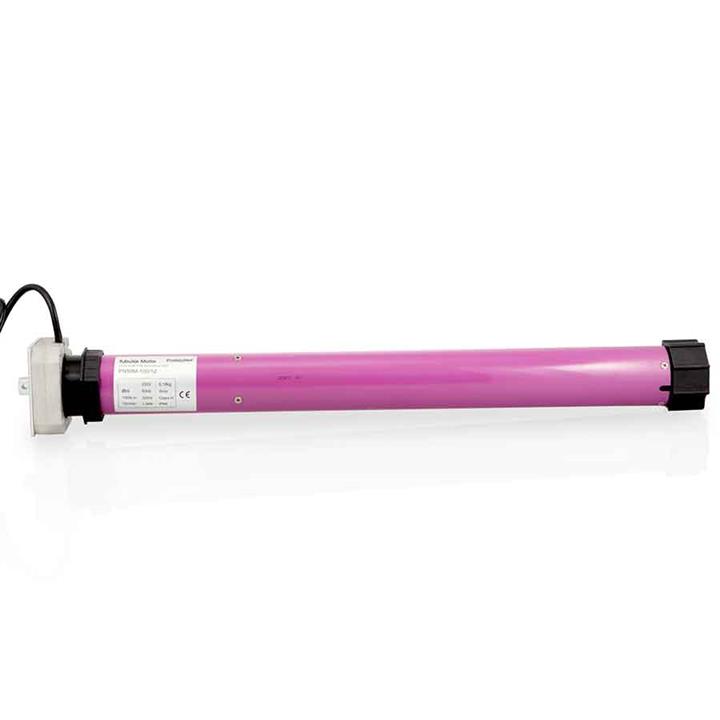

Tubular motor 80N manual
The Profelmnet 's tubular motor is the unique solution for rolling shutter ans awnings. It is powerful, easy to install and competely noiseless. It has 6 years quarantee. It is for axis Φ70 and its motor torque is up to 80N. It is a manual motor. Various adapters are available for different sizes of axis.
Main motor technical data
- Rated torque 80 N. m
- Rated speed 12 rpm
- Rated power input 370W
- Tube diameter 59mm
- Rated current 1,80A
- Running time 4 min
- Maximum number of turns 36
