Winner 600/200

Rolling shutter automation for residential or industrial use up to 170kg

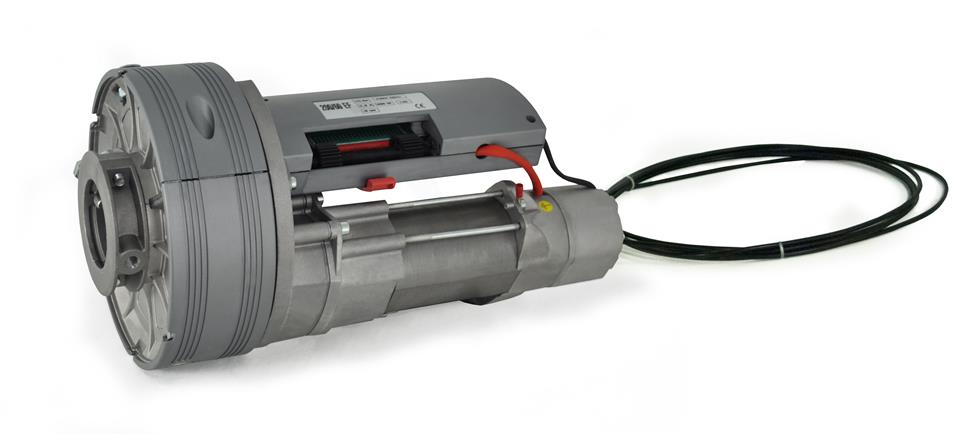

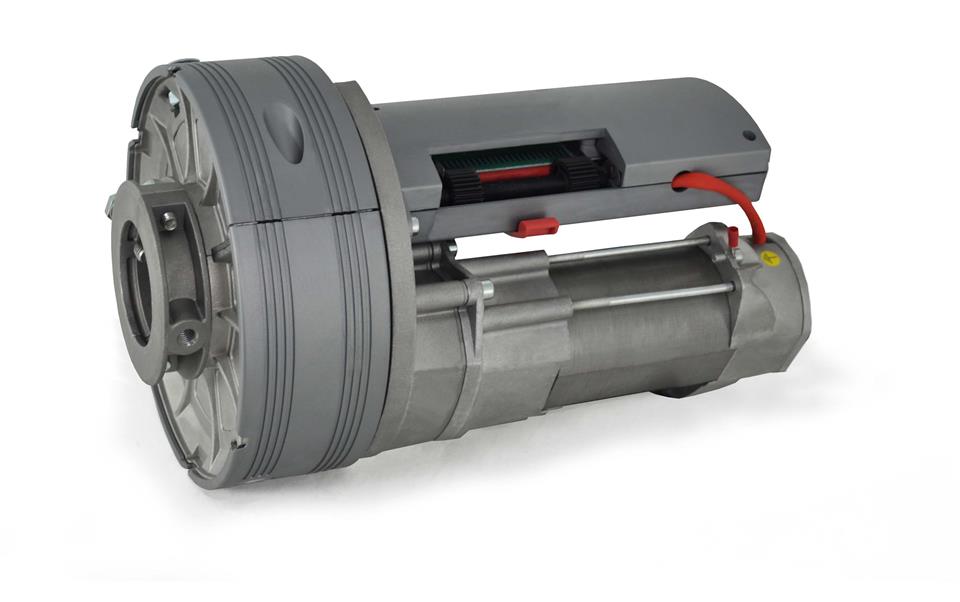

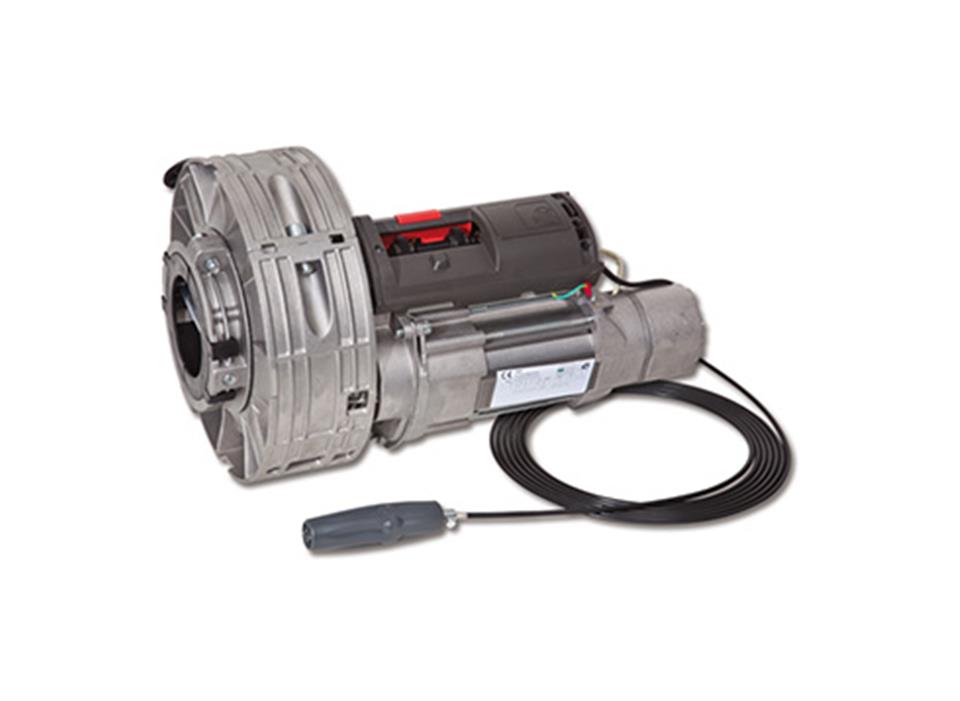

Winner is rolling shutter automation for residential or industrial use. It is suitable for roling shutters up to 170kg. It contains the unlocking cable that is up to 5m. Integrated limit switches allow precise adjustment of the shutter opening and closing positions. Prewired Profelmnet control panel for the excellent operation of the electric rolling shutter. The motor has 2 years guarantee.


Main motor technical data

  • Maximum gate weight : 170kg
  • Power supply : 230V
  • Motor power: 600Watt
  • Maximum thrust: 178Ν
  • Motor speed: 10RPM
  • Diameter winding flange: 200-220mm
  • Diameter drive shaft: 60mm

Main control panel functions

  • External button N.O contact
  • Photocell contact input at 24VAC/1,1VA
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Provides different leds that indicate each different function of the receiver
  • Adjustable working time from 1-180S.
  • Provides filters for the external noises
  • Auto-close feature  Smart auto-close timer
  • Working temperatures: -20 to +60 Celsius
  • Size 111mm (L) X 82mm (W) X 30mm (H) including ABS housing
