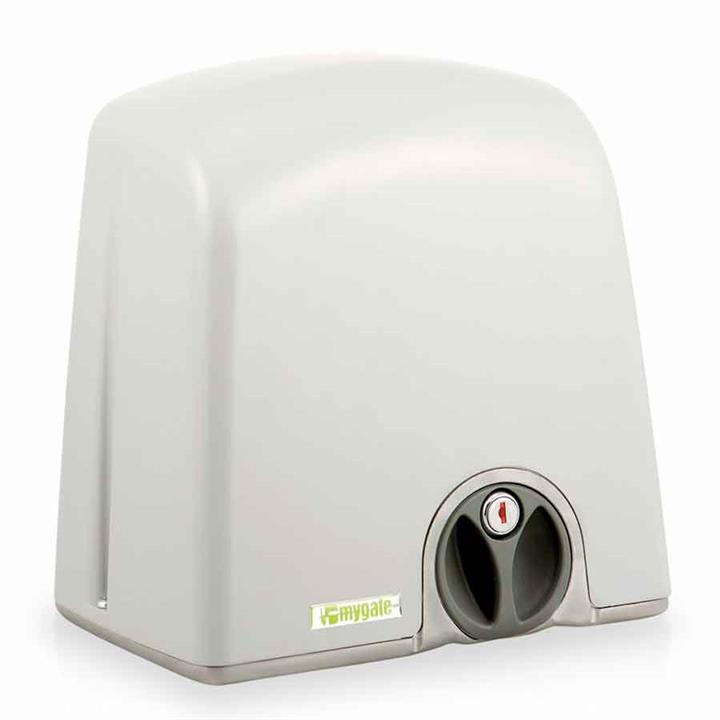

STRIKE 4

Sliding door motor for doors up to 450kg, embedded Profelmnet control panel

STRIKE 4 is sliding gate automation 24VDC. It is powerful, quiet, with a compact design. Perfect for either wrought iron or solid timber sliding gates, with maximum door weight up to 450 kg. Embedded pre-wired Profelmnet control panel, covering all requirements for the best function of the motor.

ProfelmNet

Main motor technical data

  • Maximum door weight is 450 kg
  • Motor power   24Vdc / 80 watt
  • Opening time  11 meters / minute
  • Motor rpm  1600
  • Protection rating  IP44
  • Weight 8 kg

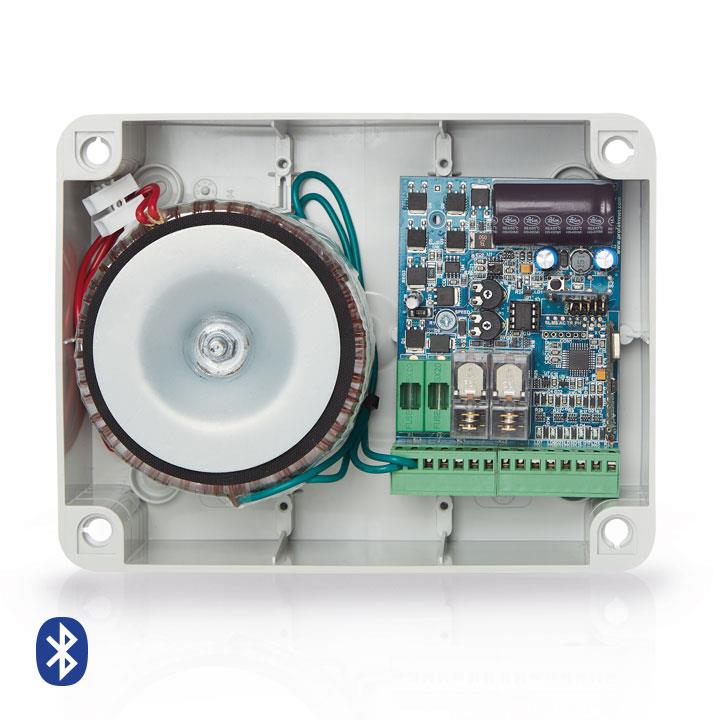

ProfelmNet

Main control panel functions

  • Provides different leds that work based on each different function of the receiver
  • Separate limit switch inputs for the motor
  • No sparking relays for longer life time of relays
  • External button: N.O contact for only opening
  • Photocell contact input at 24VAC/1,1VA
  • Amperometric sensitivity
  • Adjustable electronic motor torque
  • Automatic motor’s reversion
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Adjustable automatic closing
  • Motor operating time is programmable from 1 to 180 seconds
  • Provides filters for the external noises
  • Working temperatures: -20oC to + 60oC
  • Size: 111mm X 82mm X 30mm including ABS housing
ProfelmNetAccessories

Enrich the product with the appropriate accessories, giving it more functionality and features.
