Motors
VDS 2500
Sliding door motor for gates up to 2500 kg, embedded Profelmnet control panel

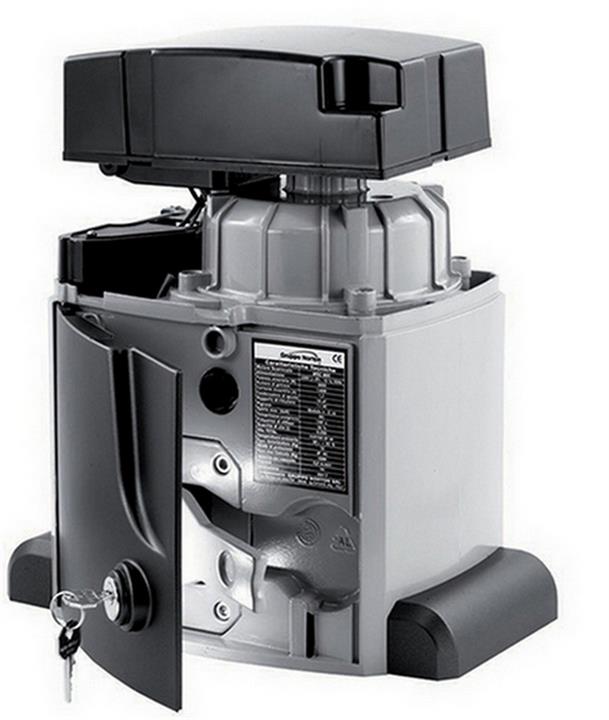

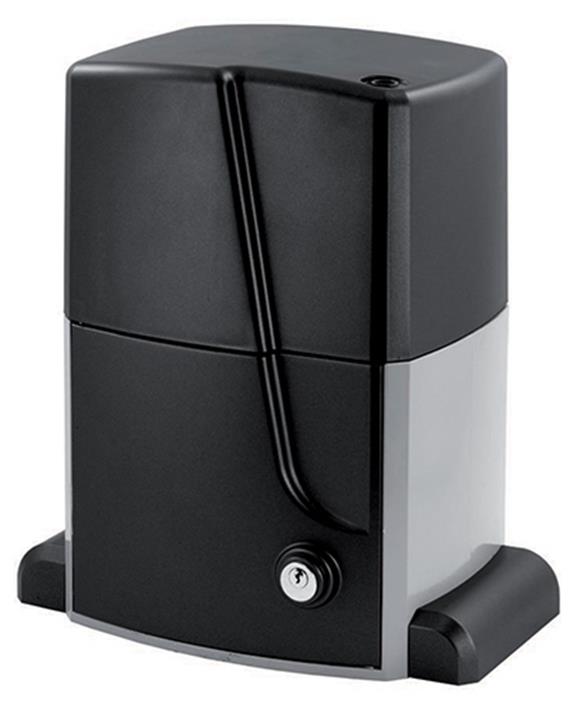

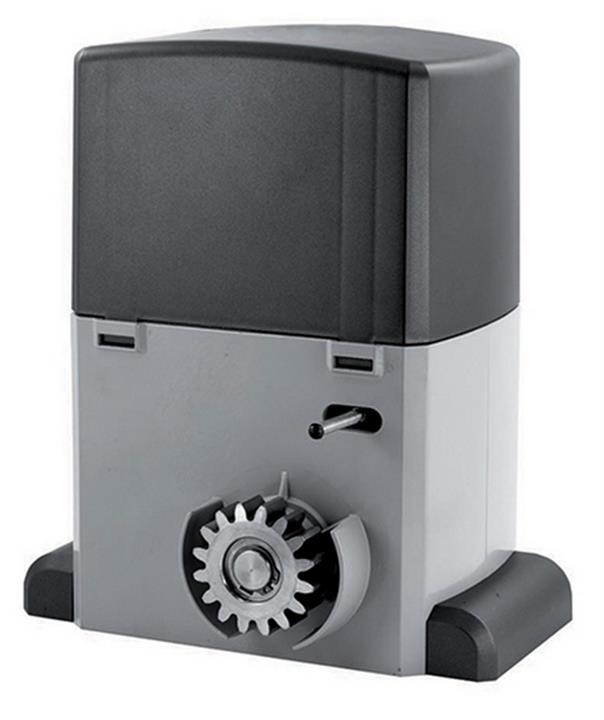

VDS 2500 is sliding gate automation for rack driven gates up to 2500 kg for residential and community use. It is reliable, simple and versatile. The die-cast aluminium and the bronze gear transmission system give a long lasting life. Oil bath stator and mechanical parts. Embedded Profelmnet control panel, covering all requirements for the perfect motor's operation.
Main motor technical data
- Maximum door weight is 2500 kg
- Motor power 230V/650W
- Opening time 9,6 meters / minute
- Motor rpm 1400
- Protection rating IP44
- Weight 17 kg

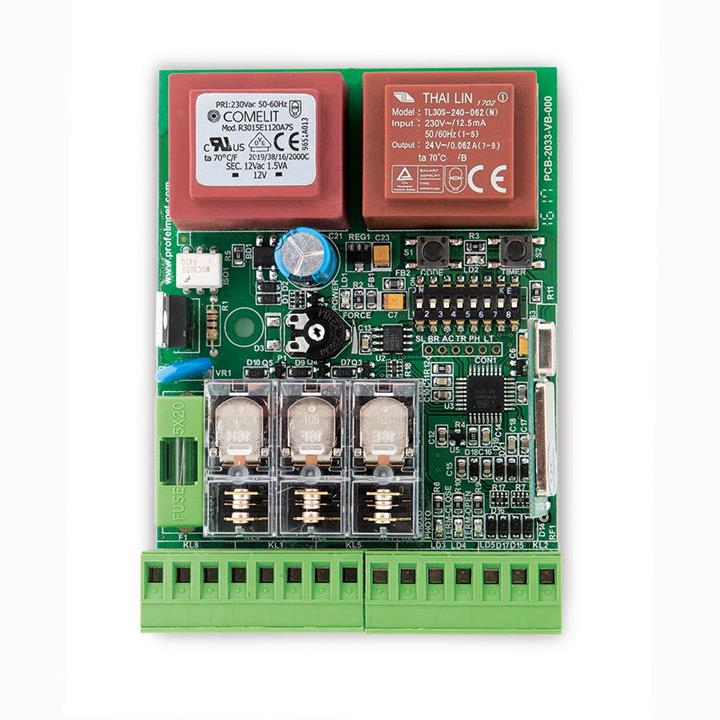

Main control panel function
- Motor brake function
- Adjustable electronic motor torque and adjustable decelaration seperately
- Automatically change motor's direction automatically
- External button
- Photocell contact input at 24VAC/1,1VA
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature: Smart auto-close timer
- Motor operating time: Programmable from 1 to 180 seconds
- Indepentent deceleration during open and close for motor
