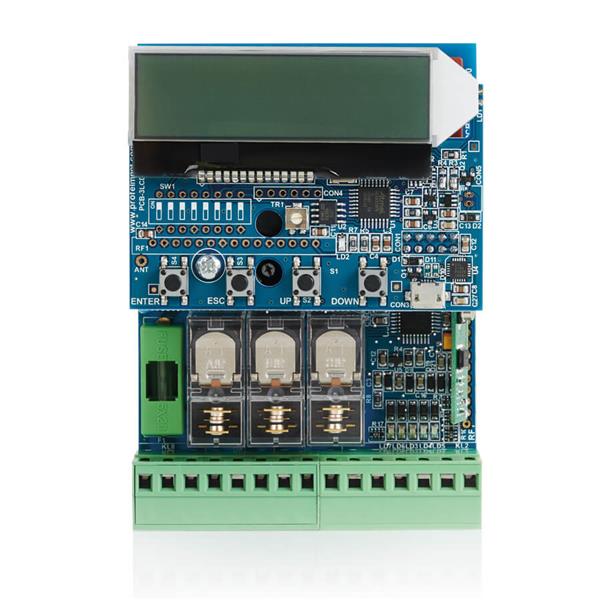

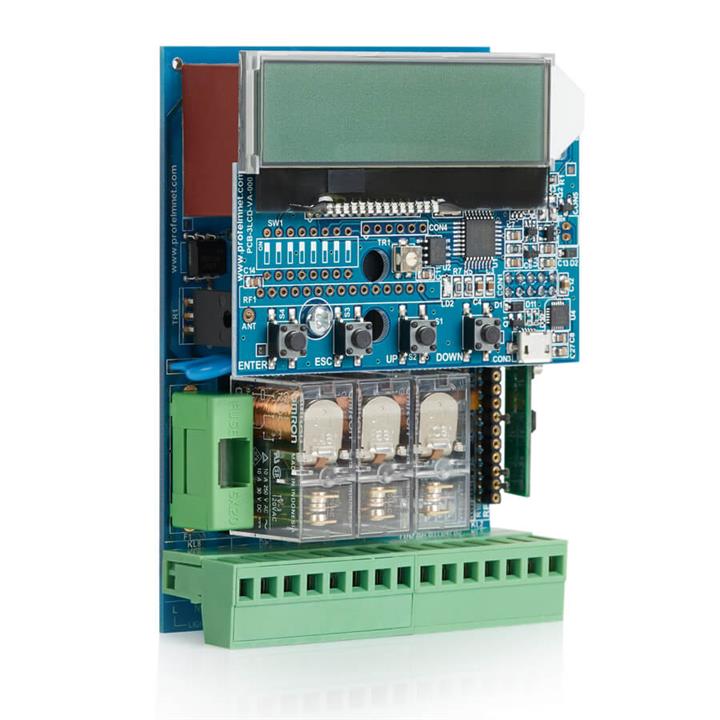

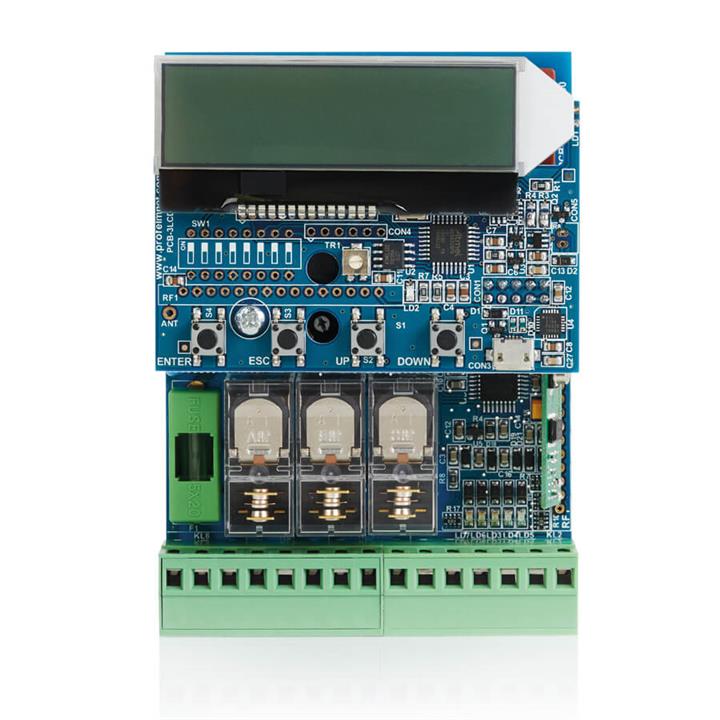

LCD control board for sliding gate motor up to 1200 watt

Series 40 is the complete Profelmnet LCD automation product line. A combination of technology, innovation and upgraded features. Profelmnet with series 40 presents a totally sophisticated line in terms of capabilities and functions, in the smallest size of the market. User friendly menu, quick installation, one type of board for all types of installations, durability in hardware, security for the installer. Series 40 has an advanced menu system using integrated keyboard and backlight LCD display on the board to make configuration and maintenance easy and fast.


Main functions

  • Power supply 230 VAC / 110 VAC
  • Power handlling up to 1200 watt
  • Memory up to 300 transmitters
  • Adjustable electronic motor torque
  • Adjustable decelaration
  • Pedestrial function
  • Adjustable auto close
  • Soft start and stop
  • Input for soft-edge
  • Input for photocells
  • Motor break
  • Adjustable codification
  • Access control possibility
  • Working temperatures: -20 to +60 Celsius

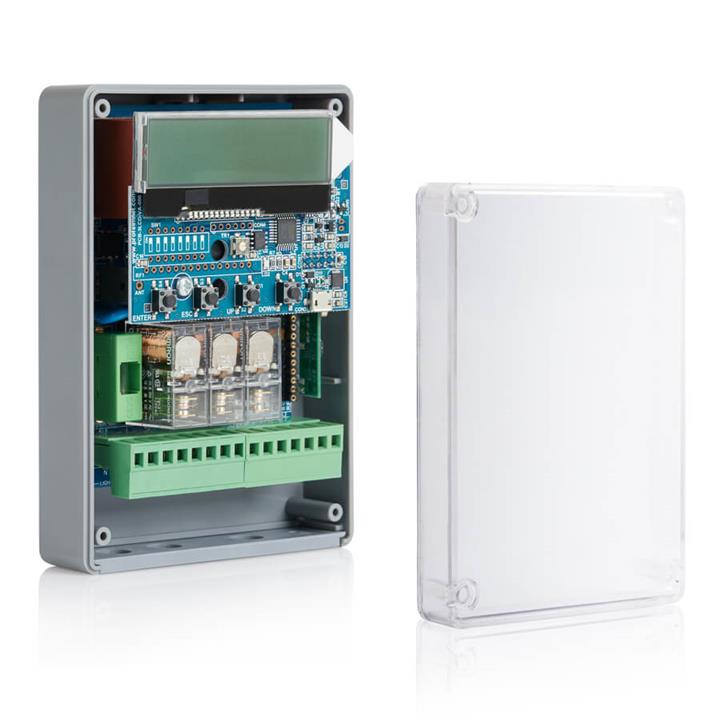

  •  Size: 95mm X 45 mm X 13mm including ABS housing

Enrich the product with the appropriate accessories, giving it more functionality and features.
