Control panels
2033

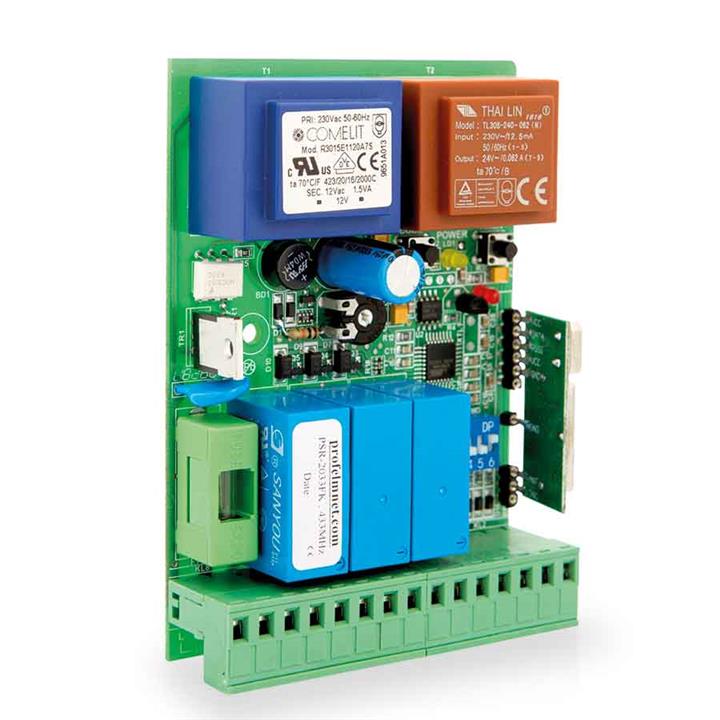

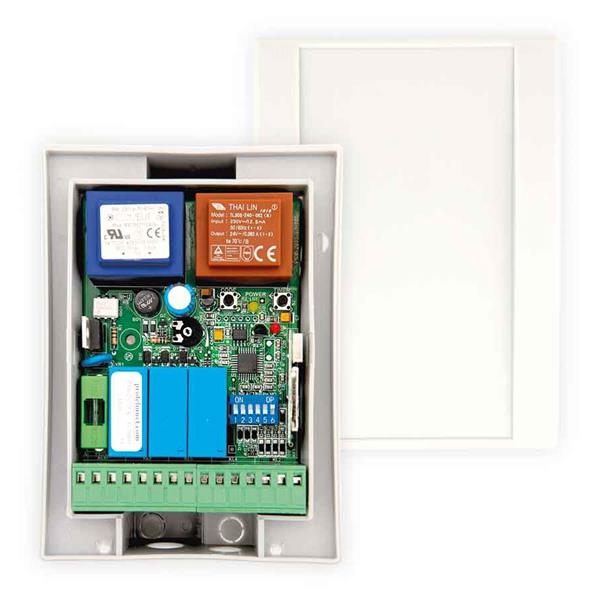

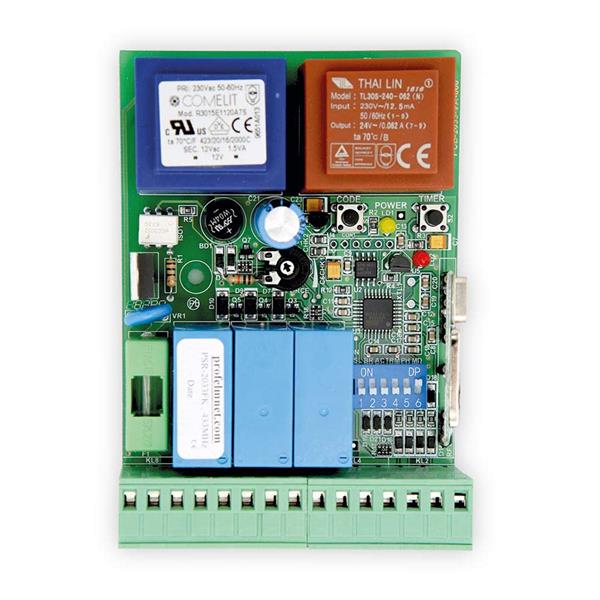

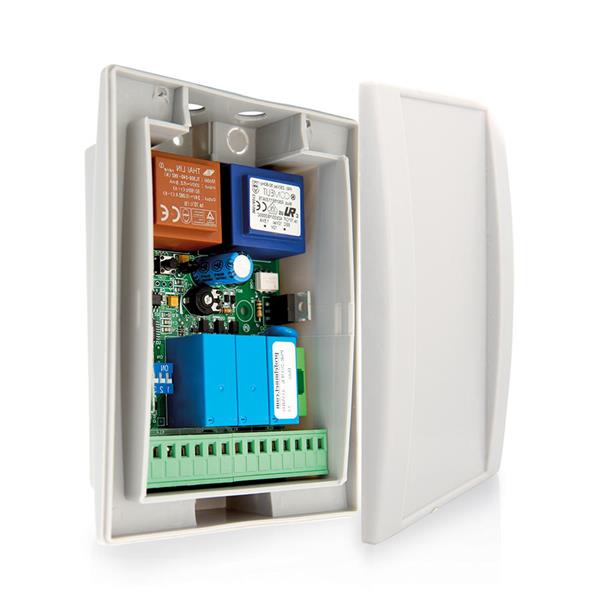

Multi-function control panel for sliding gate motor up to 1000 watt
2033 is a multi-function control panel 110/230VAC suitable for sliding gate motor up to 1000 watt. Durable and reliable. 20 or 80 transmitters can be stored.
Main functions
- Photocell N.C. contact input at 24VAC/1,1VA
- Separate limit switch inputs for the motor
- Adjustable electronic motor torque
- Output for flashing light 230VAC/25W standard with or without intermittence
- No sparklng relays for longer life time of relays
- Auto-close feature: Smart auto-close timer
- Motor operating time is programmable from 1 to 180 seconds
- Indepentent deceleration during open and close for motor
- Provides filters for the external noises
- Working temperatures: -20oC to +60oC
- Size: 111mm X 82mm X 30mm including ABS housing.
Available codes
| Product name | Codification |
| PS2033 | fixed 433.92MHz |
| PSR2033 | keeloq rolling 433.92MHz |
| PTR2033 | keeloq rolling 868.3MHz |
