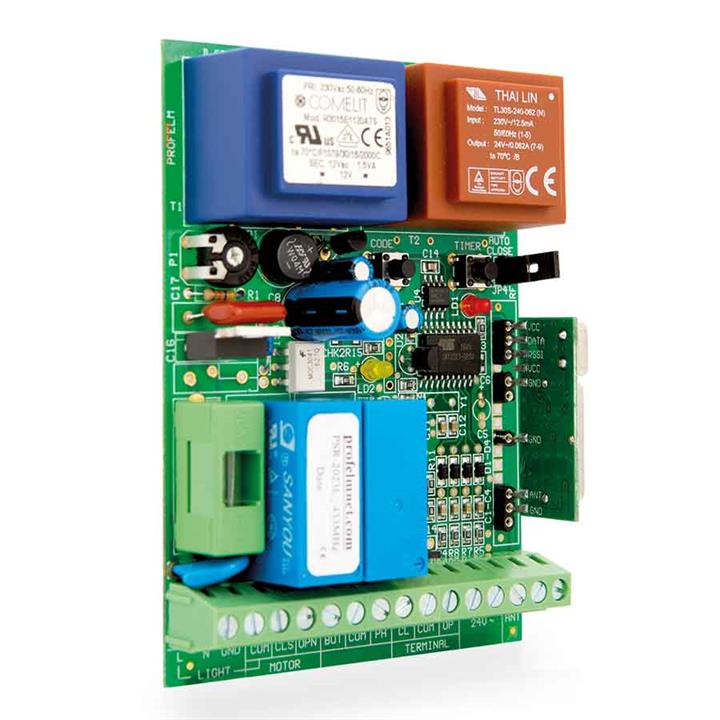

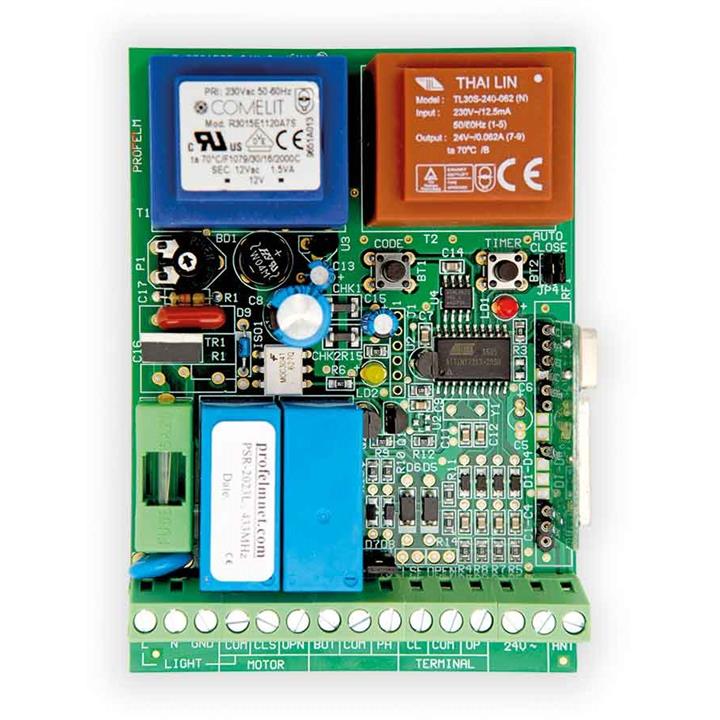

Control board for sliding gate motor up to 1000 watt
2023 is simple control board 230VAC suitable for sliding gate motor up to 1000 watt. Simple and user-friendly. 20 or 80 transmitters can be stored.
Main functions
- External button N.O contact for up to 100m external activation
- Photocell N.C. contact input at 24VAC/1,1VA
- Separate limit switch inputs for the motor
- Adjustable electronic MOTOR torque
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature: Smart auto-close timer
- Motor operating time: Programmable from 1 to 180 seconds
- Provides filters for the external noises
- Working temperatures: -20oC to + 60oC

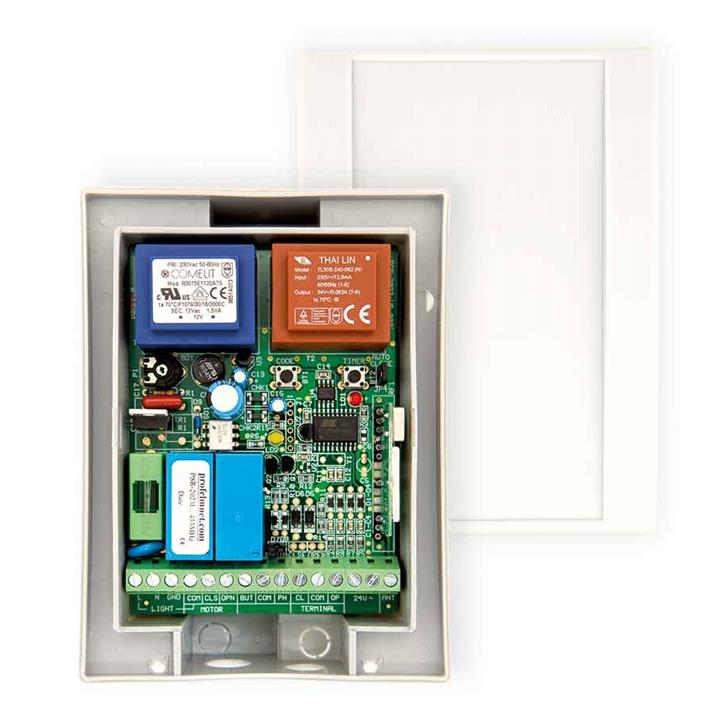

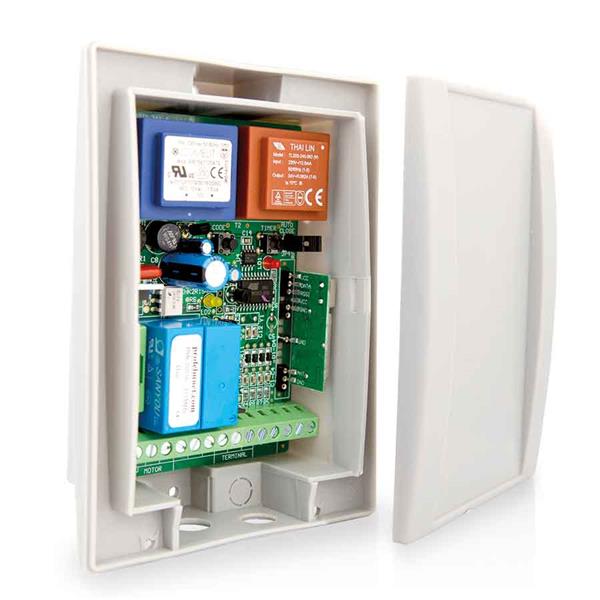

- Size: 111mm X 82mm X 30mm including ABS housing
Available codes
| Product name | Codification |
| PS2023 | fixed 433.92MHz |
| PSR2023 | keeloq rolling 433.92MHz |
| PTR2023 | keeloq rolling 868.3MHz |
