5033

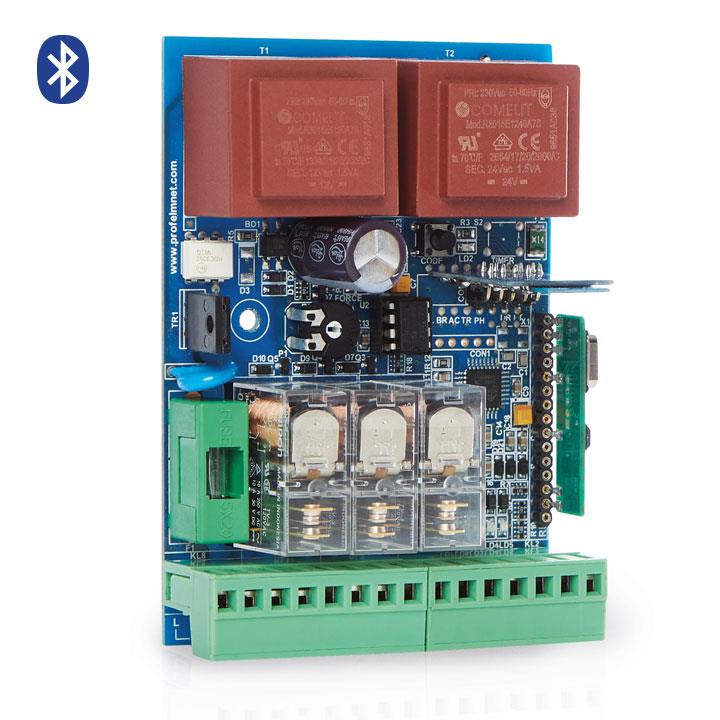

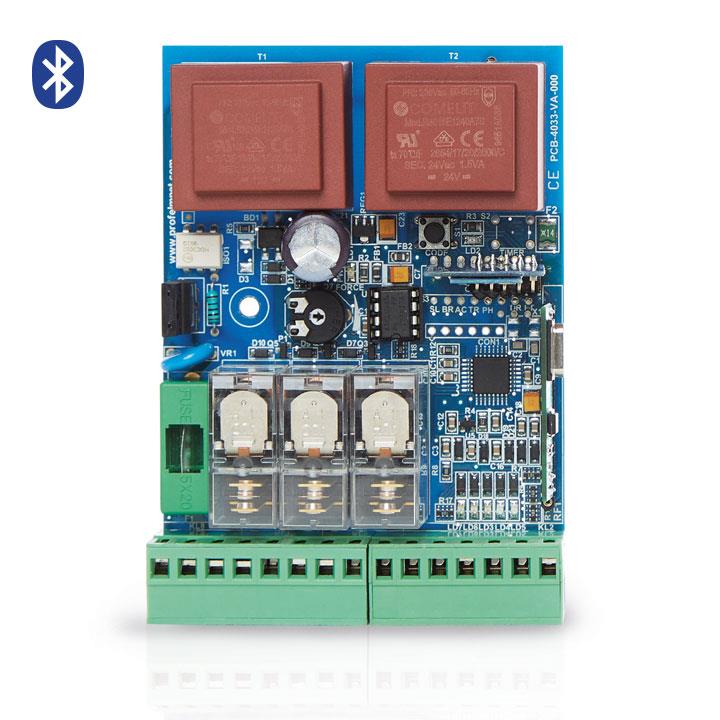

Bluetooth control board for rolling shutter up to 1200 watt

Series 50 is a complete series of PROFELMNET control boards, with integrated Bluetooth technology. Compatible with Profelmnet Easy Tech application that is available in IOS and Android. The installer is able to access and adjust all the functions of the control board through the smartphone, tablet or laptop.

ProfelmNet

Technical data

Power Supply 230VAC /50 Hz

Max Motor Power 1200W

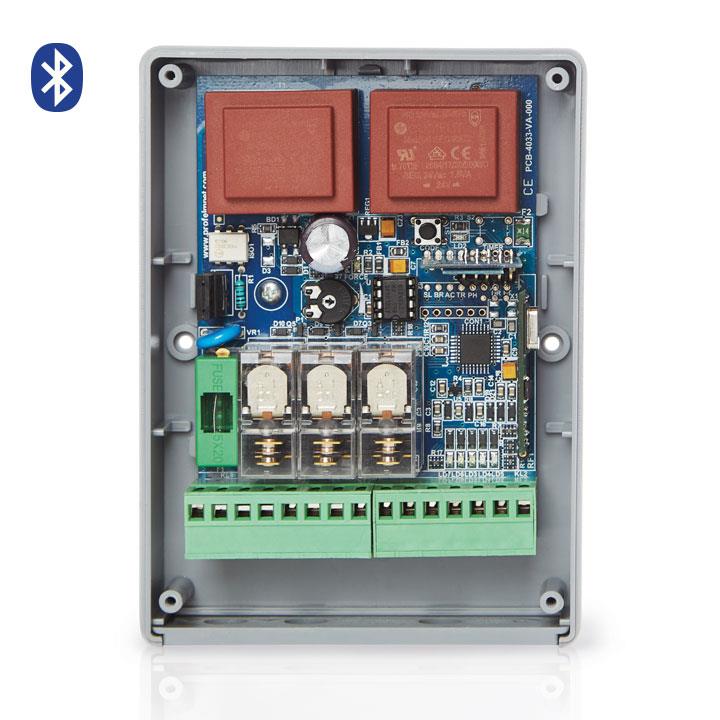

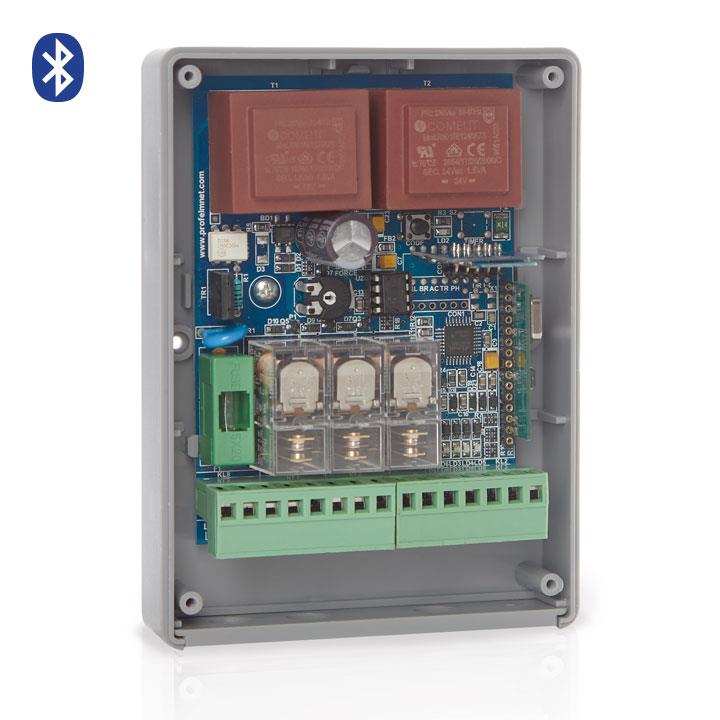

Box Dimensions 9.5cm X 4.5cm X13cm

Control board Dimensions 7.5cm X 3cm X10.5cm

Fuse 230VAC 5Α

Fuse 24VAC 150mA

Blinker Light power supply  230VAC

Photocell power supply 24VAC/100 mA

Remotes Memory 300 χειριστήρια

Temperature  -20oC + 60oC

ProfelmNet

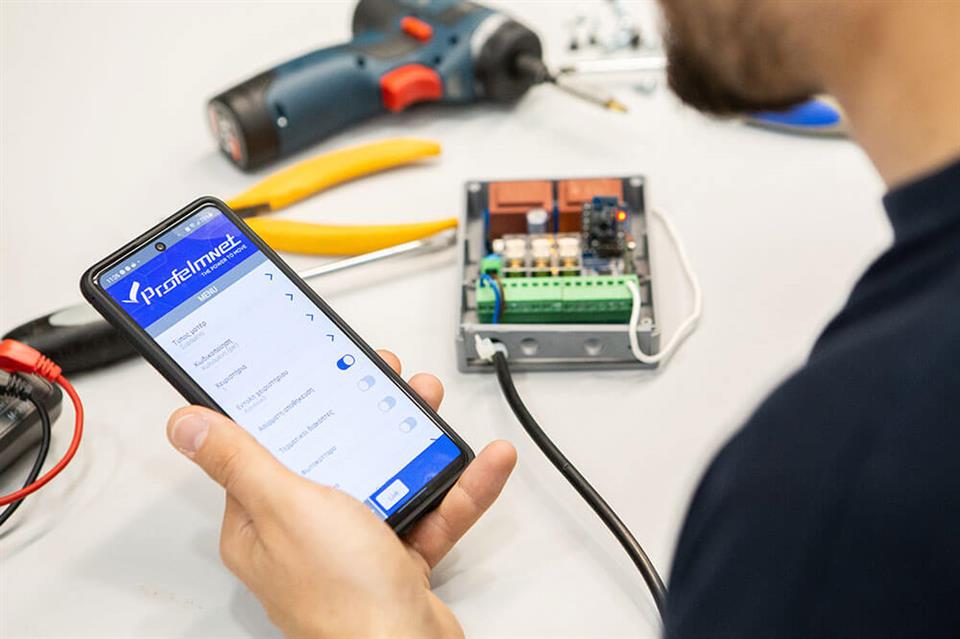

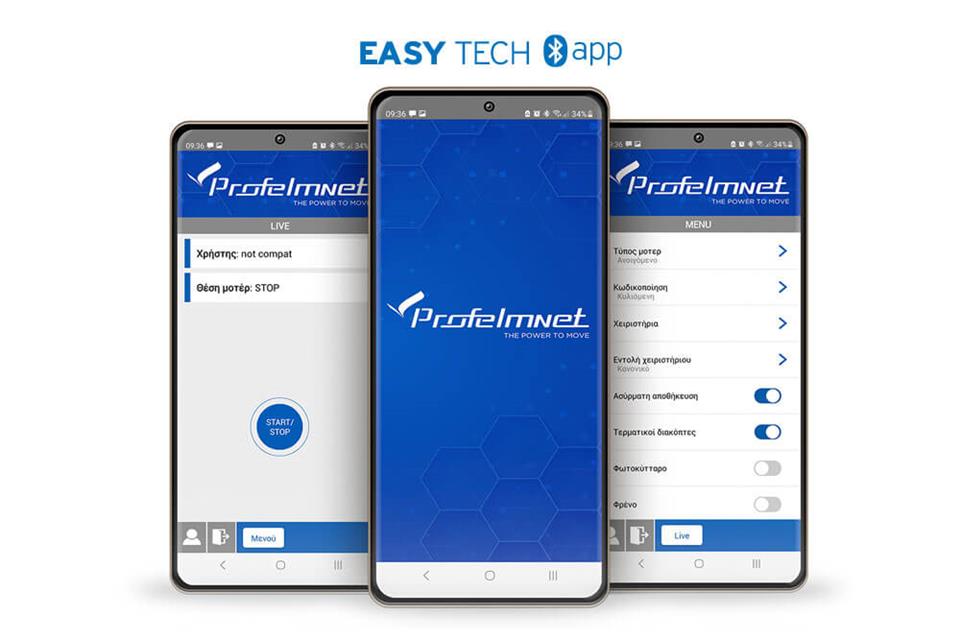

Easy Tech Application

ProfelmNetAccessories

Enrich the product with the appropriate accessories, giving it more functionality and features.
