Access control
PARK-PLUS
Community/heavy use barrier

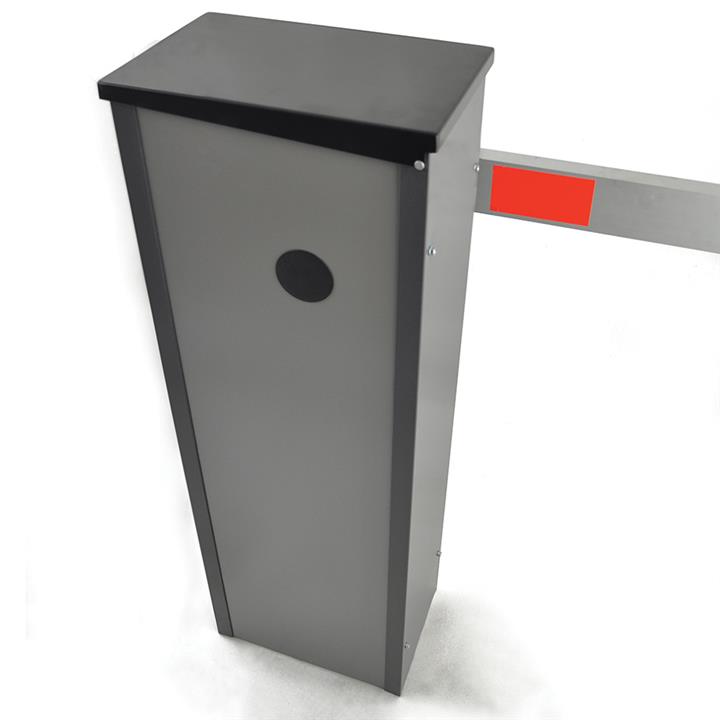

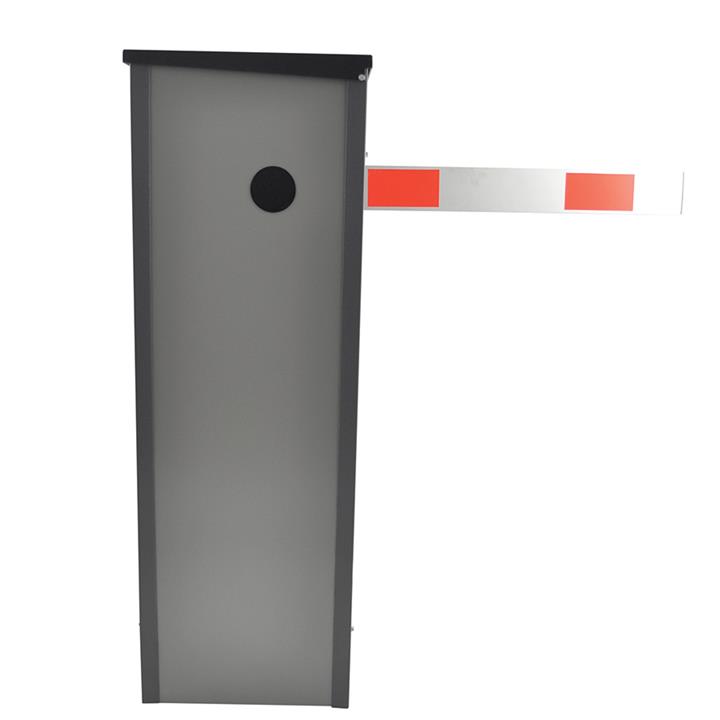

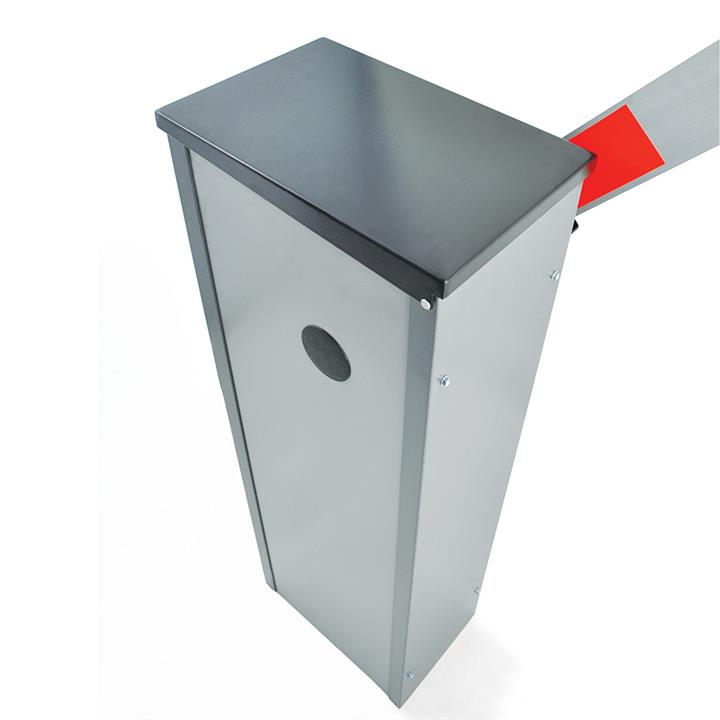

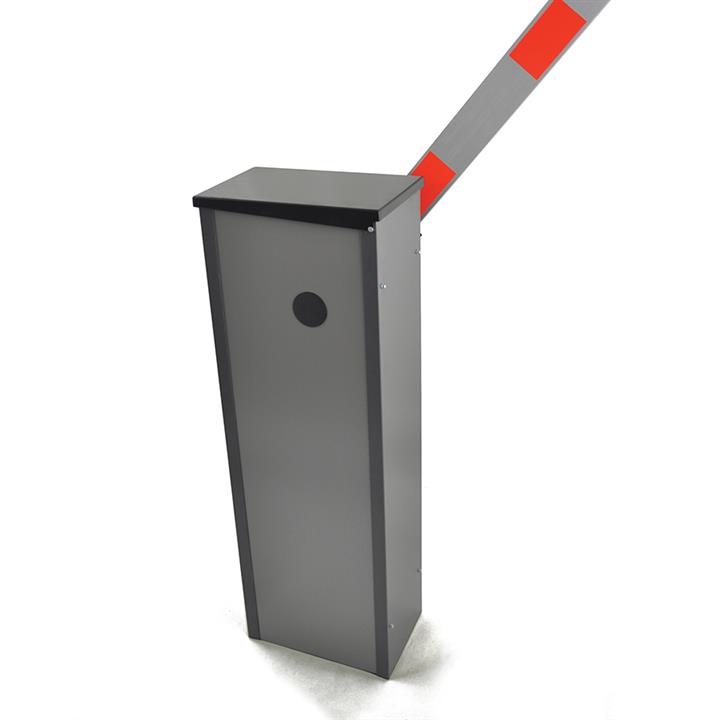

Park-Plus is a road barrier for residential and multi-users driveways up to 6 m. A full-galvanized aluminium body, an easy emergency release handle with safety micro-switch and an adjustable balancing spring system are its main charactrisitcs. Embedded Profelmnt control panel for intense and heavy use.
Main motor functions
- Power supply 230V/ 50Hz
- Motor power 200W
- Class IP protection IP 44
- Available booms 3,4,6 meters
Main control panel functions
- External button N.O contact,for opening only
- Photocell N.C. contact input at 24VAC/1,1VA
- Separate limit switch inputs for the motor
- Adjustable electronic motor torque and adjustable decelaration seperately
- Automatically change motor's direction automatically
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature: Smart auto-close timer
