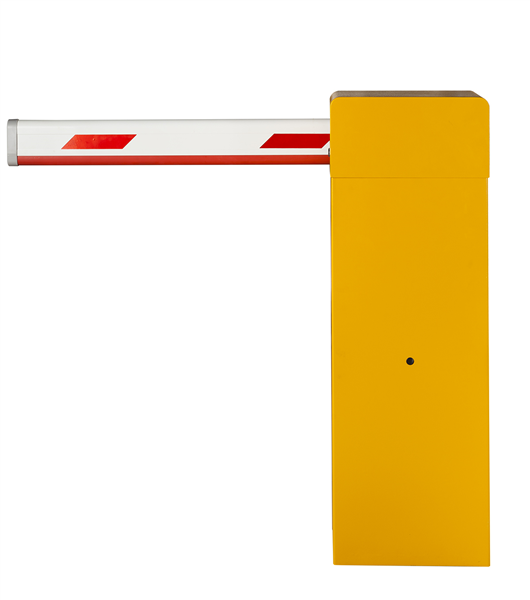

GOLD-PARK

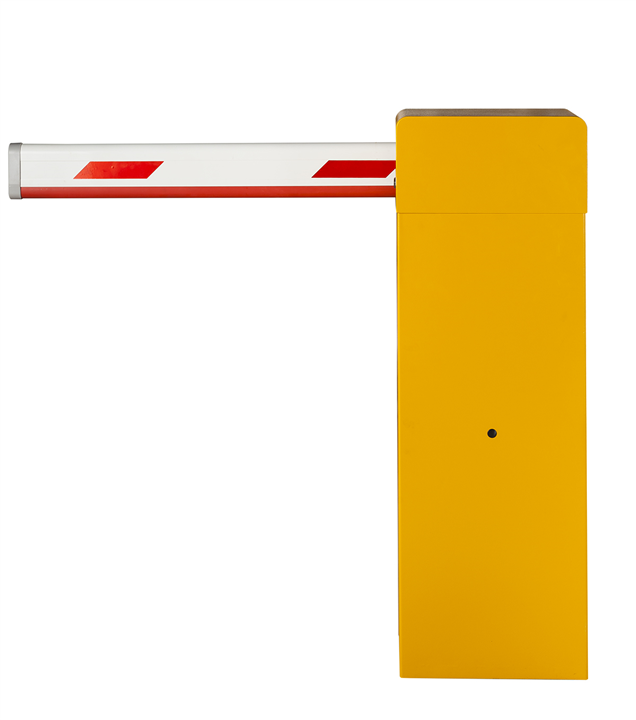

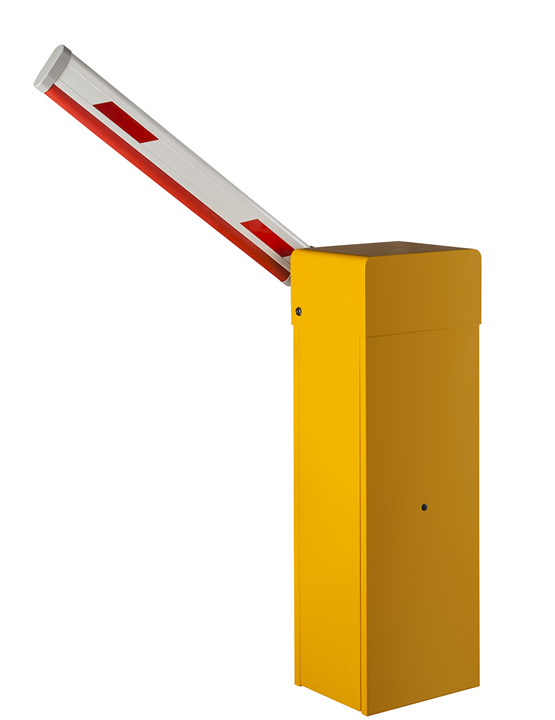

Automatic boom gate up to 6 meters

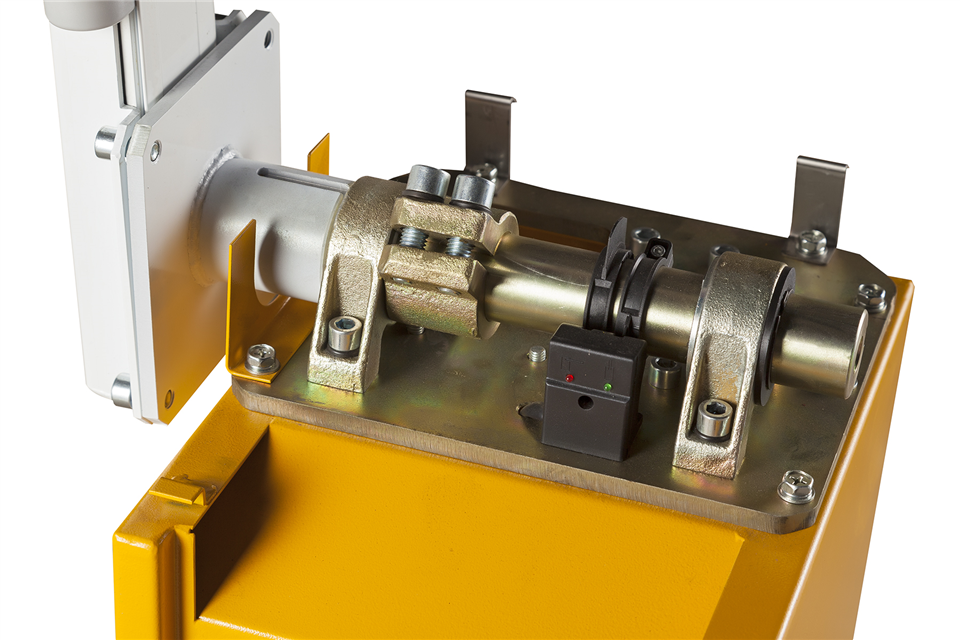

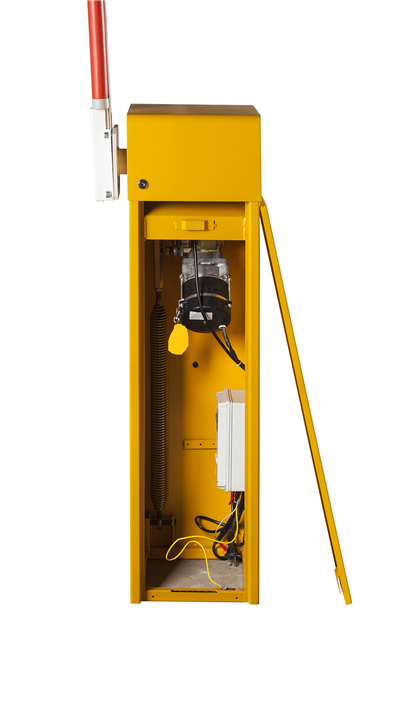

Gold-Park is strength and speedy. It has compact design, attractive appearance, low noice, safe and reliable performance. The drive parts have a stell unibody structure. A unique internal spring counterbalance mechanism aids the action of the boom gate. Manual operation in case of power faiure. Embedded Profelmnet control panel for heavy and intense use.

ProfelmNet

Main motor characteristics

  • Power supply: 230V/50Hz
  • Motor Power : 150W
  • Noise : <62dB
  • Opening time : 5,5 sec
  • Cycles/day :  3600

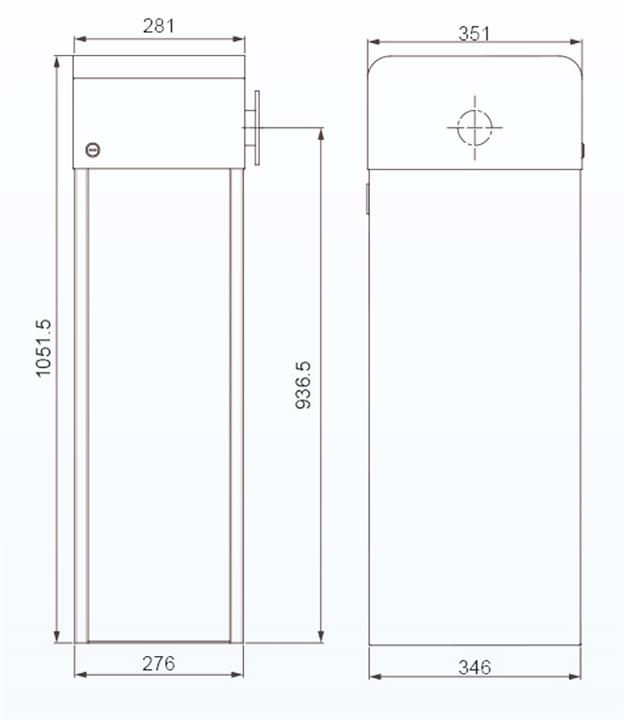

  • Measurement :  281mm X 351mm X 1052mm
ProfelmNet

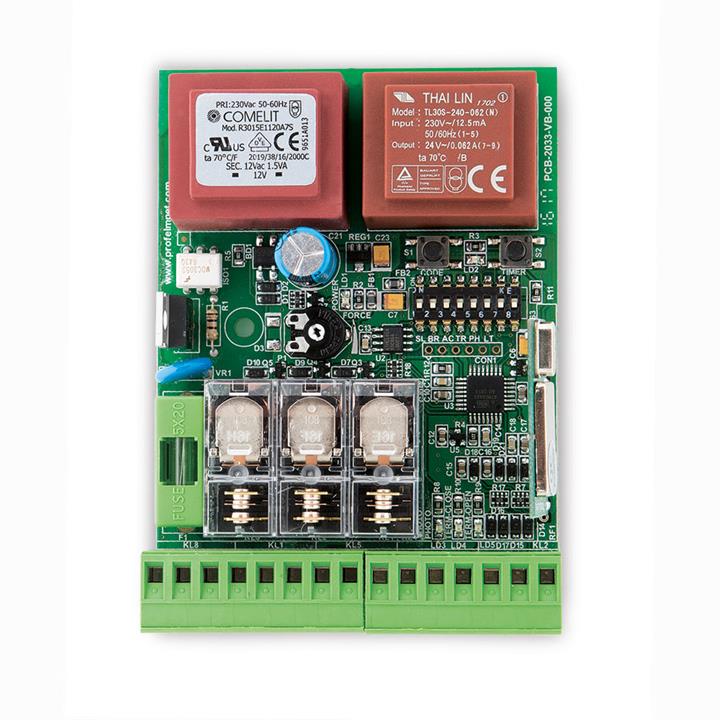

Main control panel functions

  • External button N.O contact,for opening only
  • Photocell N.C. contact input at 24VAC/1,1VA
  • Separate limit switch inputs for the motor
  •  Adjustable electronic motor torque and adjustable decelaration seperately
  • Automatically change motor's direction automatically
  •  Output for flashing light 230VAC/25W standard with or without intermittence
  •  Auto-close feature: Smart auto-close timer

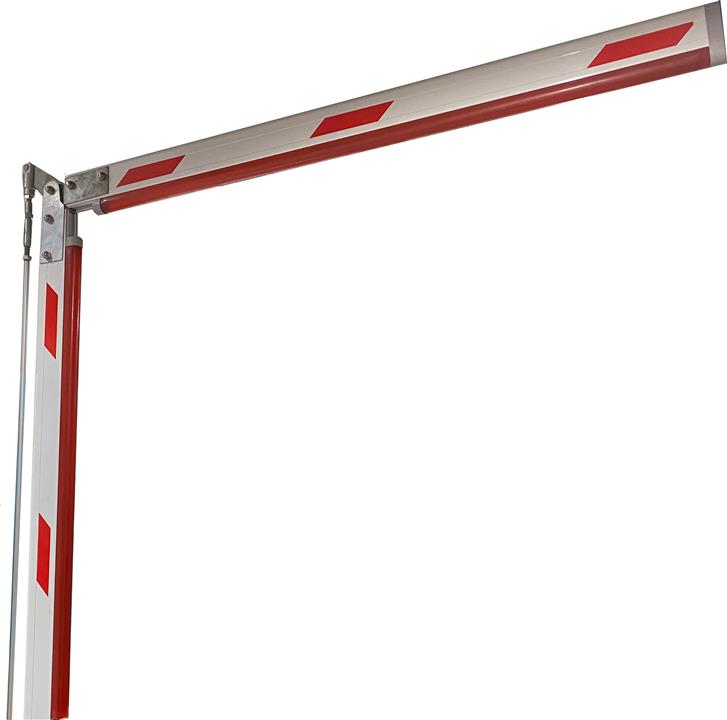

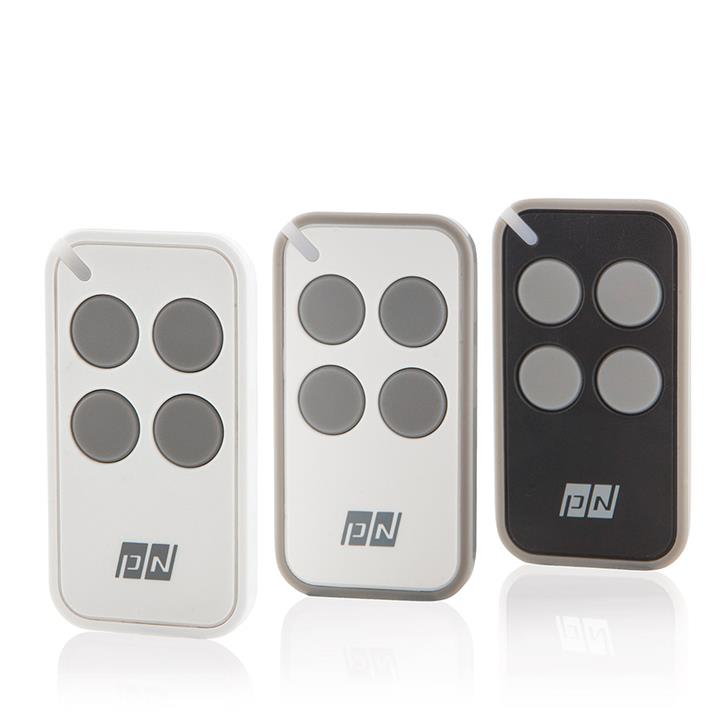

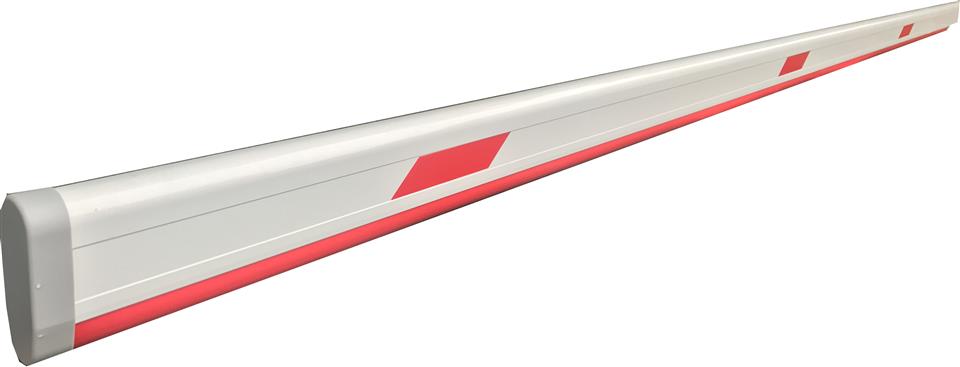

ProfelmNetAccessories

Enrich the product with the appropriate accessories, giving it more functionality and features.
