3670

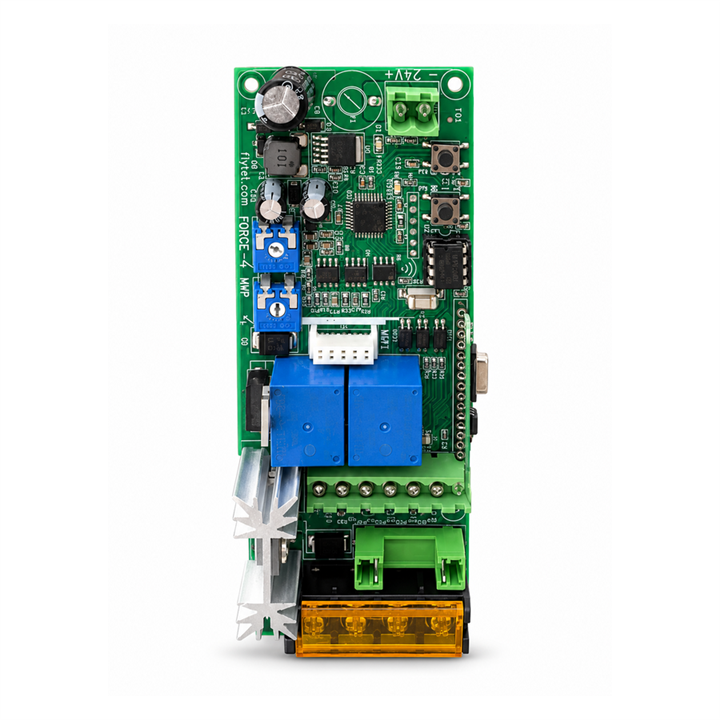

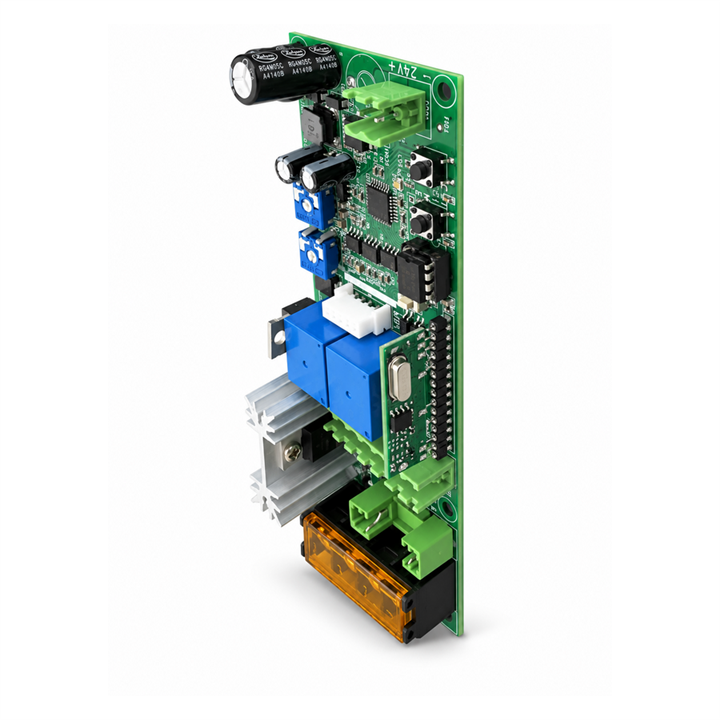

Control Board for Pergolas motor 24VDc
The 3670 is control board for pergolas with 24V DC motors, ideal for applications using linear actuator motors. It provides smooth opening and closing control, travel-time adjustment, force adjustment and obstacle detection sensitivity settings.
Featuring a built-in 433.92MHz receiver, capacity for up to 300 remote controls, inputs for open, close and step-by-step push buttons, as well as an LED lighting output, it is a complete solution for every electric pergola.
Available as the 3670 version with RF receiver and as the 3670W version with integrated WiFi, enabling control through the Tuya Smart / Smart Life app.
Technical data
Operating Temperature: -20°C to +55°C
Control Unit Power Supply: 24V DC
Motor Type: 24V DC
Maximum Motor Current: 1.5A
Maximum Motor Power: 60W
Maximum LED Lighting Power: 200W
Built-in Radio Receiver: 433.92MHz
Maximum Number of Remote Controls: 300
Open Push-Button Input: Yes
Close Push-Button Input: Yes
Step-by-Step Push-Button Input: Yes
Antenna Input: Yes
Force Adjustment: Yes
Obstacle Detection: Yes
Enclosure Protection Rating: IP56
Control Board Dimensions: 14.8 × 5.08cm

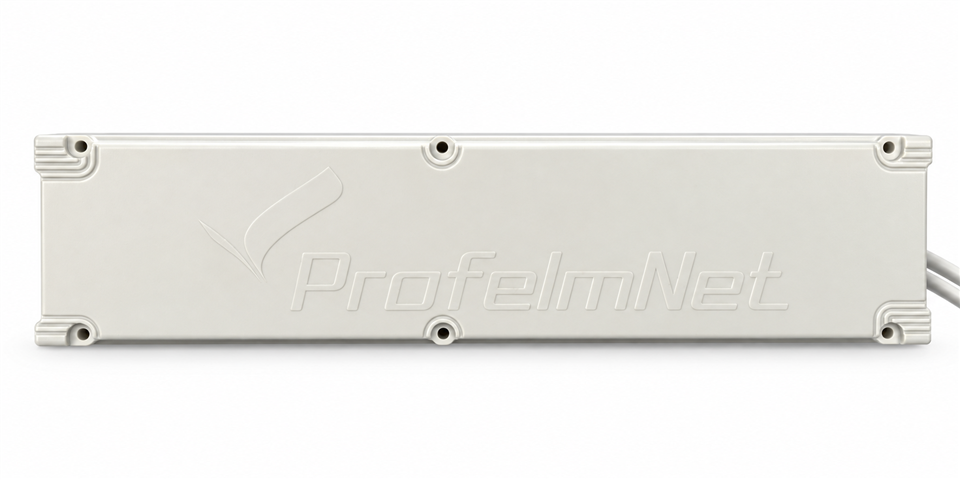

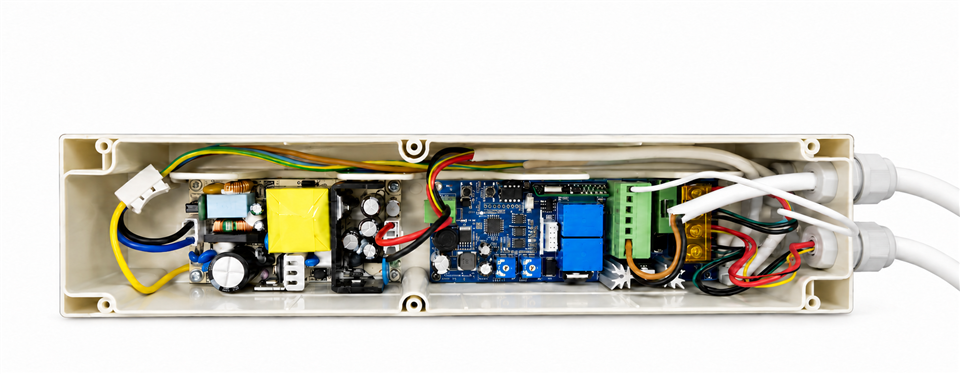

Enclosure Dimensions: 33 × 7.5 × 8cm
WiFi Users: Up to 20 users
Compatible Apps: Tuya Smart Life, Smart Living
WiFi Protocol: IEEE 802.11, 2.4GHz / 5GHz
