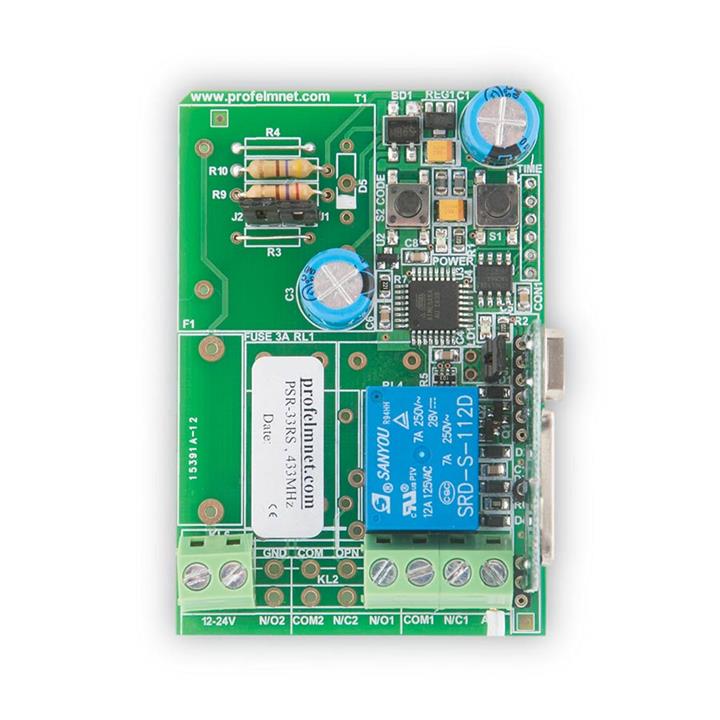

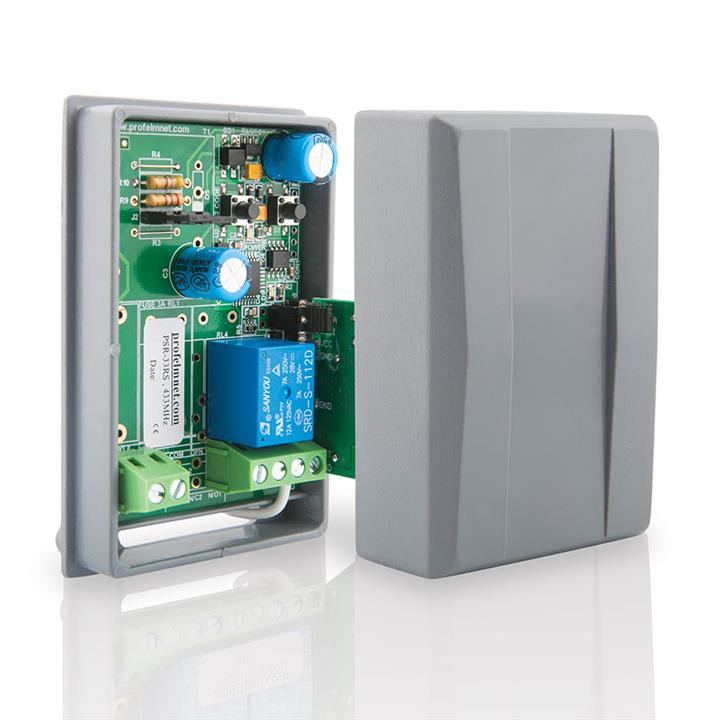

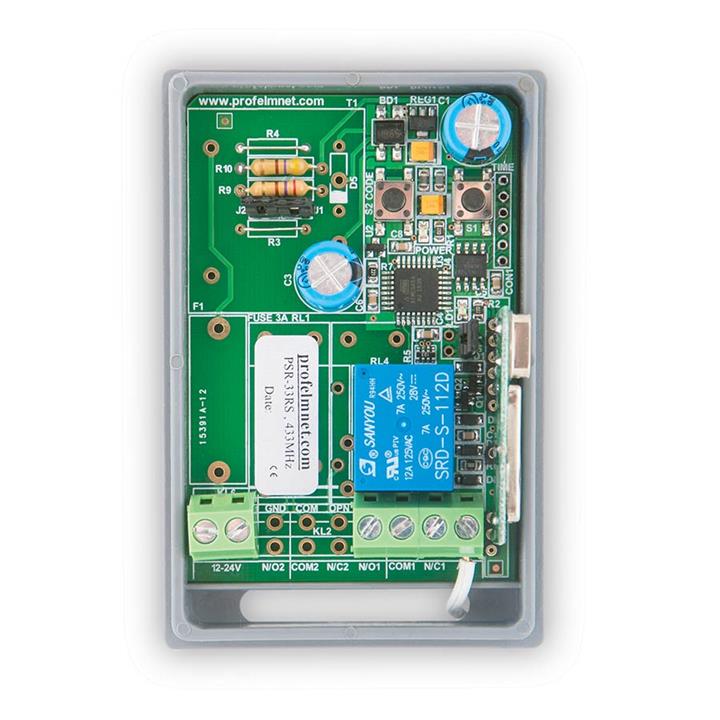

33RS one channel receiver

One channel receiver 12/24VAC/DC, 433,92MHz

33RS is the new one channel receiver, 12VAC/DC or 24 VAC/DC. It is easy to be installed and controls high RF frequencies.


Main functions

  • Absorption 10mA max. at stand-by and 25mA on relay activation
  • Operation selectable PUSH-ON or PUSH ON-OFF    jumpers
  •  Power supply 12-24V AC/DC in different models.
  • Operating frequency 433,92 MHz,
  • Range from 30 to 100 meters depends on the environment
  • Sizes: 82X59X30mm
  •  Working temperatures: -15οC to +60ο C



Available codes

Product name    Codification  Compatible Transmitters
PS33RS     fixed 433.92MHz  PSD-36T, PS-46T, LP-56T
PSR33RS keeloq rolling 433.92MHz PSR-38T, PSR-46T, PSR-25T, PSR-15T, S-18T,LP-56T
PN33RS pn rolling 433.92MHz PN-46T, LP-56T
