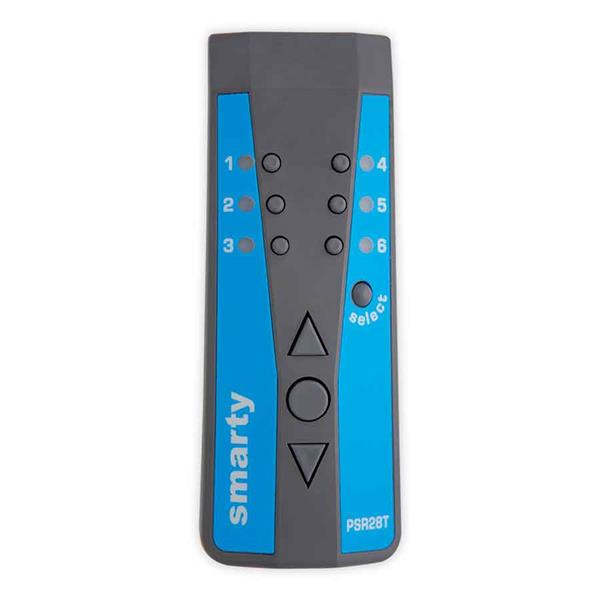

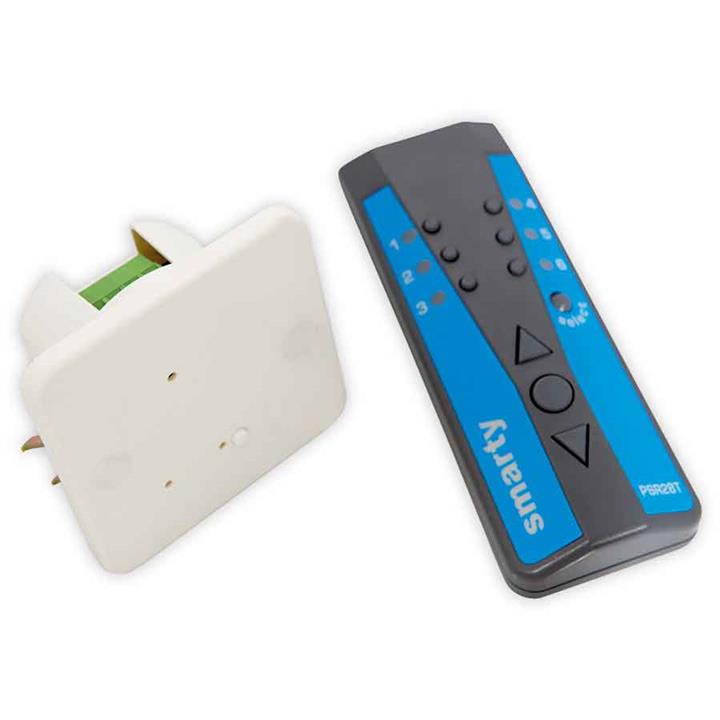

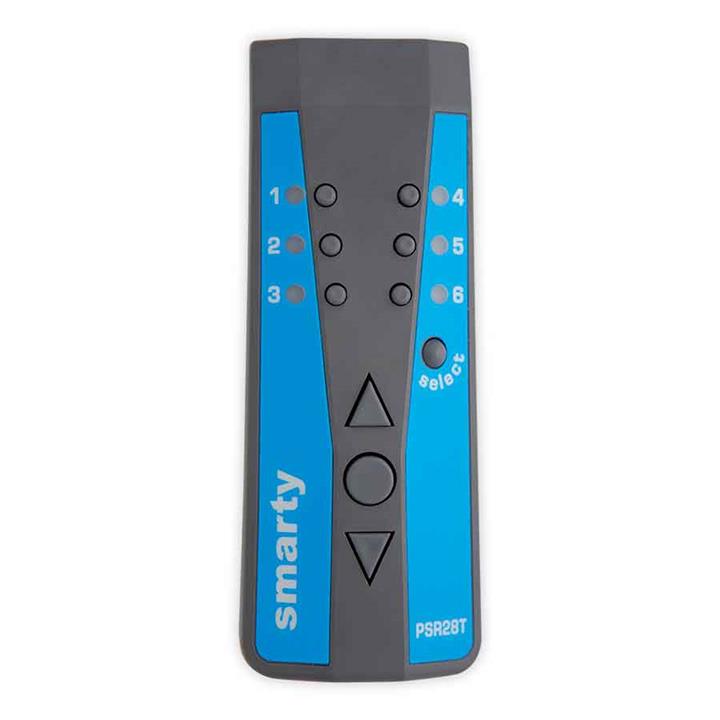

PSR-28T

Multi channel rolling code transmitter at 433,92MHz

PSR-28T is rolling code transmitter at frequency 433,92MHz. Suitable use up to 18 different channels. Internal usage, remoting many roller shutters or lights

ProfelmNet

Main functions

  • Power supply 12V battery V23A.
  • Working voltage from 6,5V (low battery) to 12V
  • Operating frequency 433,92MHz with a saw filter
  • Range from 30 to 150 meters
  • Number of channels 18 channels OR 6 different channels with UP/STOP/DOWN each channel, selected by any combination
  • Absorption 15 mA max. with square wave modulation
  • Irradiated power 0,20mW to 0,30mW
  • Working temperatures -15οC to +60ο C
  • Codification keyloq unique rolling code codification with a customer dedicated code included
  • Size 12X 5X 2, shock resistant ABS
