WHEELER

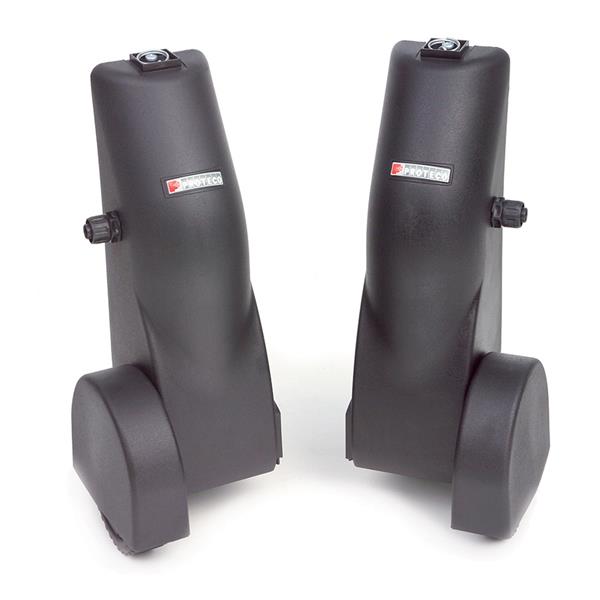

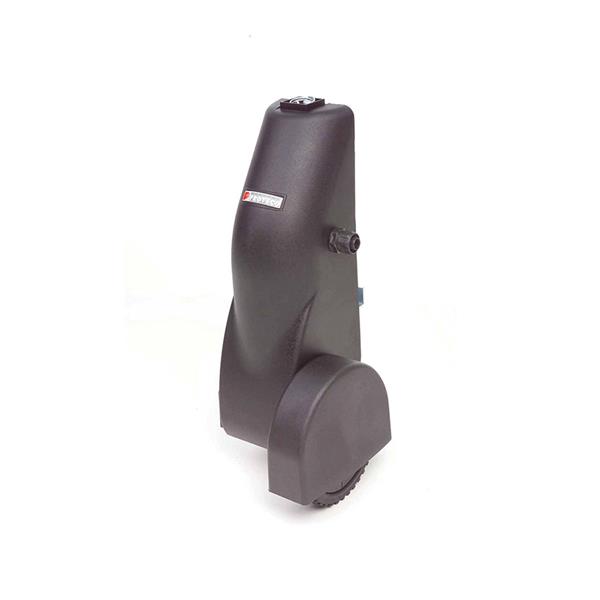

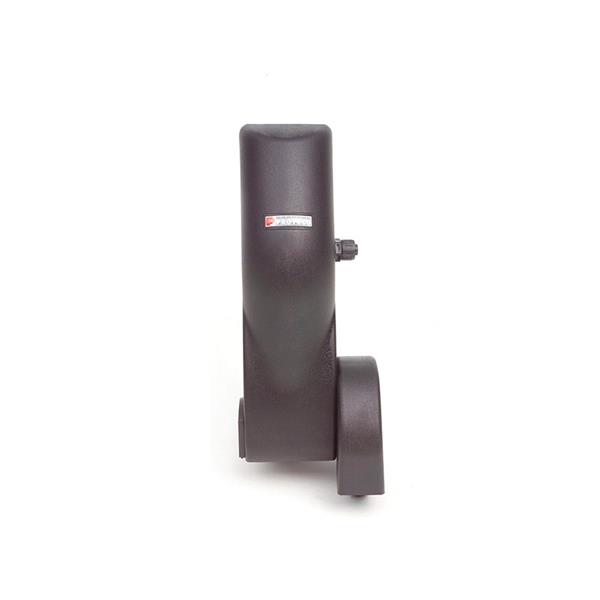

Wheel-driven electromechanical opener for swing gates, prewired Profelmnet control panel.

Wheeler is electromechanical opener for swing gates. Quick, simple istallation on the leaf edge pushes and pulls the gate to an unilimited opening angle. An ideal solution for automating long light leaf gates or where the pillar dimensions restrict the range of the automation appicable. Embedded Profelmnet's control panel, offering the most reliable solution for the swing gate.

ProfelmNet

Main motor technical data

  • Maximum doοr weight up to 150 kg
  • Motor power   230V/280W
  • Maximum thrust  11N
  • Motor rpm  1400
  • Protection rating  IP44
ProfelmNet

Main control panel functions

  • Separate limit switch inputs for the motor
  • Motor brake function. It is recommended for heavy motors
  • Adjustable electronic motor torque and adjustable decelaration seperately
  • Separate limit switch inputs for the motor
  • Automatically change motor's direction automatically
  • External button: N.O contact
  • Photocell contact input at 24VAC/1,1VA
  • Adjustable electronic MOTOR torque
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature: Smart auto-close timer
  • Motor operating time: Programmable from 1 to 180 seconds
ProfelmNetAccessories

Enrich the product with the appropriate accessories, giving it more functionality and features.
