IDRO

Underground motor for swing gates up to 3,00 m door leaf, embedded Profelmnet control panel

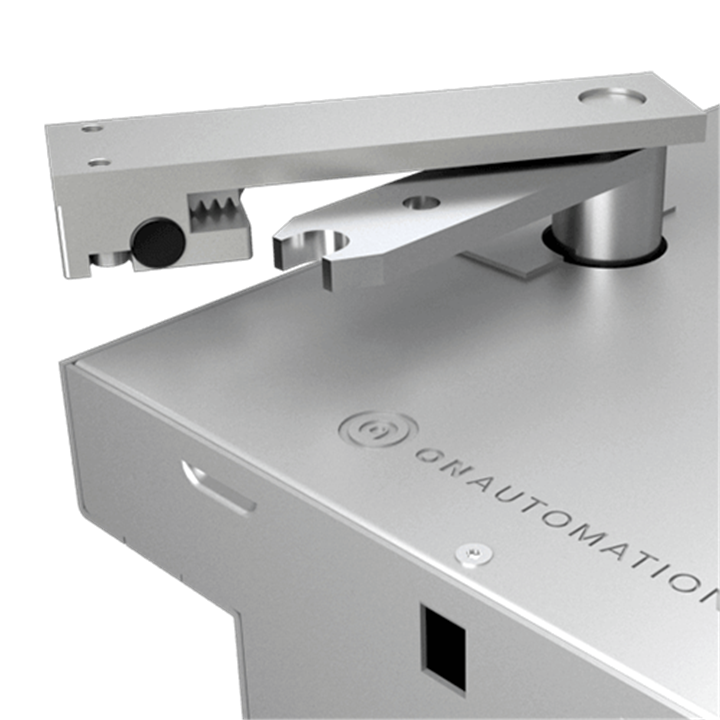

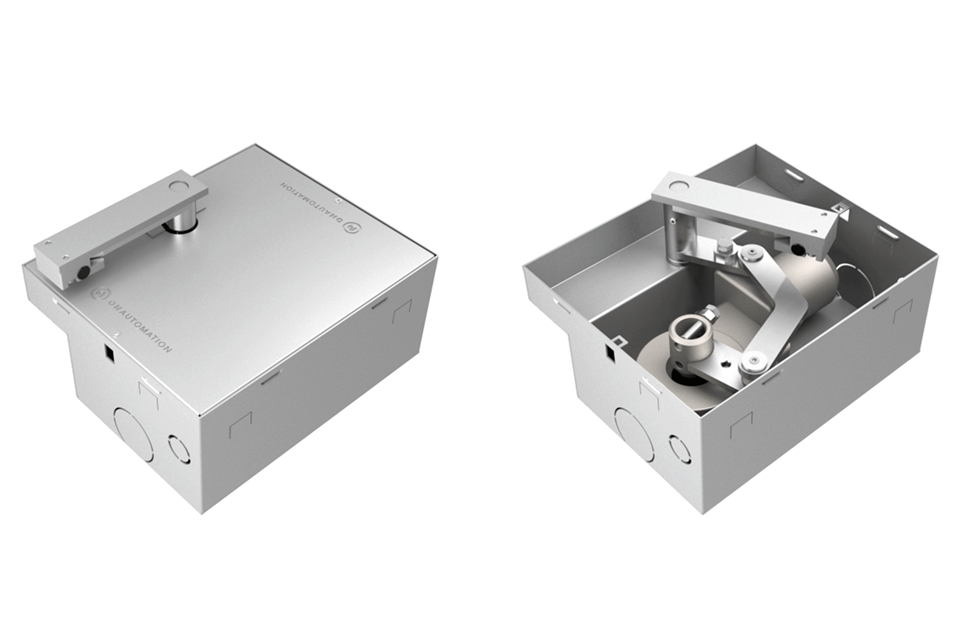

IDRO is electromechanical underground mounted opener for swing gates up to 3m. The aluminium gear box motor is completely sealed in underground chambers to ensure the maximum reliability and resistance over the time. Embedded Profelmnet control panel, offering the most reliable solution for the swing gate.

ProfelmNet

Main motor technical data

  • Maximum doορ leaf up to 3,00 meters
  • Maximum doορ weight up to 350 kg
  • Motor power   230V/300W
  • Maximum thrust  350N
  • Motor rpm  1400
  • Protection rating  IP44
ProfelmNet

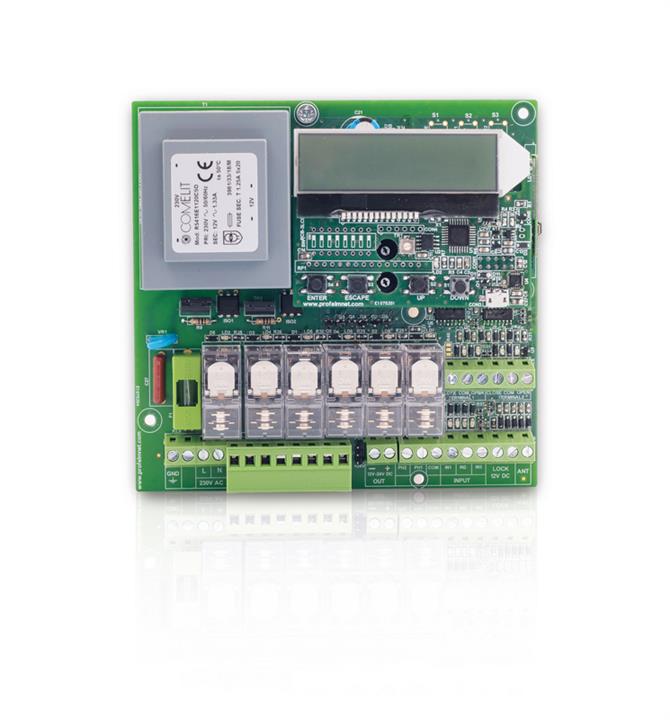

Main control board specification

  • Separate limit switch inputs for the motor
  • Motor brake function. It is recommended for heavy motors
  • Adjustable electronic motor torque and adjustable decelaration seperately
  • Separate limit switch inputs for the motor
  • Automatically change motor's direction automatically
  • External button: N.O contact
  • Photocell contact input at 24VAC/1,1VA
  • Adjustable electronic MOTOR torque
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature: Smart auto-close timer
  • Motor operating time: Programmable from 1 to 180 seconds

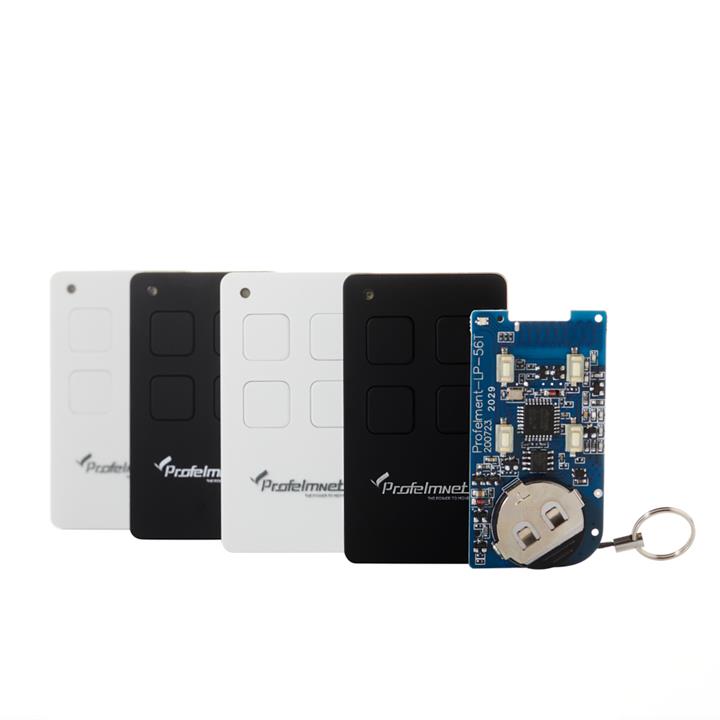

ProfelmNetAccessories

Enrich the product with the appropriate accessories, giving it more functionality and features.
