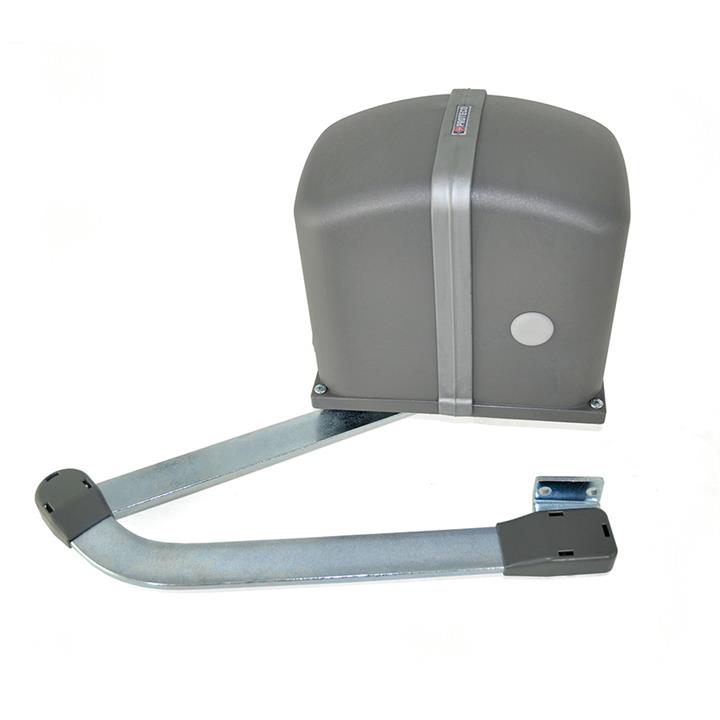

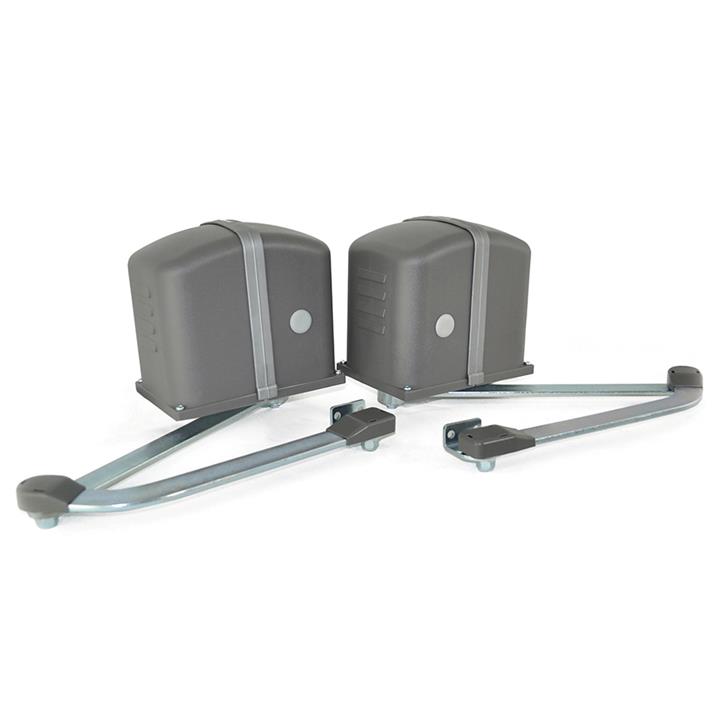

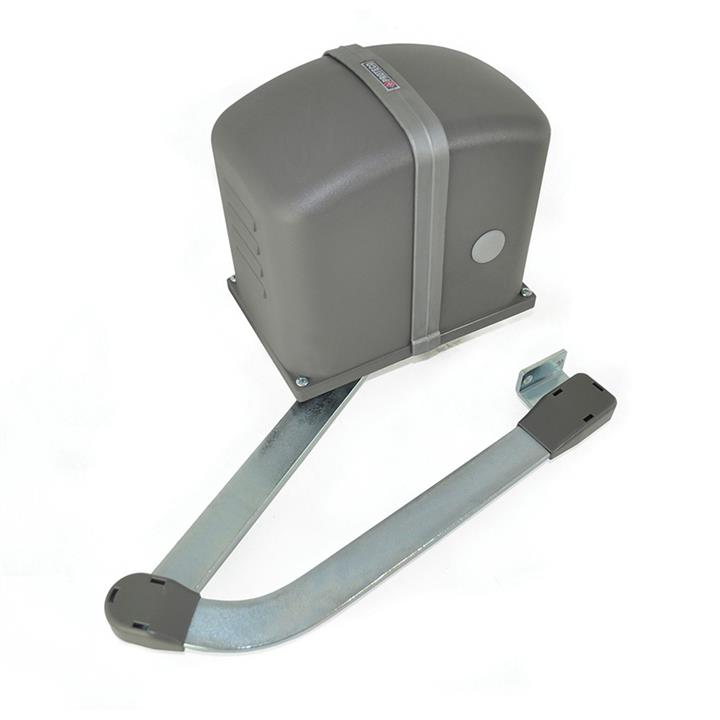

ADVANTAGE is electromechanical locked opener with articulated arm for swing gates up to 2m. It has adjustable electric limit switches to safety regulate the cycles even for the lightest of gates. Ideal for large pillars, opening inwards and outwards, the motor comes complete with spring mounted release systems for quick and easy manual operation in the event of power failures. Embedded Profelmnet control panel, offering the most reliable solution for the swing gate.
Main motor technical data
- Maximum doορ leaf up to 2,00 meters
- Maximum doορ weight up to 250 kg
- Motor power 230V/300W
- Maximum thrust 280N
- Motor rpm 1400
- Protection rating IP44
Main control panel functions
- Separate limit switch inputs for the motor
- Motor brake function. It is recommended for heavy motors
- Adjustable electronic motor torque and adjustable decelaration seperately
- Separate limit switch inputs for the motor
- Automatically change motor's direction automatically
- External button: N.O contact
- Photocell contact input at 24VAC/1,1VA
- Adjustable electronic MOTOR torque
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature: Smart auto-close timer
- Motor operating time: Programmable from 1 to 180 seconds
- Indepentent deceleration during open and close for motor
- Provides filters for the external noises
