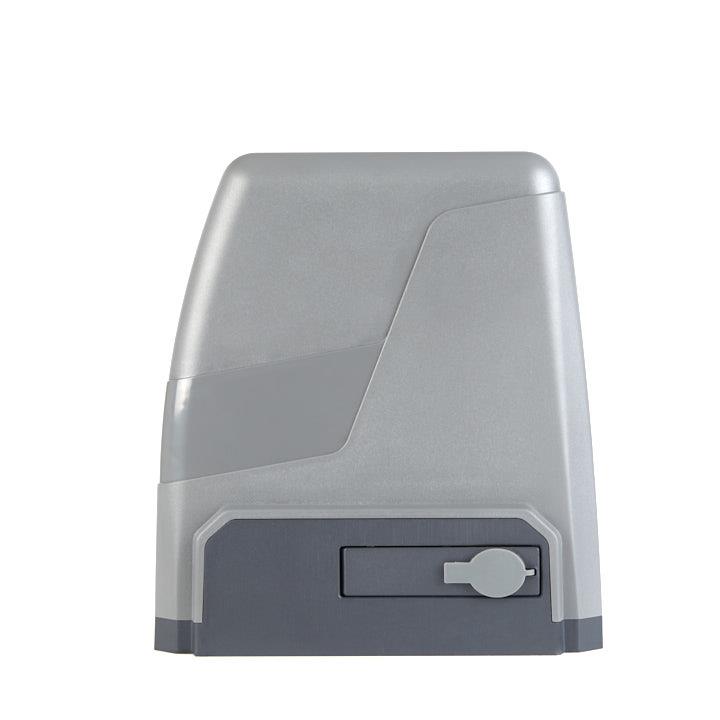

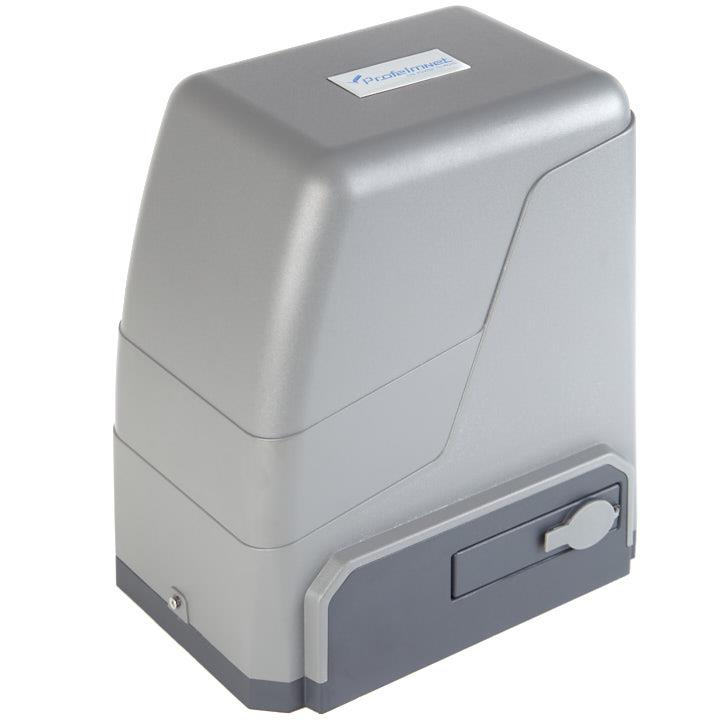

TRITON 8
Sliding motor for gates up to 800 kg, prewired Profelmnet control panel

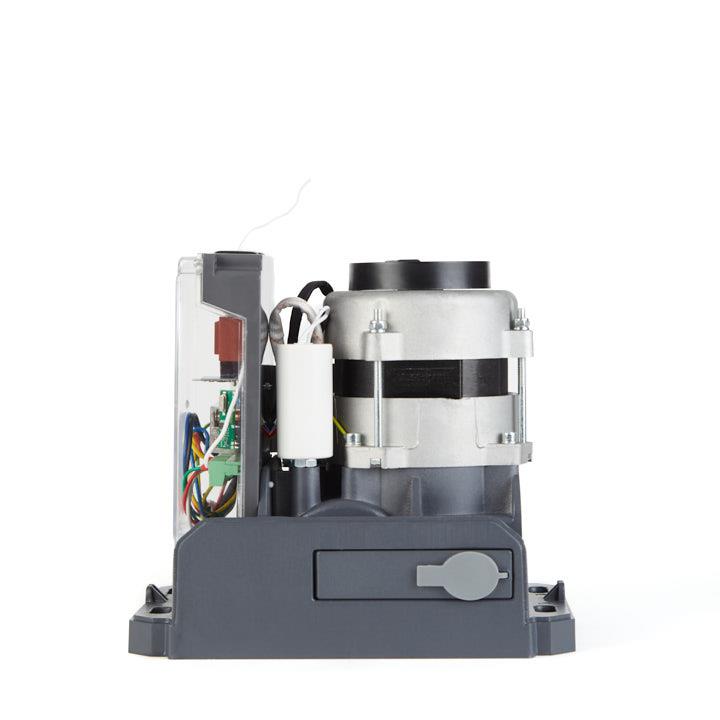

Triton 8 is a sliding gate motor. It is powerful, quiet, with a compact design. Perfect for either wrought iron or solid timber sliding gates, for maximum door weight up to 800 kg. Embedded the pre-wired Profelmnet's control panel, covering all requirements for the best function of the motor.
Technical data
- Maximum door weight 800 kg
- Motor power 230V/370W
- Opening time 11.00 - 13.00 meters / minute
- Motor rpm 1400
- Protection rating IP44
- Weight 16 kg

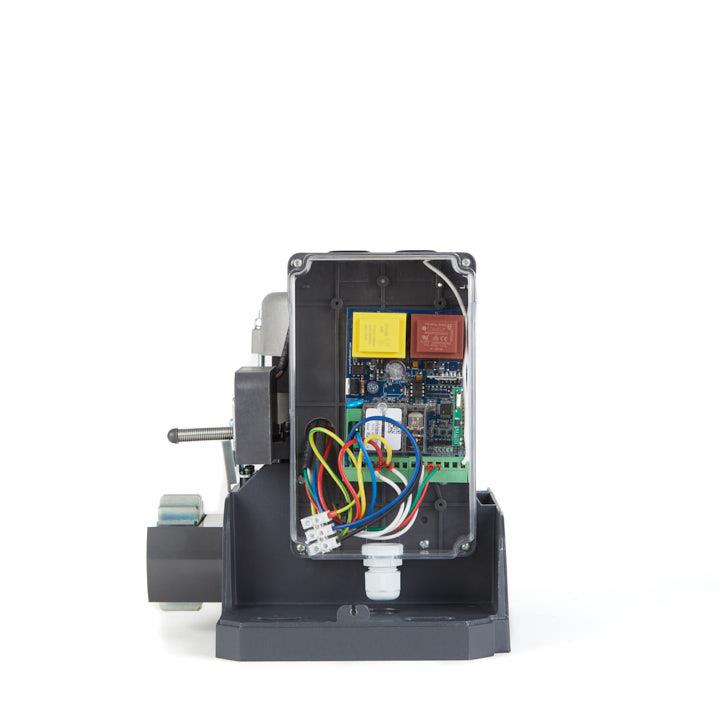

Main control board specifications
- Separate limit switch inputs for the motor
- External button: N.O contact
- Photocell contact input at 24VAC/1,1VA
- Adjustable electronic motor torque
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature: Smart auto-close timer
- Motor operating time: Programmable from 1 to 180 seconds
- After a power outage, the control panel checks if the door is close or open and it closes it automatically
- Working temperatures: -20 to +60 Celsius
