Control boards
5614

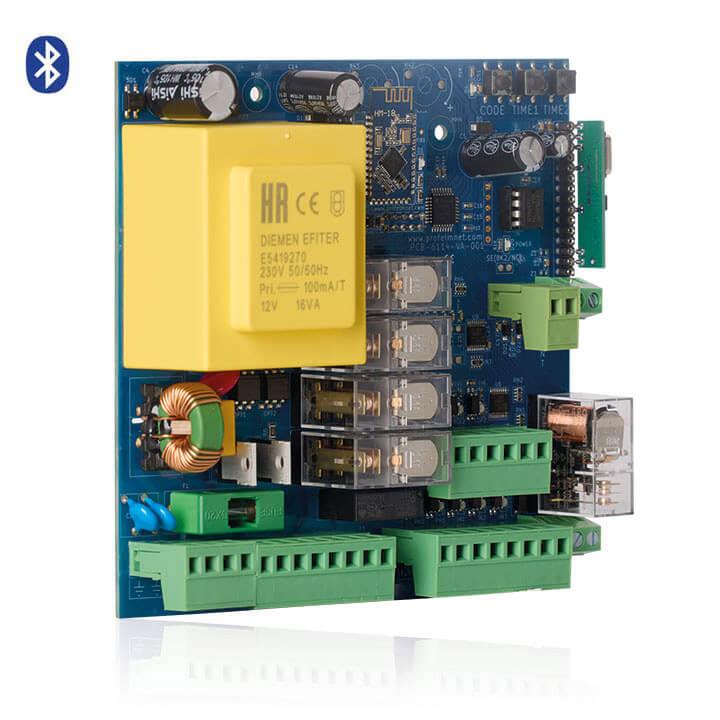

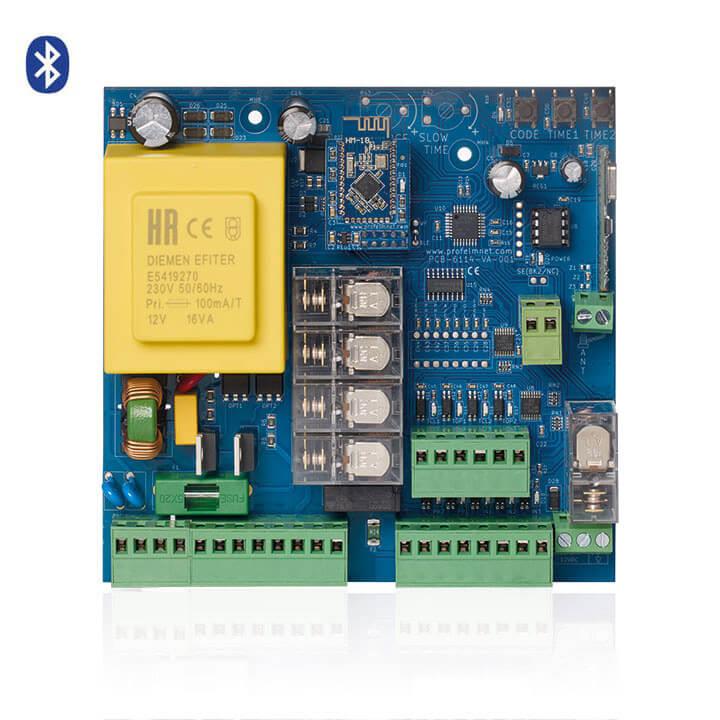

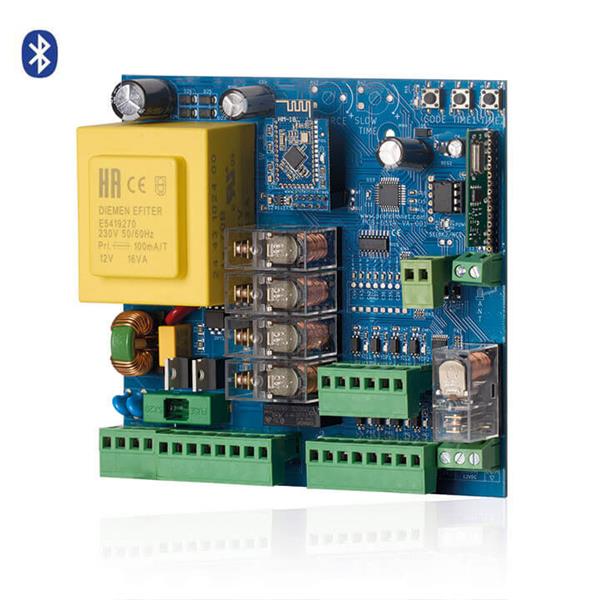

Bluetooth control board for double swing gates
Series 56 is a complete series of PROFELMNET control boards, with integrated Bluetooth technology. Compatible with Profelmnet Easy Tech application that is available on IOS and Android. The installer is able to access and adjust all the functions of the control board through smartphone, tablet or laptop. Improved in Design. New functions are available.
Technical data
Power Supply 230VAC /50 Hz
Max Motor Power 1400W

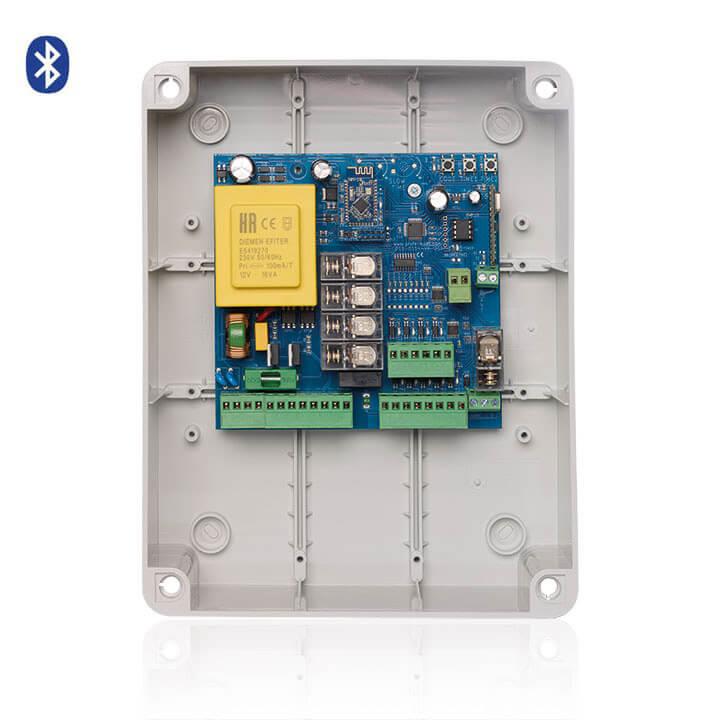

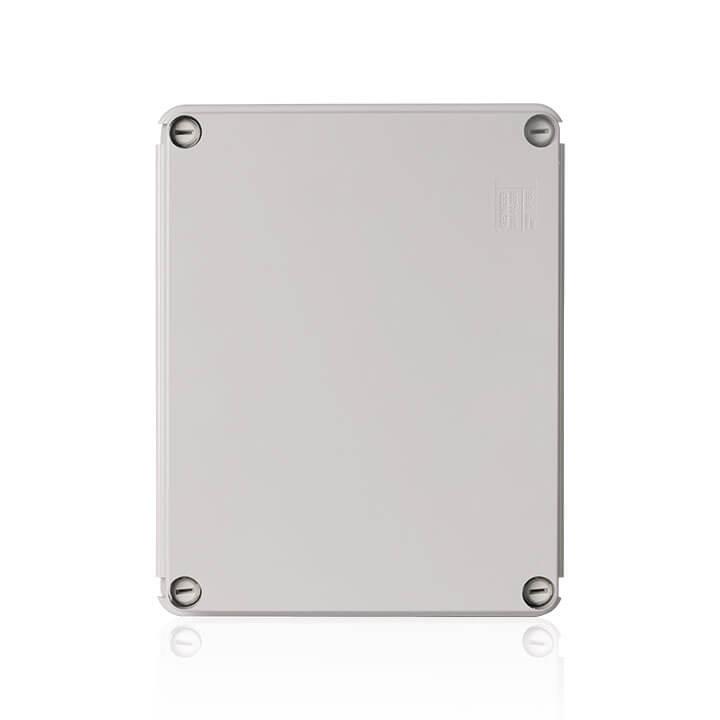

Box Dimensions 25cm X 19.5cm X10cm
Control board Dimensions 13cm X 13.5cm X4.5cm
Fuse 24VAC 200mA
Blinker Light power supply 230VAC/100W
Contact for Magnetic Loop YES
Contact for Safety Edge YES
Pedestrian Function YES
Photocell power supply 24VDC
Remotes Memory 300 remotes
Temperature -20oC + 60oC
Easy Tech Application
EASY TECH application is available on IOS and ANDROID.
https://apps.apple.com/gr/app/profelmnet-easy-tech/id1564236491?l=el
https://play.google.com/store/apps/details?id=net.rowega.profelmneteasytech
