3614

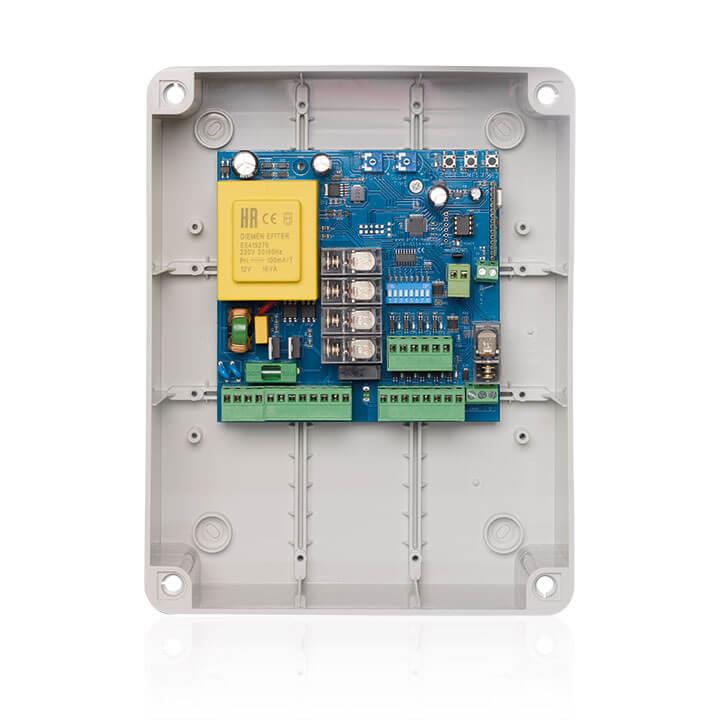

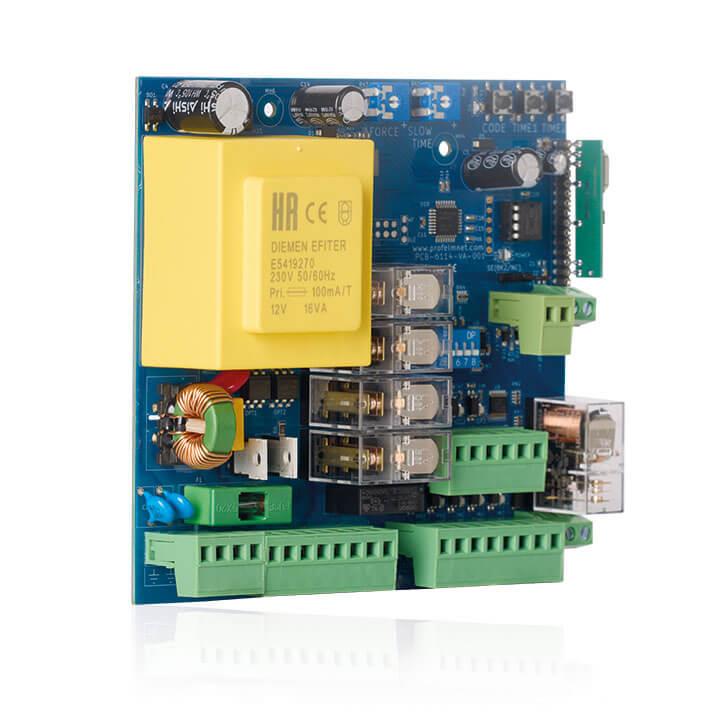

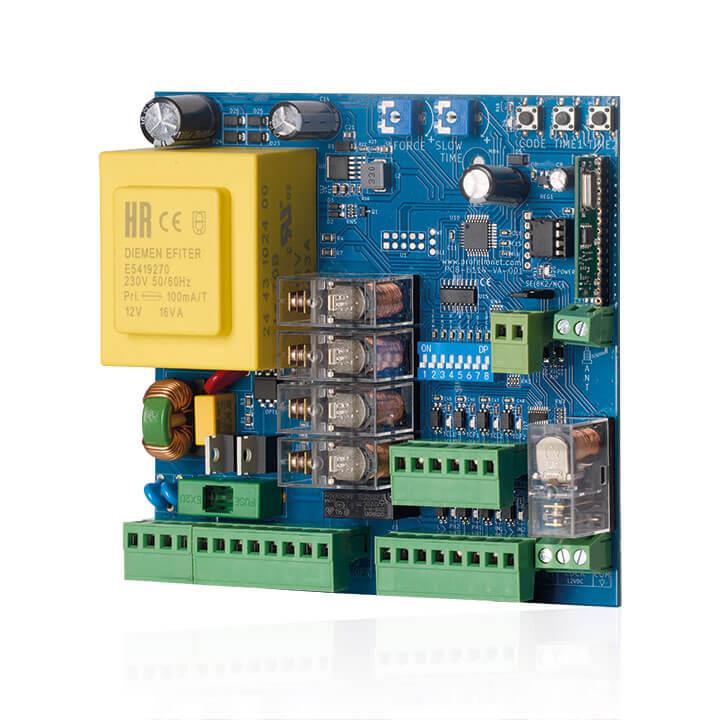

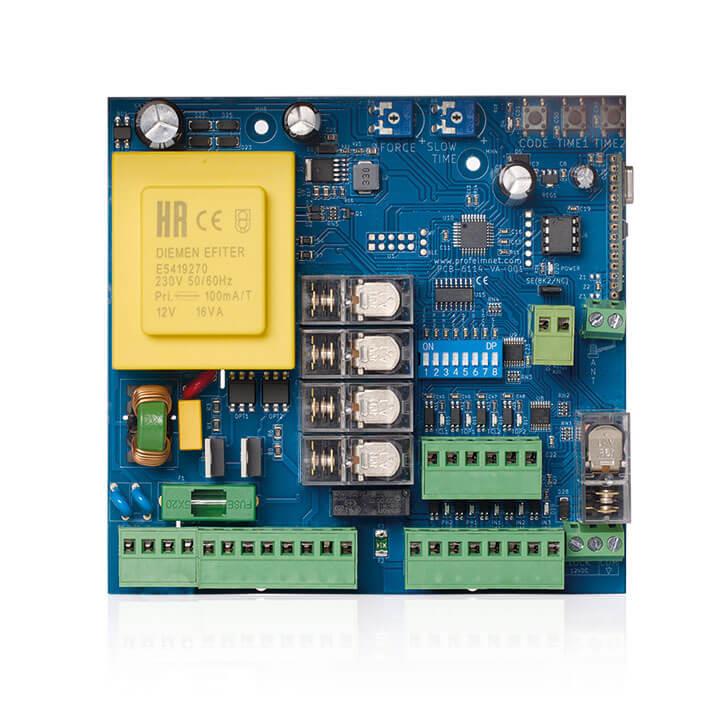

Control board for double swing gates motors up to 2.400watt
3614 is a control board 230VAC suitable for two swing gates motors up to 2400 watt. Advanced desing, upgraded production. Easy programming and innovative functions. 300 transmitters can be stored.
Technical data
Power Supply 230VAC /50 Hz
Max Motor Power 2400W

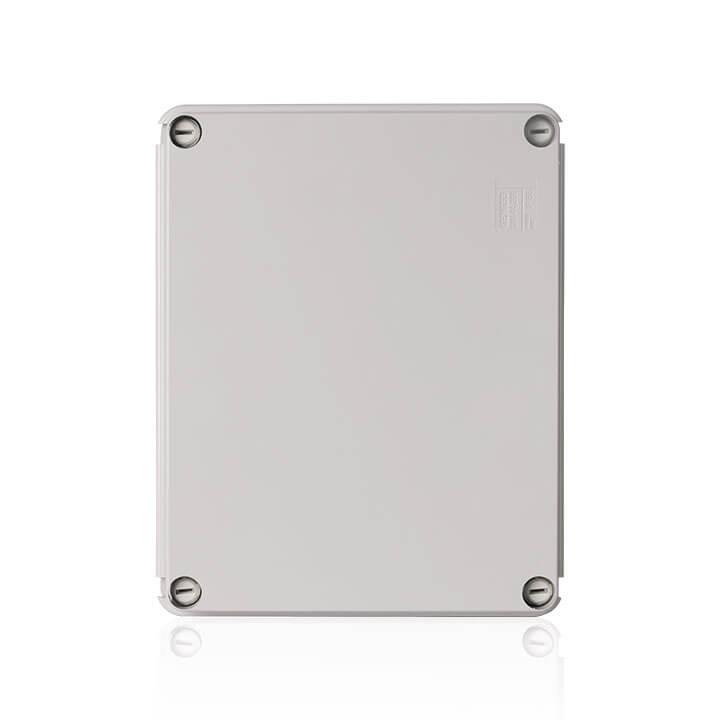

Box Dimensions 25cm X 19.5cm X10cm
Control board Dimensions 13cm X 13.5cm X4.5cm
Fuse 24VAC 500mA
Blinker Light power supply 230VAC
Photocell power supply 24VAC
Remotes Memory 300 remotes
Contact Safety Edge YES
Contact Photocells YES
Pedestrian Function YES
Contact Button YES
Contact for Magnetic Loop YES
Automatic Close YES
Deceleration YES
Input for Lock YES
Terminal Switches YES
Delay between gates YES
Temperature -20oC + 60oC
Available Codes
| Product name | Codification |
| PS3614 | fixed 433.92MHz |
| PSR3614 | keeloq rolling 433.92MHz |
| PN3614 | pn rolling 433.92MHz |
