3114

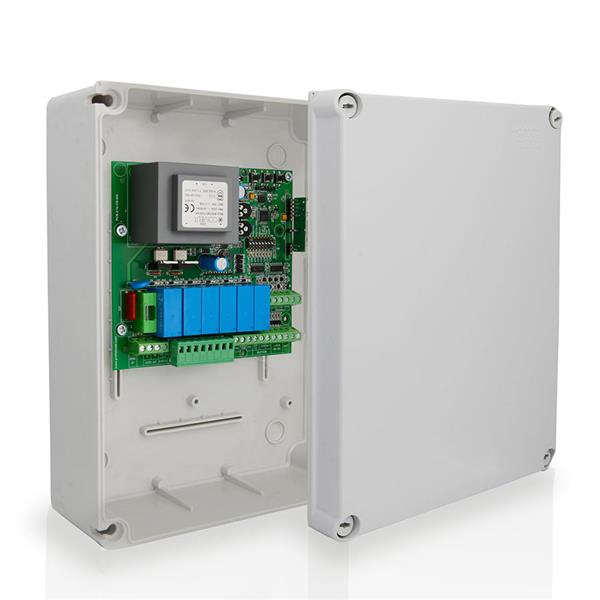

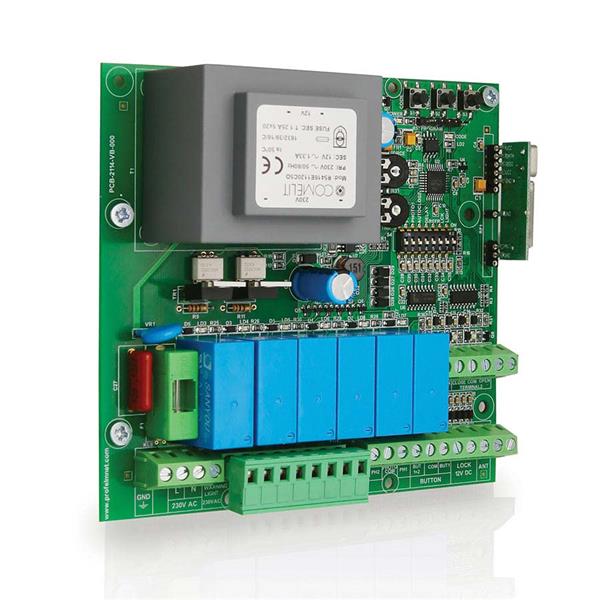

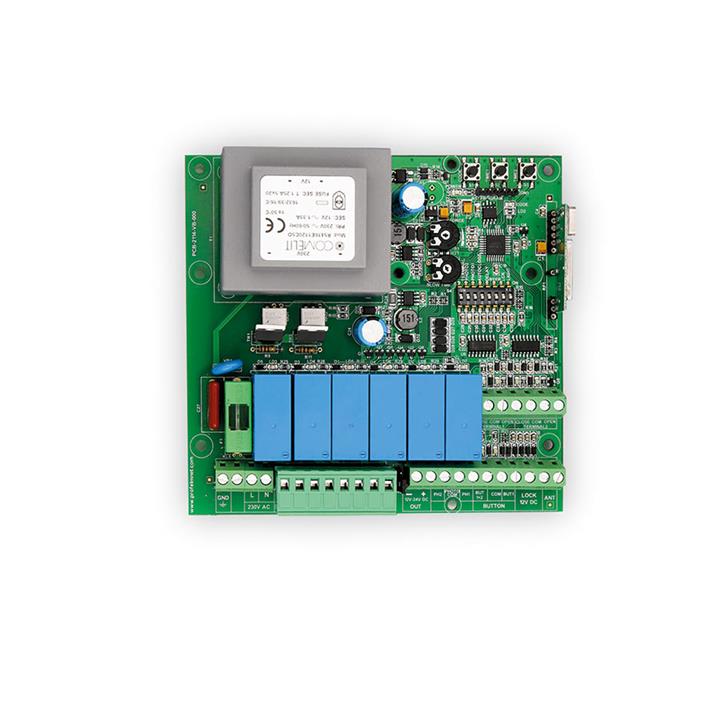

Control panel for double swing gate up to 2400 watt

3114 is multi-function control panel 110/230VAC suitable for two swing gates motors up to 2400 watt. Advanced desing, upgraded production. Easy programming and innovative functions. 300 transmitters can be stored.

ProfelmNet

Main functions

  • Provides different leds that work based on each different function of the receiver
  • External button with  N.O contact
  • Two photocell contact inputs at 12/24 VAC/DC  1,1VA
  • Adjustable electronic motor torque for both motors
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature smart auto-close timer
  • Motor operating time is programmable from 1 to 180 seconds
  • Indepentent deceleration during open and close for motor
  • Provides filters for the external noises
  • Working temperatures: -20oC to + 60oC
  • Size: 119mm  X 95mm X 30mm  including ABS housing.
  • Pedestrian function
  • 12VAC electric lock output
  • Delay function between the two motors



ProfelmNet

Available codes

Product name    Codification  Compatible Transmitters
PS3114  fixed 433.92MHz  PSD-36T, PS-46T
PSR3114 keeloq rolling 433.92MHz PSR-38T, PSR-46T, PSR-25T, PSR-15T, S-18T
PTR3114  keeloq rolling 868.3MHz PTR-15T
PN3114 pn rolling 433.92MHz PN-46T



Compatible transmitters
