3033

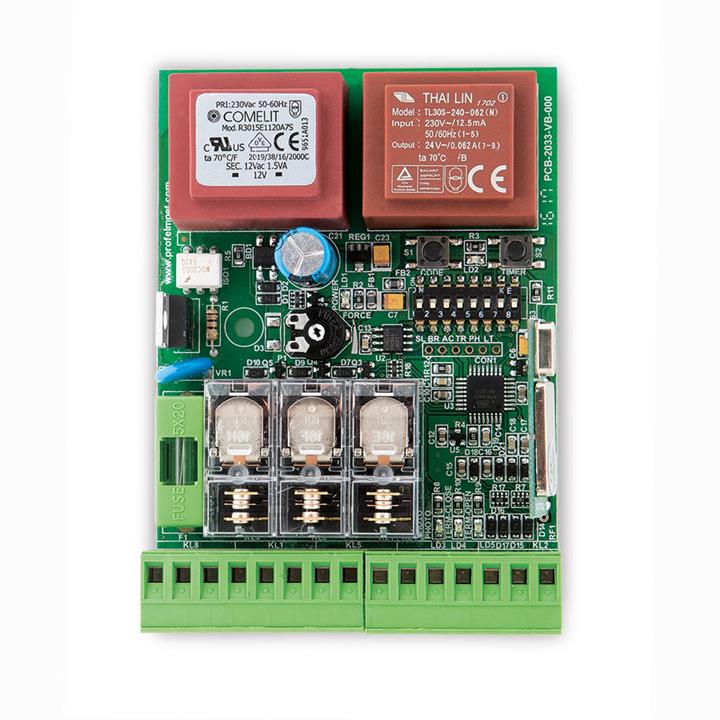

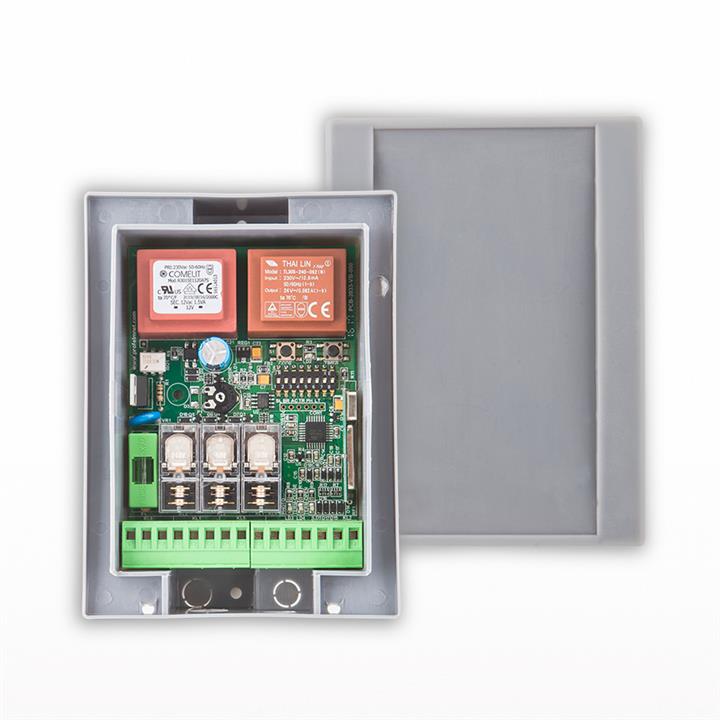

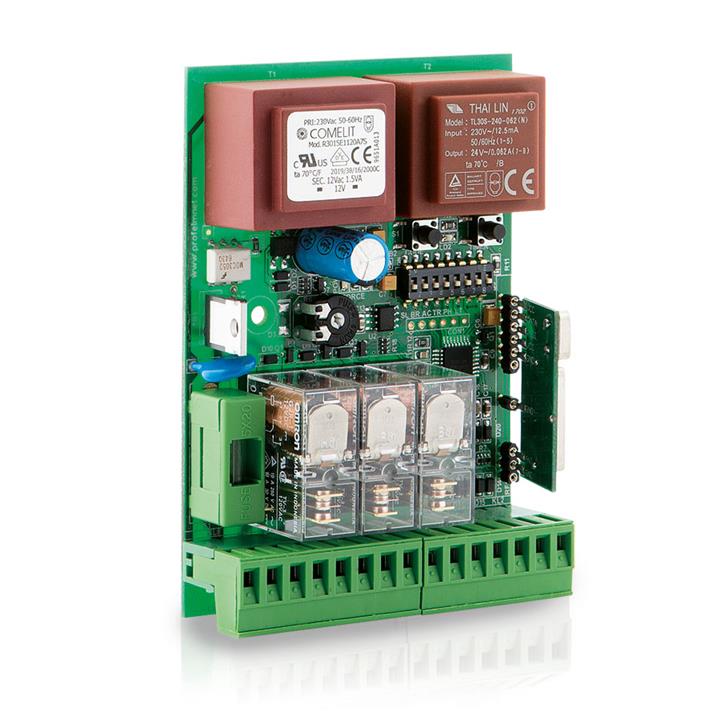

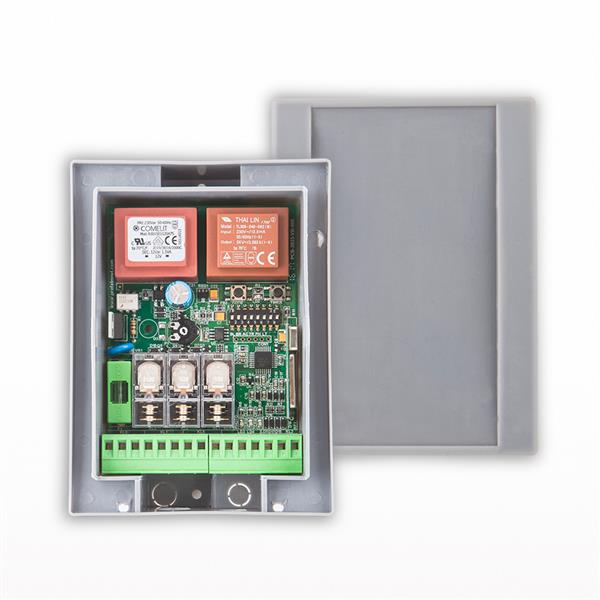

Control panel for single swing gate motor up to 1200 watt

 3033 is new multi-function control panel  110/230VAC suitable for single swing gate motor up to 1200 watt. High standards and requirements. 300 transmitters can be stored.

ProfelmNet

Main functions

  • Provides different leds that indicate each different function of the receiver
  • External button N.O contact
  • Photocell N.C. contact input at 24VAC/1,1VA
  • Separate limit switch inputs for the motor
  • Motor brake function. It is recommended for heavy motors
  • Adjustable electronic motor torque and adjustable decelaration seperately
  • Automatically change motor's direction automatically
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature: Smart auto-close timer
  • Motor operating time is programmable from 1 to 180 seconds
  • Indepentent deceleration during open and close for motor
  • Provides filters for the external noises
  • Working temperatures: -20oC to +60oC
  • Size: 111mm  X 82mm X 30mm including ABS housing



ProfelmNet

Available codes

Product name    Codification  Compatible Transmitters
PS3033        fixed 433.92MHz  PSD-36T, PS-46T
PSR3033 keeloq rolling 433.92MHz PSR-38T, PSR-46T, PSR-25T, PSR-15T, S-18T
PTR3033 keeloq rolling 868.3MHz PTR-15T
PN3033 pn rolling 433.92MHz PN-46T
