4114

4114

LCD control panel for double swing gates up to 2400 watt

Product description
Technical leaflets

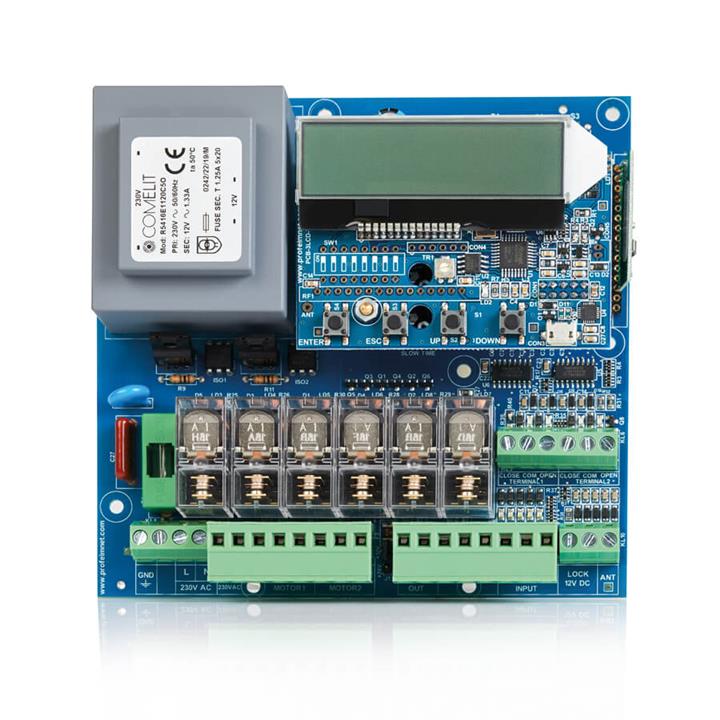

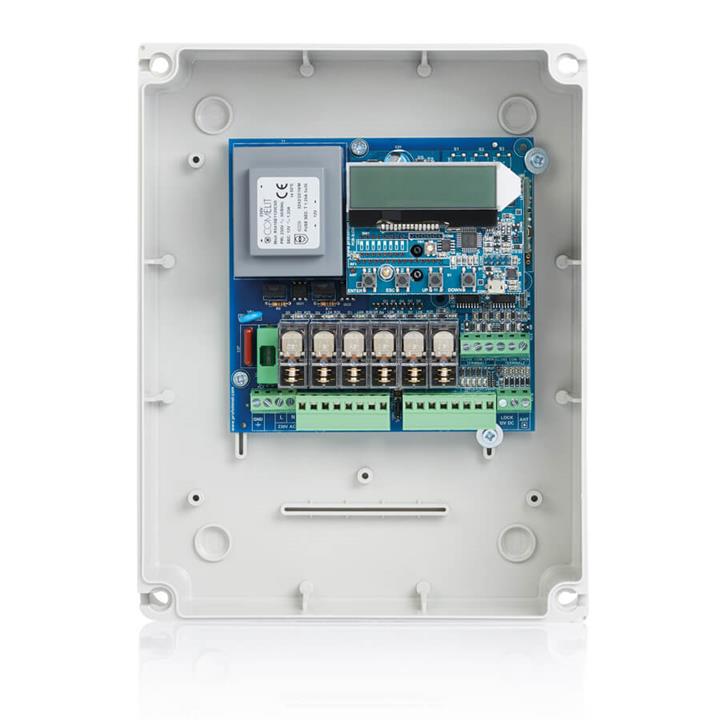

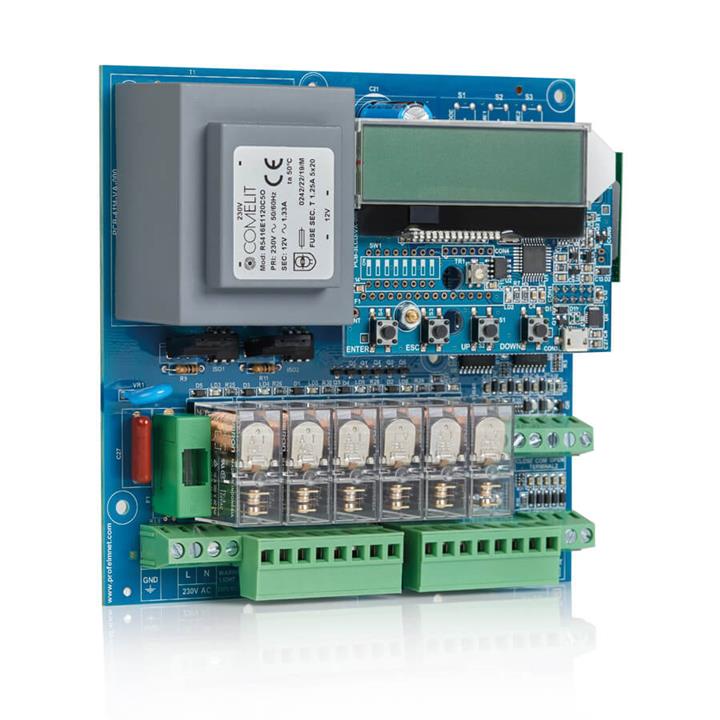

4114 is LCD screen display control panel 110/230VAC suitable for double swing gates motors up to 2400 watt. A new generation automation that combines small and easy-to-use size for each type of installation with advanced software of countless capabilities. The LCD screen display provides fault diagnosis, easy way of programming and plenty of functions. Quality, flexibility use, durability.

Main functions

Power supply 230 VAC / 110 VAC
Power handlling up to 2400 watt
Memory up to 300 transmitters
Adjustable electronic motor torque
Adjustable decelaration
Pedestrial function
Adjustable auto close
Soft start and stop
Output for soft-edge
Output for photocells
Motor break
Adjustable codification
Access control possibility
Input for electric lock
Working temperatures: -20 to +60 Celsius
Size: 119Χ95Χ30mm including ABS housing

NewSeries-40-FINAL-ENG.pdf

CE 4114.pdf

Accessories

Enrich the product with the appropriate accessories, giving it more functionality and features.

IR-3000

Wired photocell up to 30 meters

Details

WF-16

WIFI receiver

Details

PS-46T

Standard code transmitter 433.92MHz

Details
