Control panels
3433

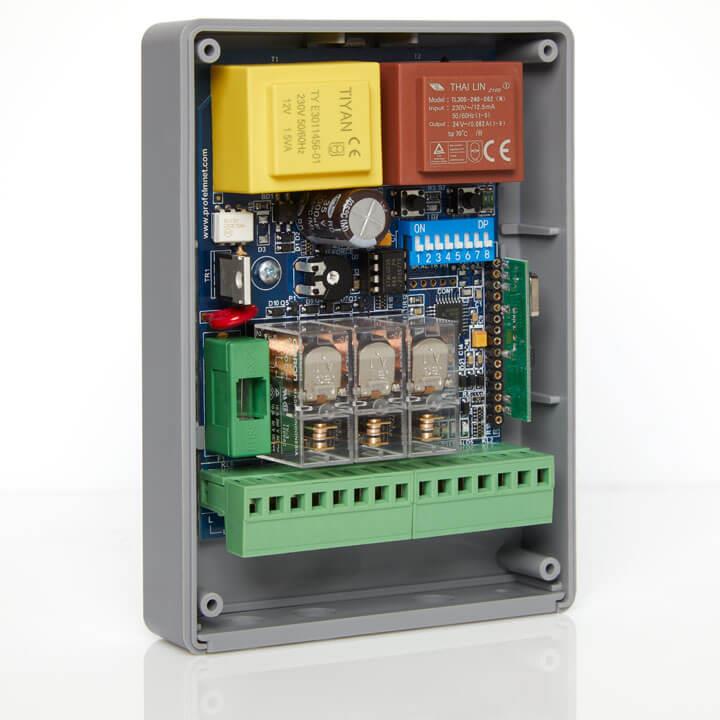

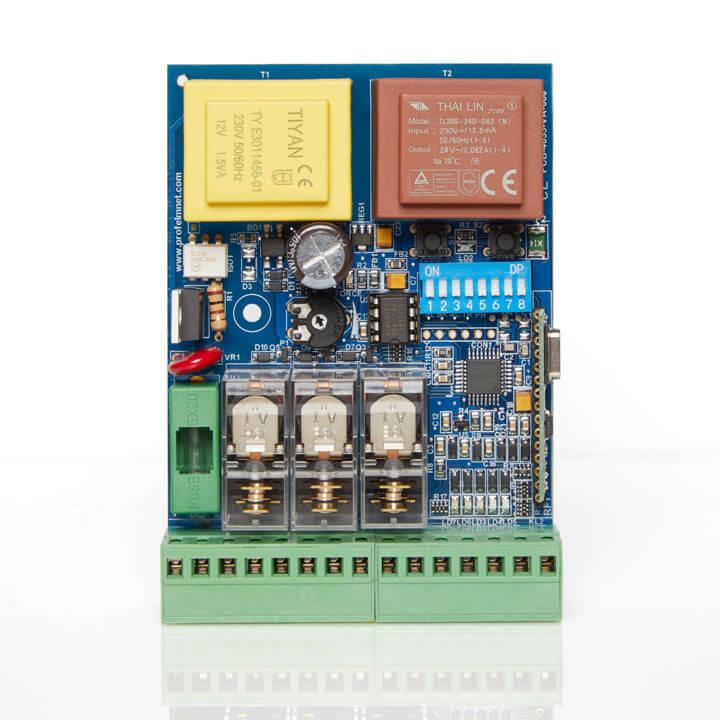

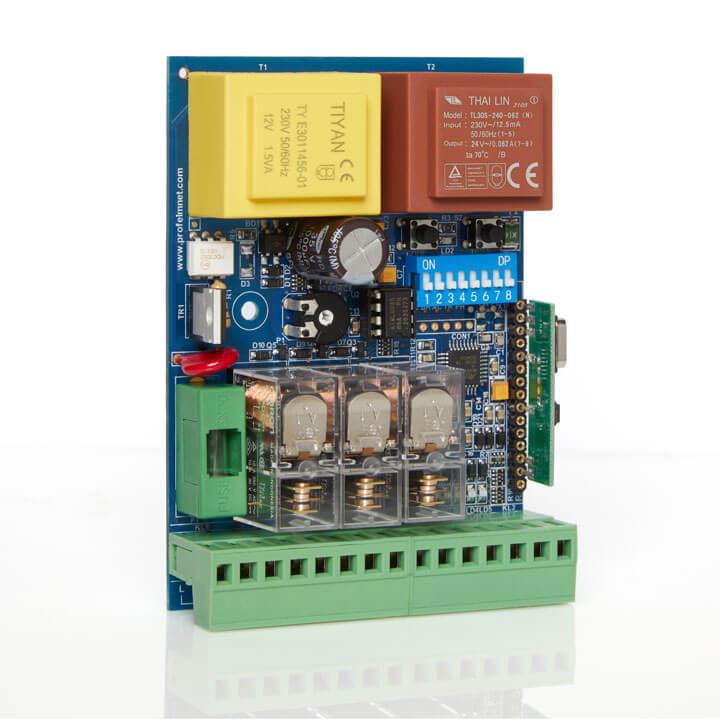

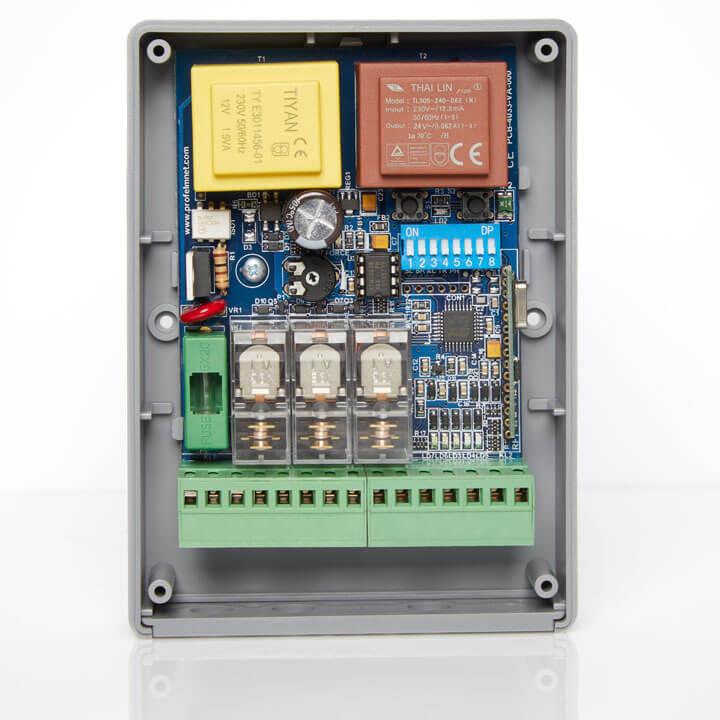

Control panel for sliding gate motors up to 1.200watt
3433 is a control panel 230VAC suitable for sliding gate motor up to 1200watt. High standards and requirements. 300 transmitters can be stored. Reliable, strong, durable in the most demanding installations.
Main functions
- Motor brake function. It is recommended for heavy motors
- Adjustable electronic motor torque and adjustable decelaration seperately
- Automatically change motor's direction automatically
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-Close function
- Pedestrian function
- Motor operating time is programmable from 1 to 180 seconds
- Deceleration during open and close for motor
- Provides filters for the external noises
- Working temperatures: -20oC to +60 Celsius
- Size: 111mm X 82mm X 30mm including ABS housing
Available Codes
| Product name | Codification |
| PS3433 | fixed 433.92MHz |
| PSR3433 | keeloq rolling 433.92MHz |
| PTR3433 | keeloq rolling 868.3MHz |
| PN3433 | pn rolling 433.92MHz |
