3423

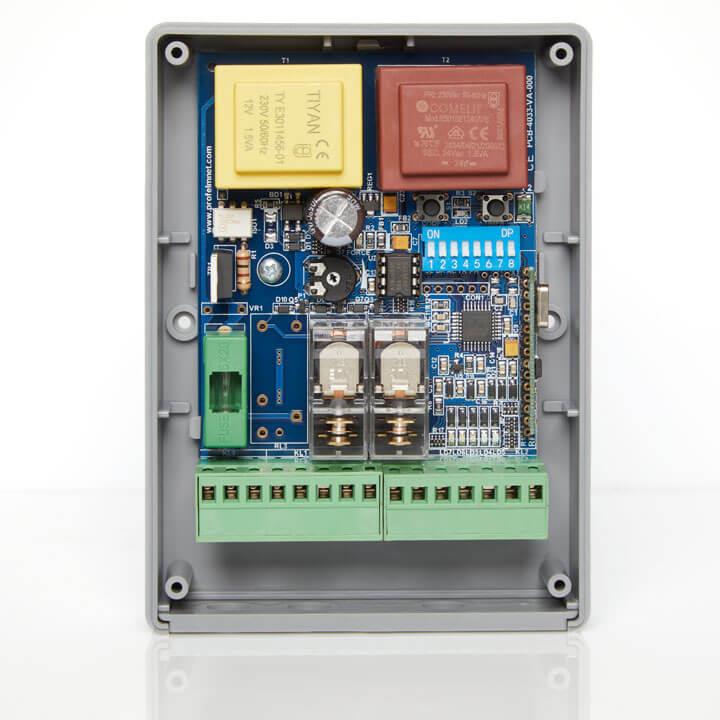

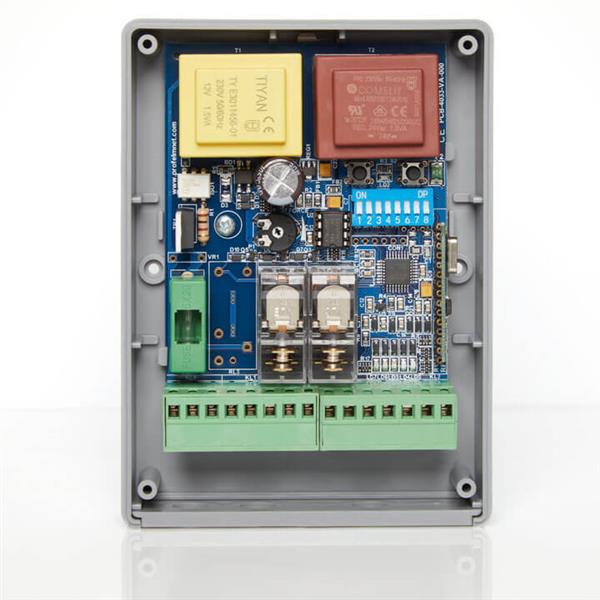

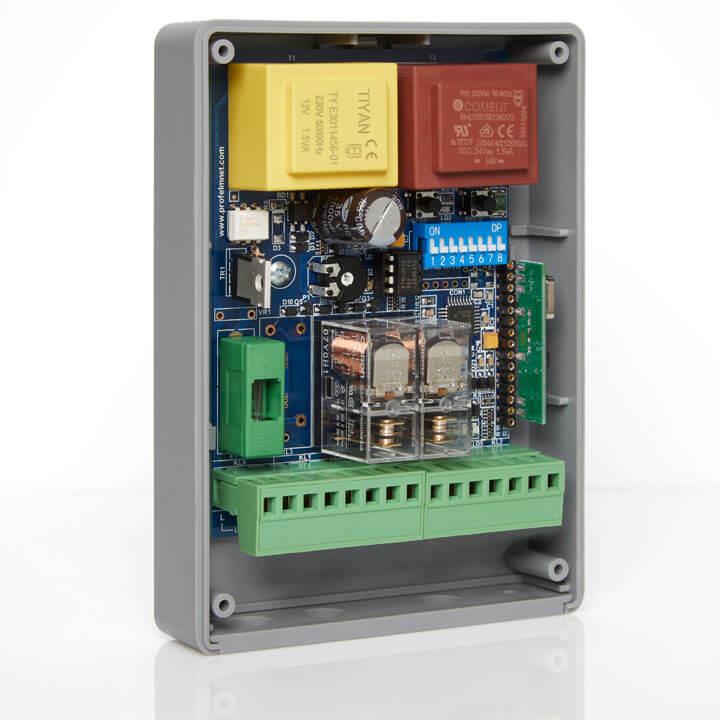

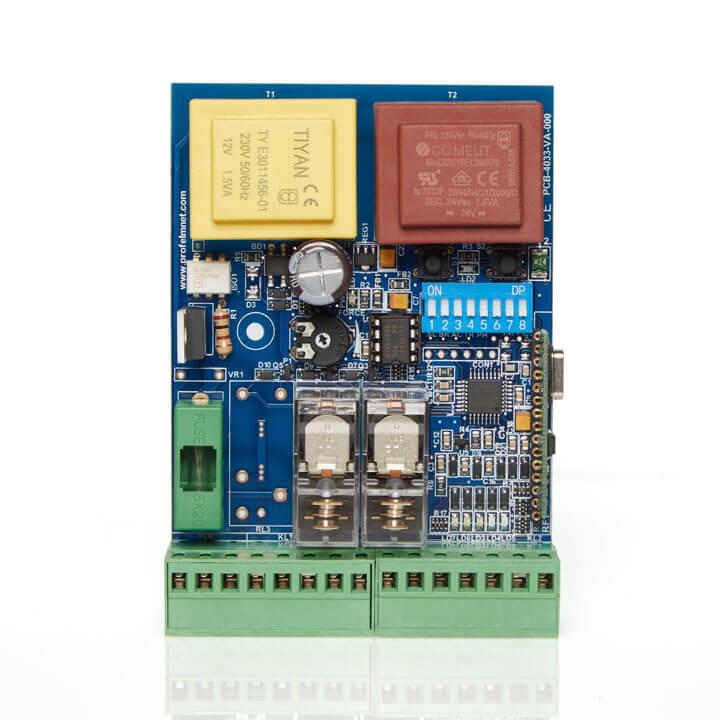

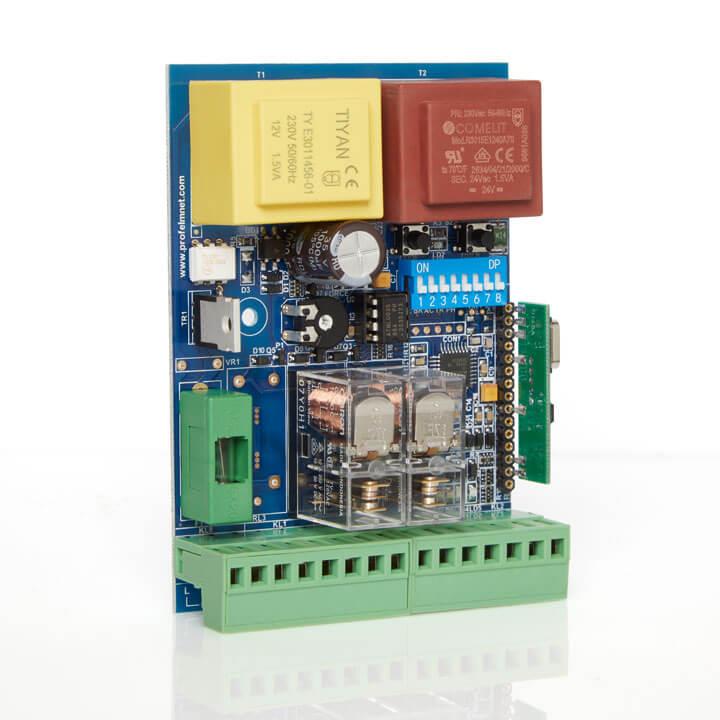

Control board for sliding gate motor up to 1200 watt

3423 is a control board 230VAC suitable for sliding gate motor up to 1200 watt. Retrofit and new embedded functions. 300 transmitters can be stored.

ProfelmNet

Main functions

  • Provides different leds that work based on each different function of the receiver
  • Separate limit switch inputs for the motor
  • External button: N.O contact
  • Photocell contact input at 24VAC/1,1VA
  • Adjustable electronic motor torque
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature
  • Pedestrian function
  • Safety Edge contact
  • Motor operating time: Programmable from 1 to 180 seconds
  • Provides filters for the external noises
  • Working temperatures: -20oC - 60oC
  • Size: 111mm X 82mm  X 30mm including ABS housing
ProfelmNet

Available Codes

Product name    Codification
PS3423 fixed 433.92MHz
PSR3423 keeloq rolling 433.92MHz
PTR3423 keeloq rolling 868.3MHz
PN3423 pn rolling 433.92MHz



ProfelmNetAccessories

Enrich the product with the appropriate accessories, giving it more functionality and features.
