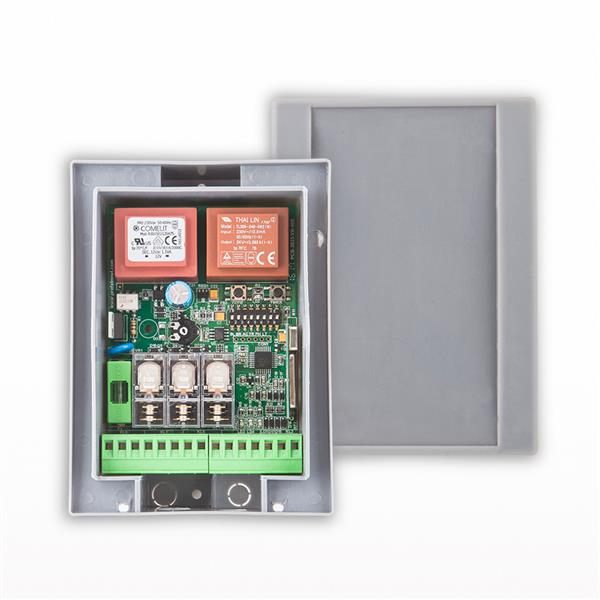

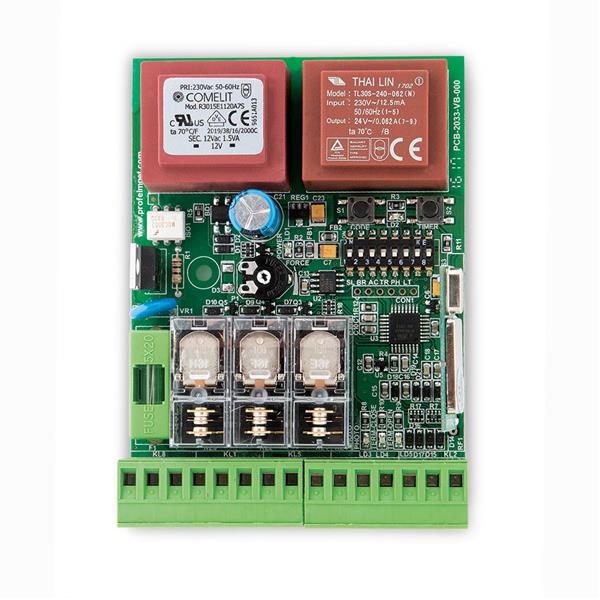

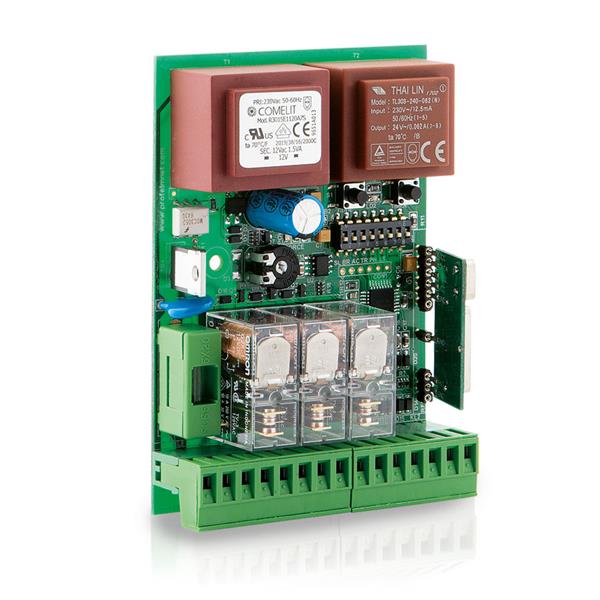

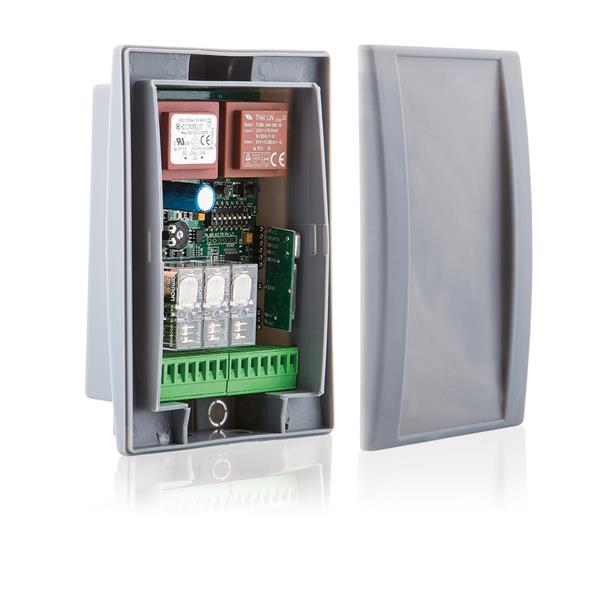

Control panel for sliding gate motor up to 1200 watt

3033 is multi-function control panel 110/230VAC suitable for sliding gate motor up to 1200watt. High standards and requirements. 300 transmitters can be stored. Reliable, strong, durable in the most demanding installations.


Main functions

  • Motor brake function. It is recommended for heavy motors
  • Adjustable electronic motor torque and adjustable decelaration seperately
  • Automatically change motor's direction automatically
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature: Smart auto-close timer
  • Motor operating time is programmable from 1 to 180 seconds
  • Indepentent deceleration during open and close for motor
  • Provides filters for the external noises
  • Working temperatures: -20oC to +60 Celsius
  • Size: 111mm  X 82mm X 30mm  including ABS housing

Available codes

Product name    Codification  Compatible Transmitters
PS3033  fixed 433.92MHz  PSD-36T, PS-46T
PSR3033 keeloq rolling 433.92MHz PSR-38T, PSR-46T, PSR-25T, PSR-15T, S-18T
PTR3033 keeloq rolling 868.3MHz PTR-15T
PN3033 pn rolling 433.92MHz PN-46T



Enrich the product with the appropriate accessories, giving it more functionality and features.
