2114

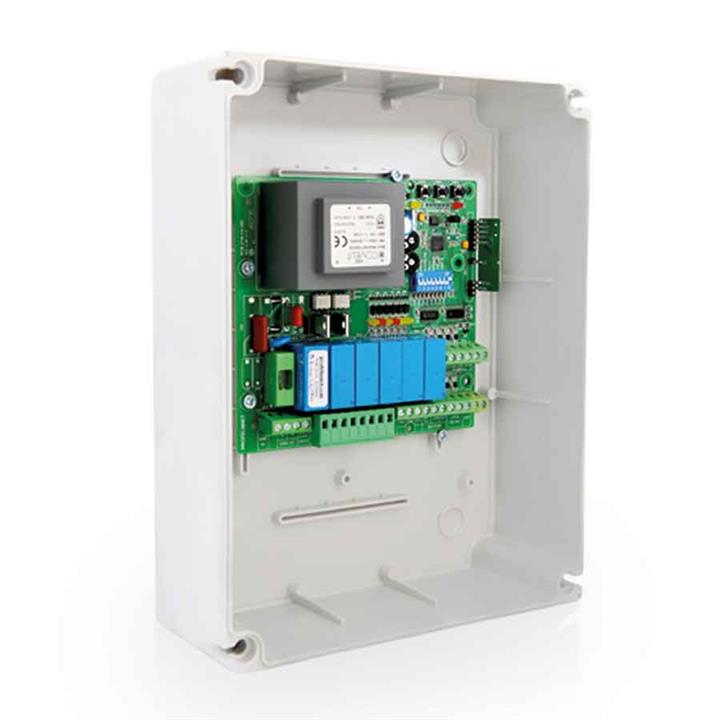

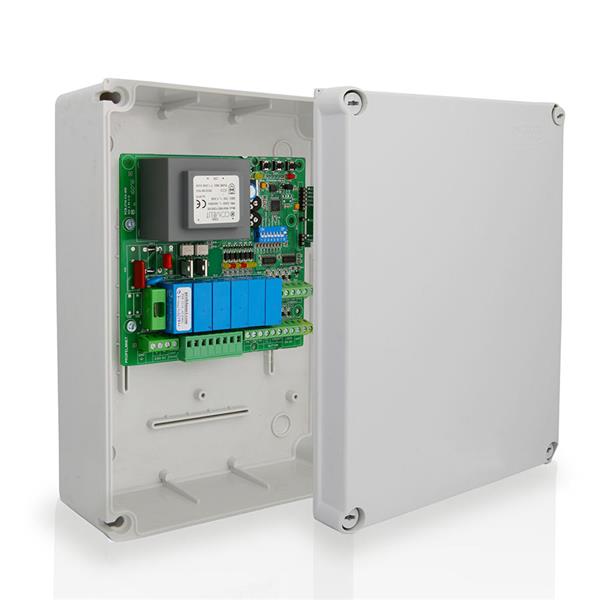

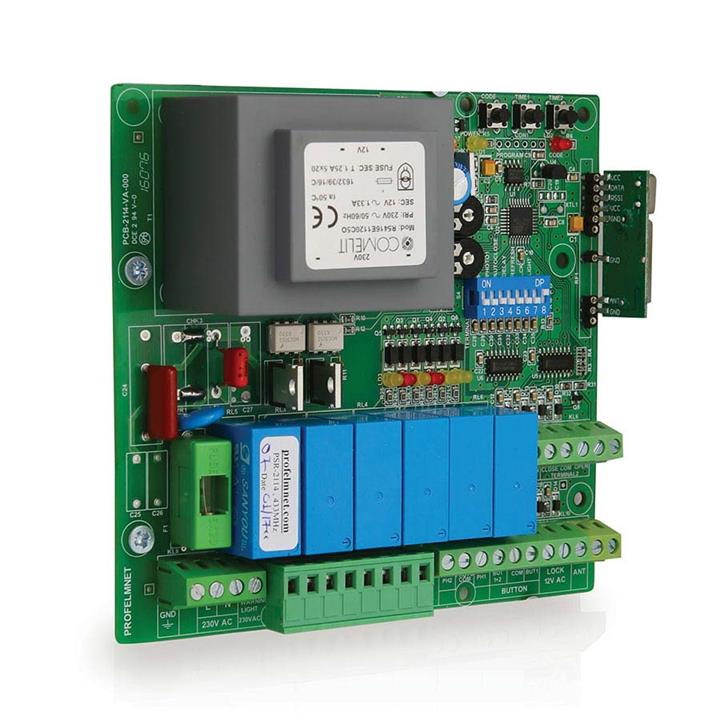

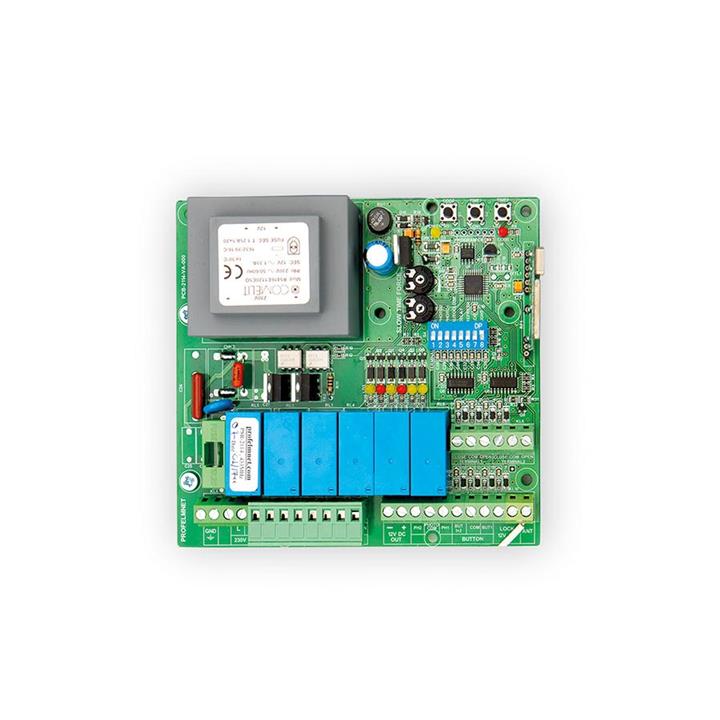

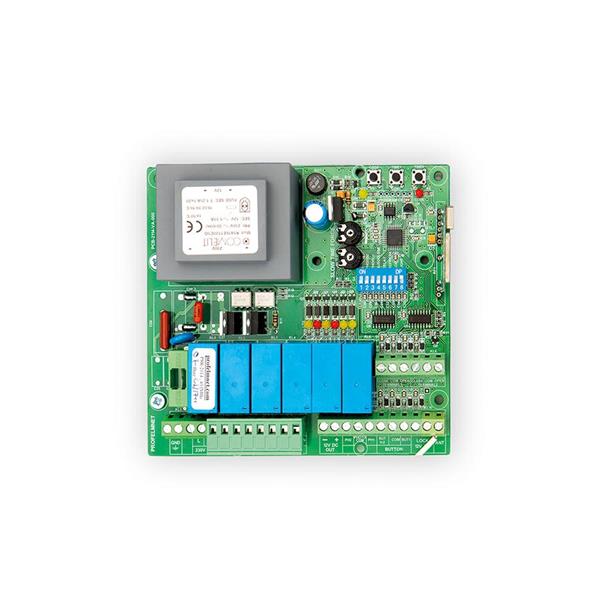

Control panel for double sliding gate motor up to 2000 watt

2114 is multi- function control panel 110/230VAC suitable for two sliding gates motor up to 2000 watt. Easy in programming and advanced in functions. 20 or 80 transmitters can be stored.

ProfelmNet

Main functions

  • Separate limit switch inputs for each motor
  • External button with  N.O contact
  • Two photocell contact inputs at 12DC/1,1VA
  • Adjustable electronic motor torque for both motors
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature smart auto-close timer
  • Motor operating time is programmable from 1 to 180 seconds
  • Indepentent deceleration during open and close for motor
  • Provides filters for the external noises
  • Working temperatures: -20oC - 60oC
  • Pedestrian function
  • Provides slow move function adjustment
  • 12VAC electric lock output
  • Delay function between the two motors
  • Size: 119mm  X 95mm  X 30mm  including ABS housing
ProfelmNet

Available codes

Product name    Codification  Compatible Transmitters
PS2114  fixed 433.92MHz  PSD-36T, PS-46T
PSR2114 keeloq rolling 433.92MHz PSR-38T, PSR-46T, PSR-25T, PSR-15T, S-18T
PTR2114  keeloq rolling 868.3MHz PTR-15T
