3423

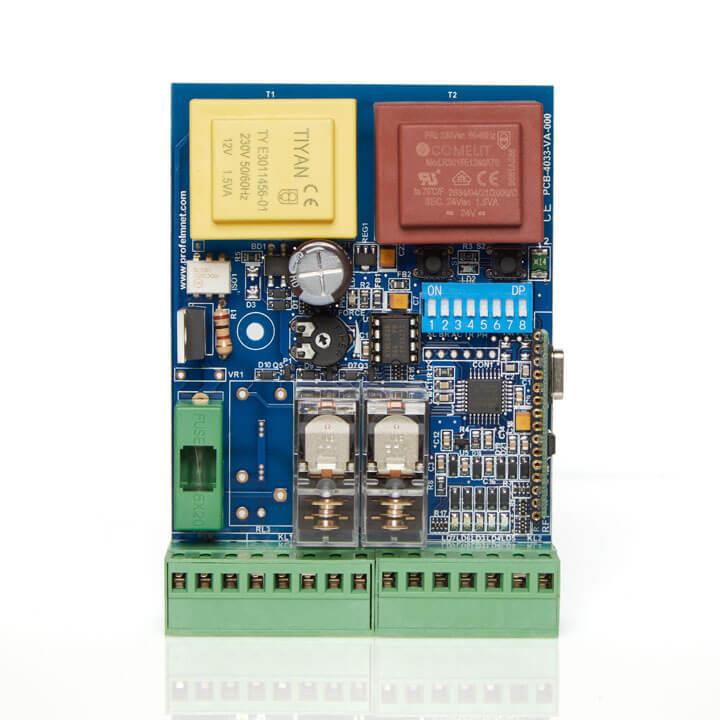

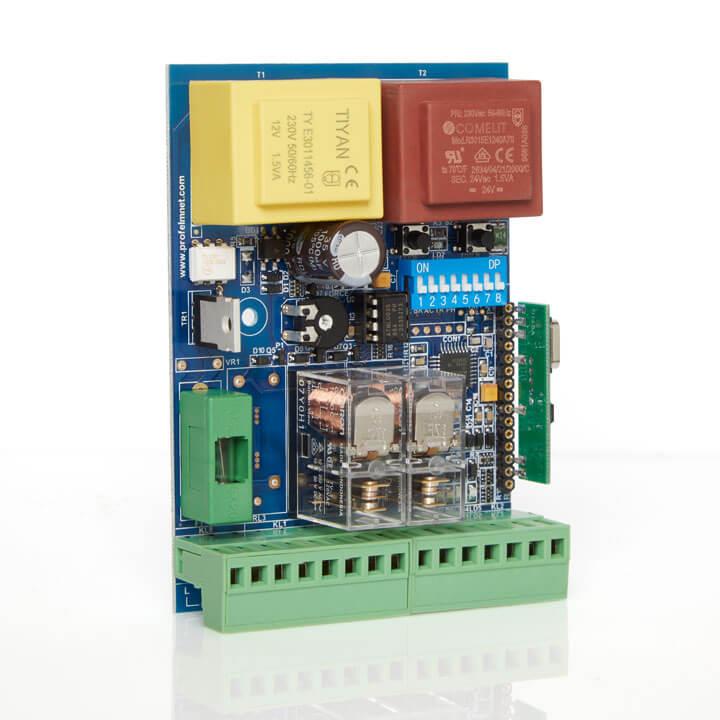

Control board for rolling shutters motors up to 1200 watt
3423 is control board for rolling shutter motors up to 1200 watt. Retrofit and new embedded functions. 300 transmitters can be stored.
Main functions
- Provides different leds that indicate each different function of the receiver
- External button N.O contact
- Photocell contact input at 24VAC/1,1VA
- Output for flashing light 230VAC/25W
- Adjustable working time from 1-180S
- Provides filters for the external noises
- Auto-close feature Smart auto-close timer
- Working temperatures: -20oC +60oC

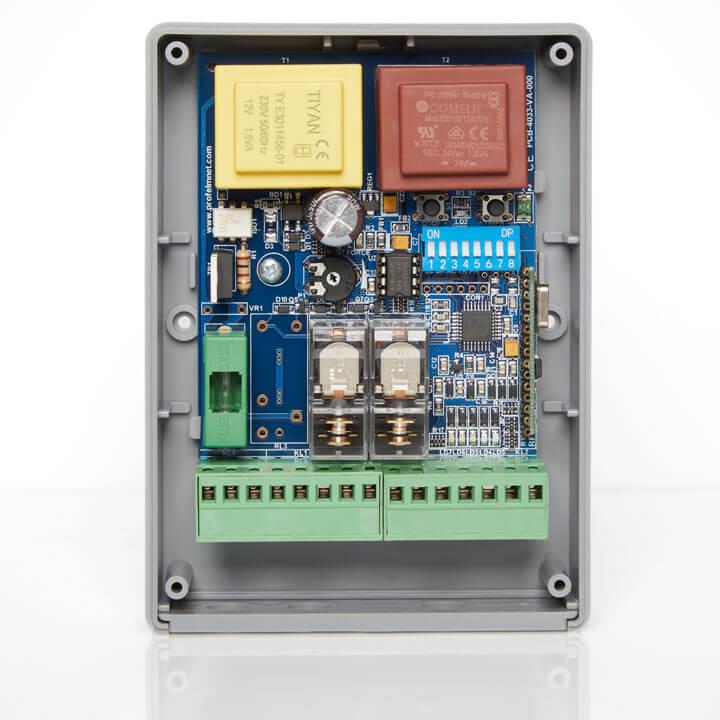

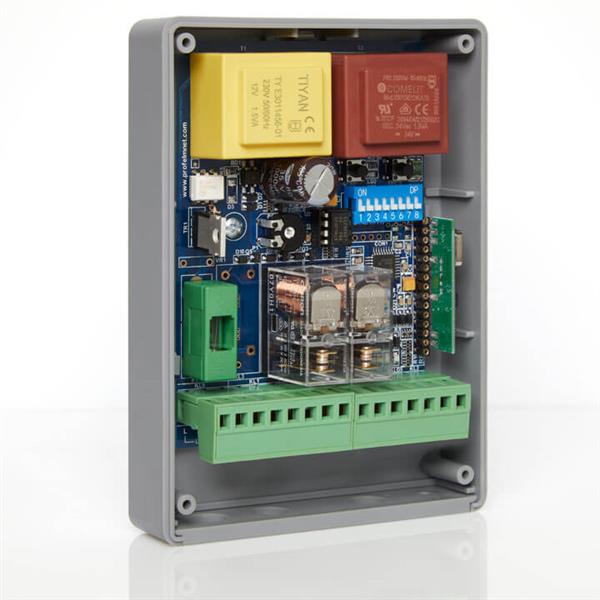

- Size 111mm X 82mm X 30mm including ABS housing
Available Codes
| Product name | Codification |
| PS3423 | fixed 433.92MHz |
| PSR3423 | keeloq rolling 433.92MHz |
| PTR3423 | keeloq rolling 868.3MHz |
| PN3423 | pn rolling 433.92MHz |
