3025

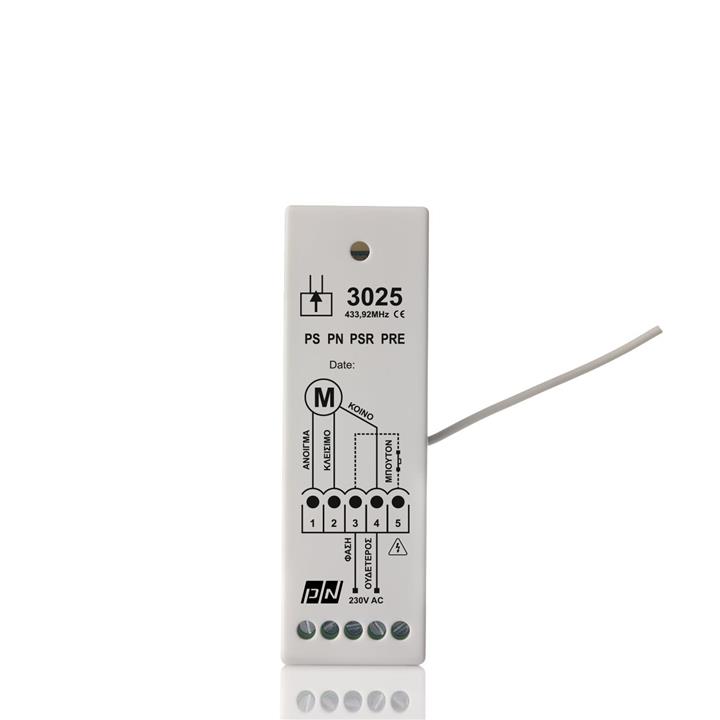

Control board for rolling shutters up to 500 watt

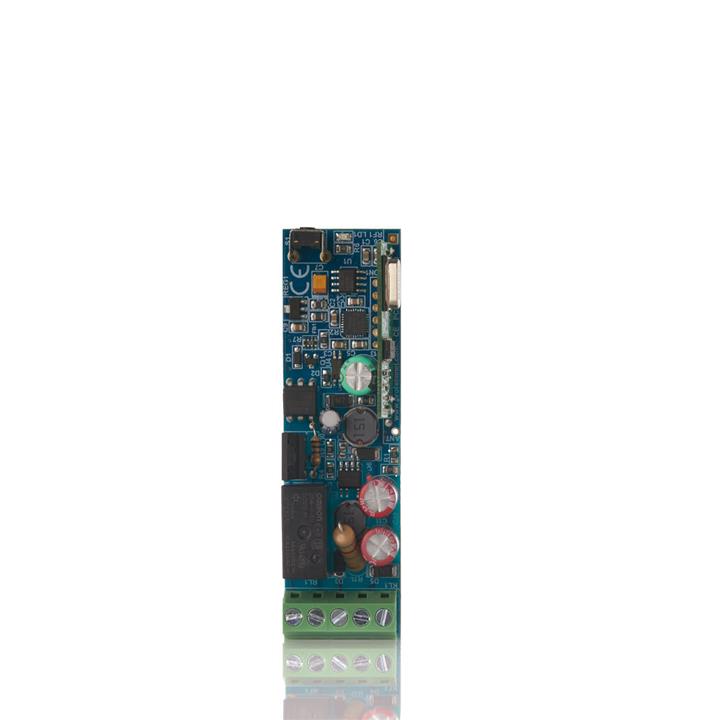

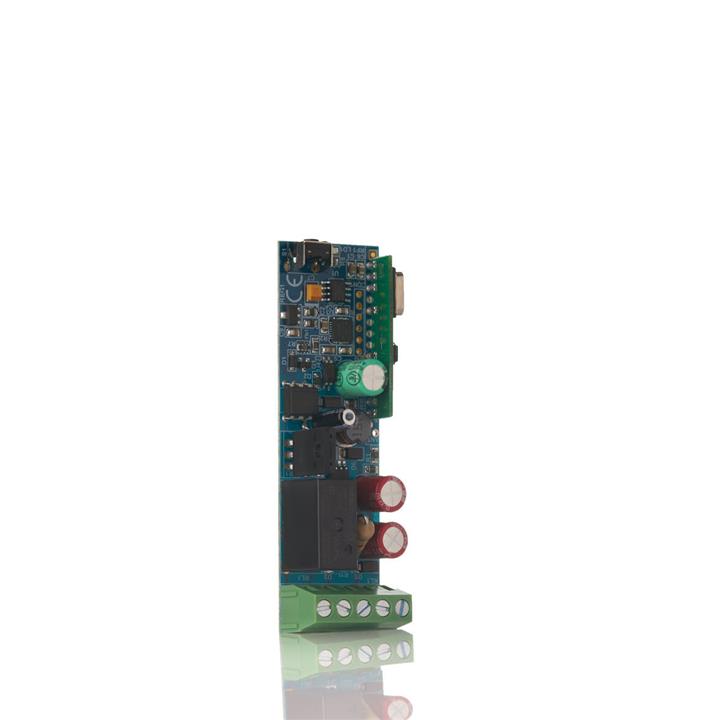

3025 is control board 230VAC for rolling shutter. Suitable for AC motor up to 500 watt (residential motors). 300 transmitters can be stored. Two - channel operation is available. Small in size, suitable for installations inside the tube.
Technical data
- Power supply: 230 VAC
- Maximum motor power: 500 W
- Transmission frequency: 433.92 MHz
- External push button: Yes
- Pre-set travel time: 2 minutes
- Maximum number of remote controls: 300
- Operating temperature: -20°C to +60°C
- Enclosure dimensions: 135 × 100 × 44 mm, sealed ABS plastic housing
- Dual-channel control operation: Yes
- Deadman control operation: Yes
Available codes
| Product name | Codification |
| PS3025 | fixed 433.92MHz |
| PSR3025 | keeloq rolling 433.92MHz |
| PTR3025 | keeloq rolling 868.3MHz |
| PN3025 | pn rolling 433.92MHz |
