Control boards
2029

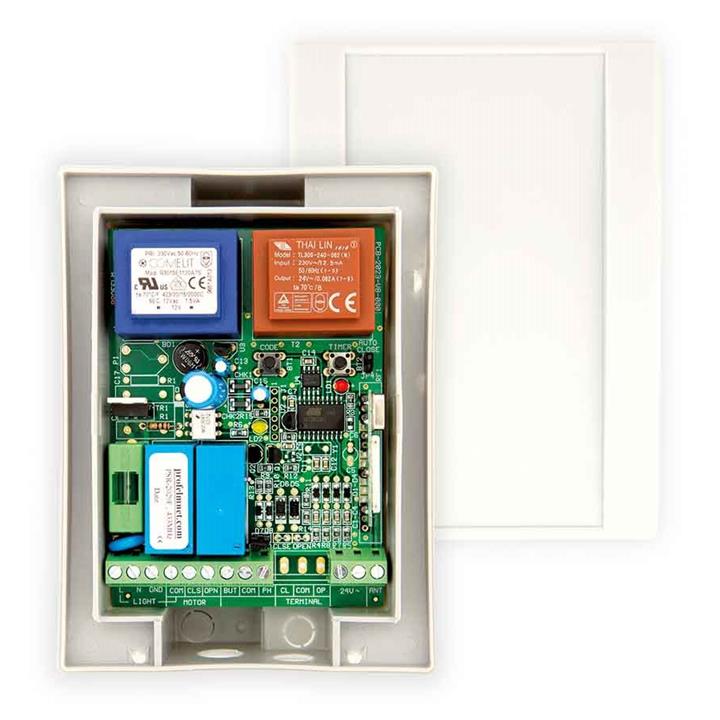

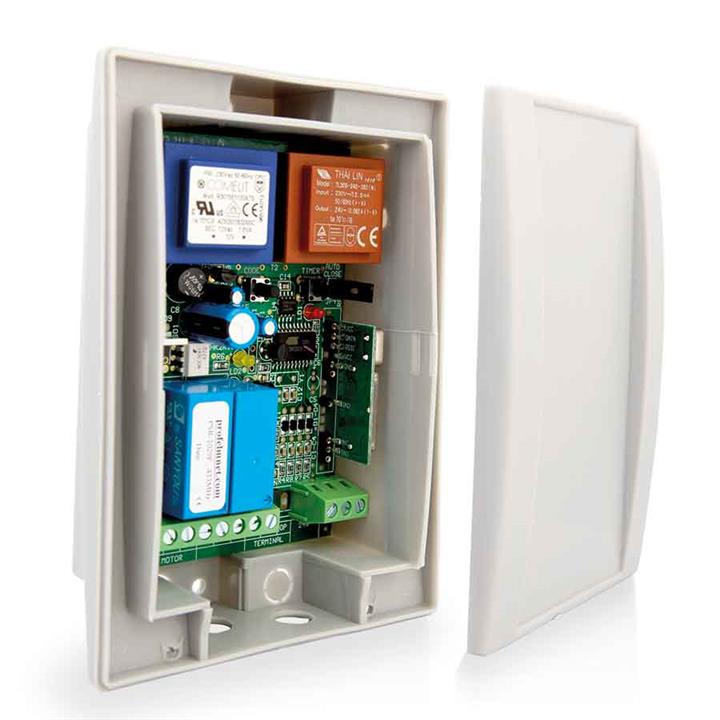

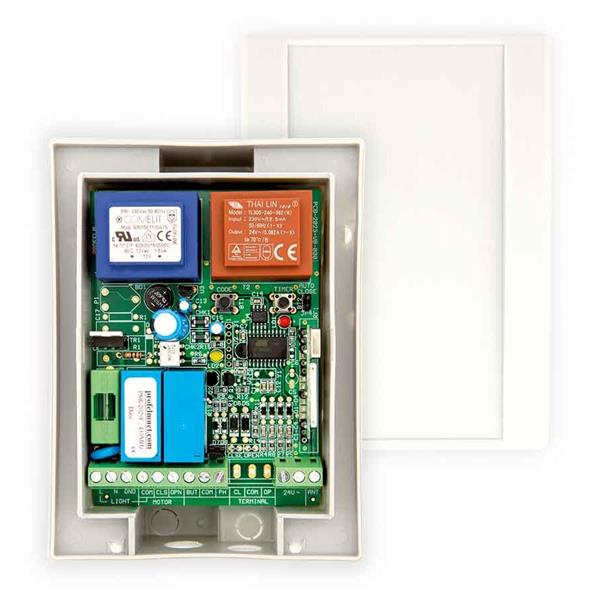

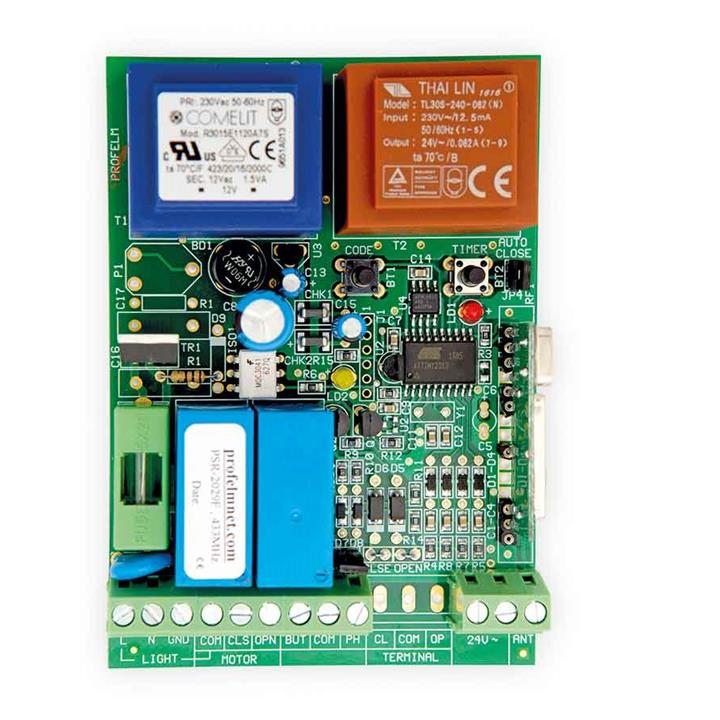

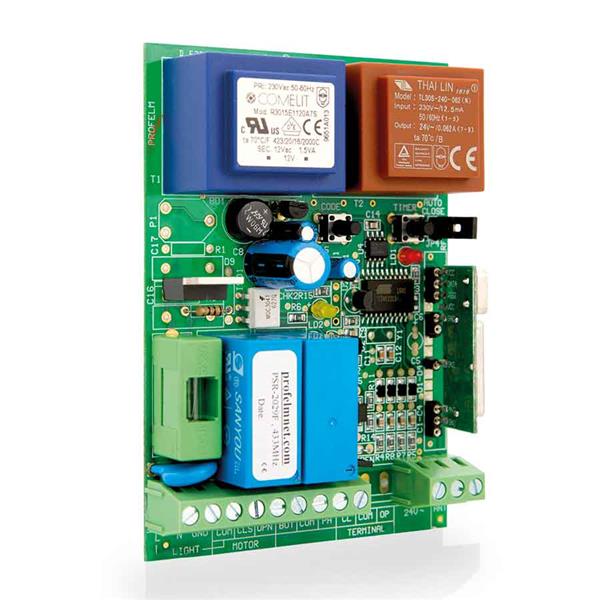

Full control board for rolling shutters up to 1200 watt
2029 is a multi-function rolling shutter control board 230VAC, suitable for AC motor up to 1200 watt. Strong and reliable. 20 or 80 transmitters can be stored.
Main functions
- External button N.O contact
- Photocell N.C. contact input at 24VAC/1,1VA
- Output for flashing light 230VAC/25W standard with or without intermittence
- Separate limit switch inputs for the motor
- Adjustable working time from 1-180S.
- Provides filters for the external noises
- Auto-close feature Smart auto-close timer
- Working temperatures: -20oC - 60oC
- Size 111mm X 82mm X 30mm including ABS housing
Available codes
| Product name | Codification |
| PS2029 | fixed 433.92MHz |
| PSR2029 | keeloq rolling 433.92MHz |
| PTR2029 | keeloq rolling 868.3MHz |
