2020

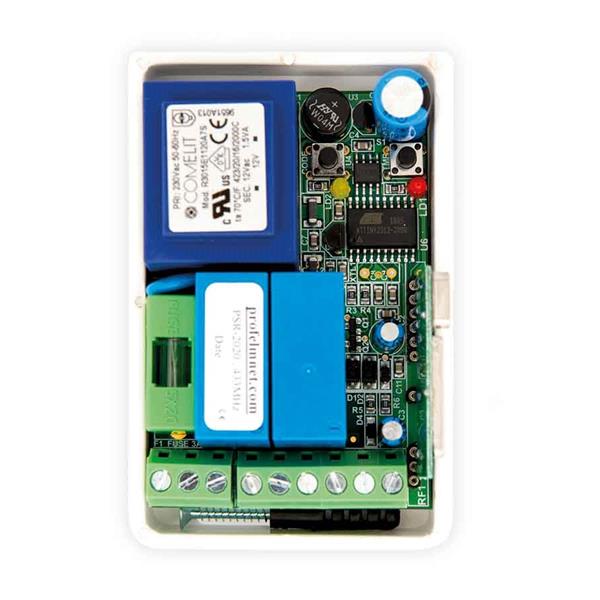

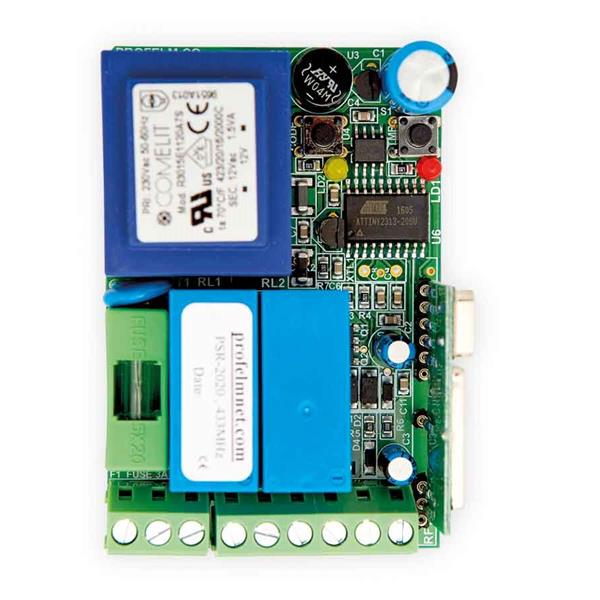

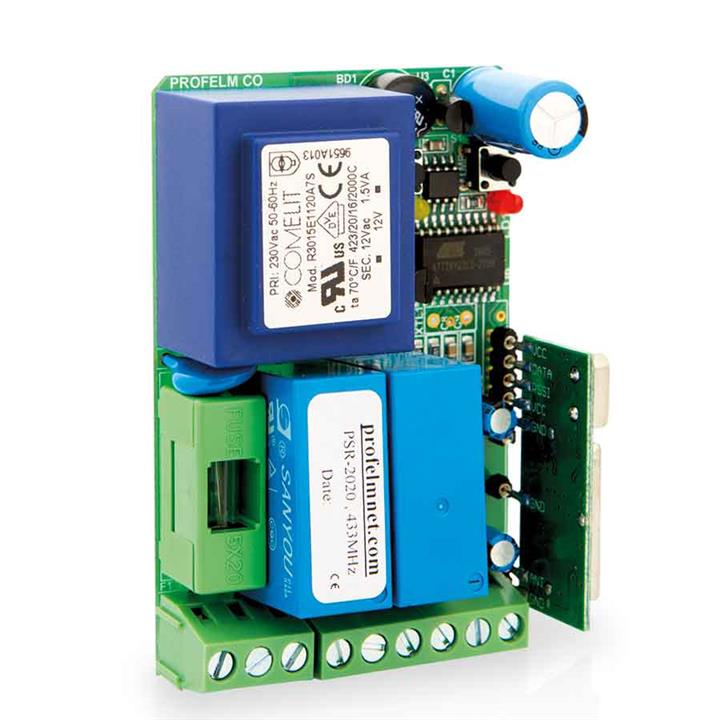

Control board for rolling shutters up to 1000 watt
-8587114085661375690-s1.jpg)
-8587114085661375690-g6.jpg)
2020 is rolling shutter control board 230VAC, suitable for AC motor up to 1000 watt. Its small size makes it suitable even for the most demanding projects. 20 or 80 transmitters can be stored.
Main functions
- External START/STOP button terminal
- Adjustable working time from 1-180S
- RF module removable 433,92MHz
- Provides filters for the external noises
- Working temperature -10oC - +50 oC
- Compact size 80(L) X 45(W) X 30(H) including the ABS housing
Available codes
| Product name | Codification |
| PS2020 | fixed 433.92MHz |
| PSR2020 | keeloq rolling 433.92MHz |
| PTR2020 | keeloq rolling 868.3MHz |
