Control board for intensive use barrier motor up to 1.200watt

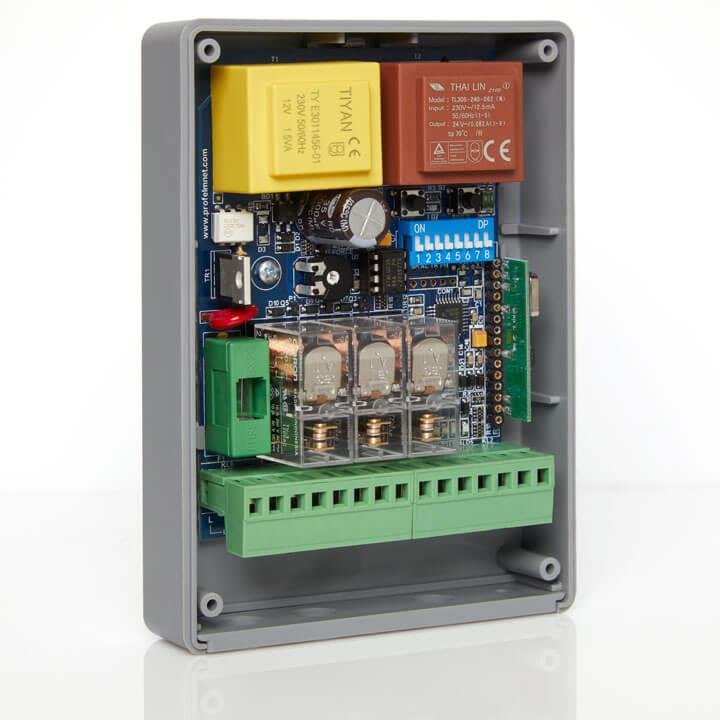

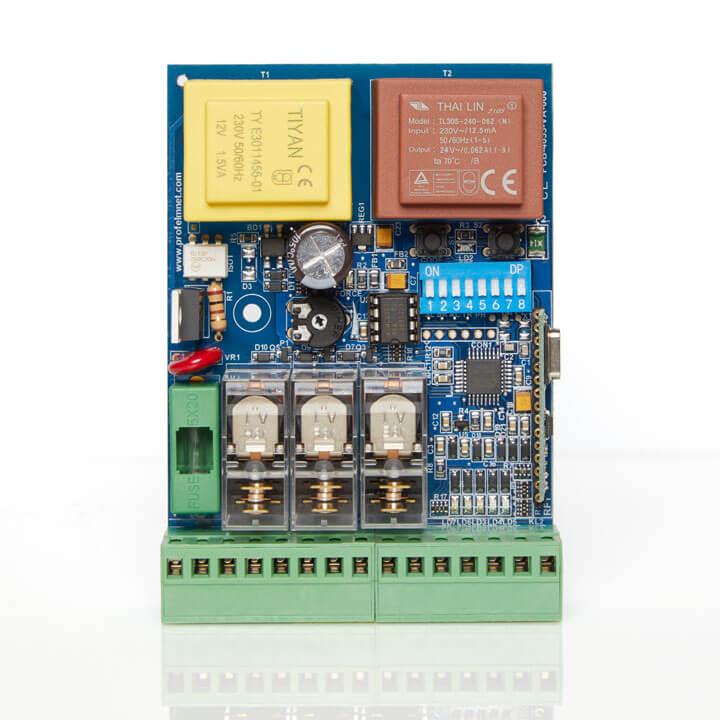

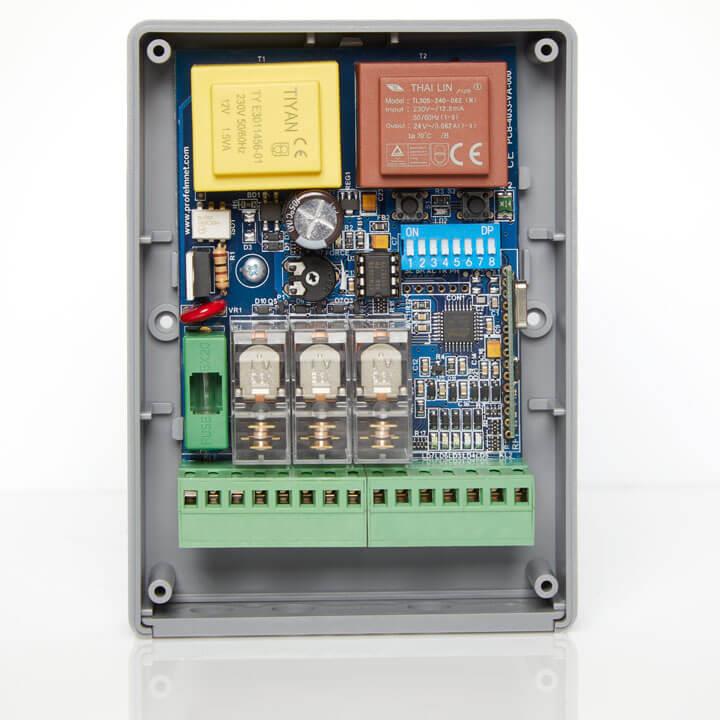

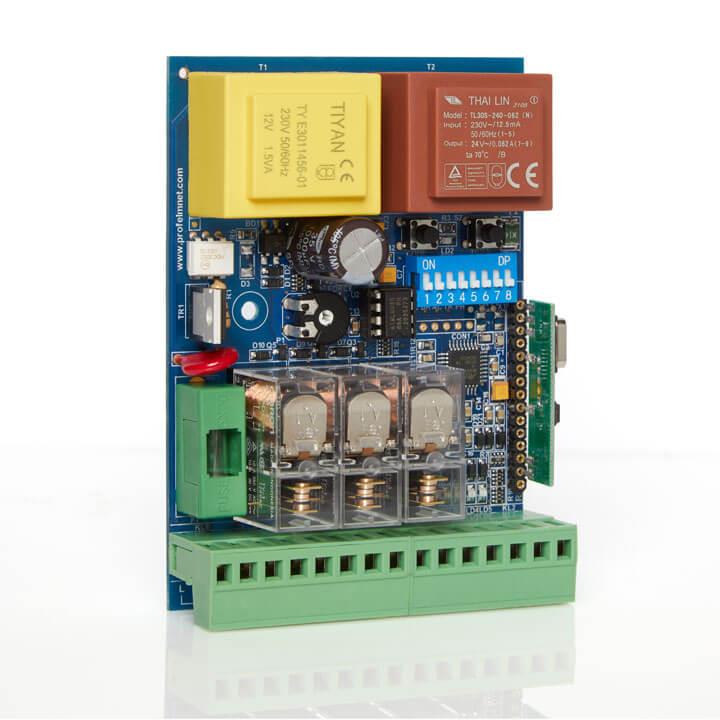

3433 is a control board 230VAC suitable for intensive use barrier, up to 1200 watt. Durable and reliable. 300 transmitters can be stored.


Main functions

  • Provides different leds that work based on each different function of the receiver
  • Separate limit switch inputs for the motor
  • No sparking relays for longer life time of relays
  • External button: N.O contact for only opening
  • Photocell contact input at 24VAC/1,1VA
  • Motor brake function. It is recommended for heavy motors
  • Adjustable electronic motor torque and adjustable decelaration seperately
  • Automatically change motor's direction automatically
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close function
  • Motor operating time is programmable from 1 to 180 seconds
  • Indepentent deceleration during open and close for motor
  • Pedestrian Function
  • Safety Edge contact
  • Provides filters for the external noises
  • Working temperatures: -20oC to + 60oC
  • Size: 111mm X 82mm X 30mm including ABS housing

Available Codes

Product name    Codification
PS3433  fixed 433.92MHz
PSR3433 keeloq rolling 433.92MHz
PTR3433 keeloq rolling 868.3MHz
PN3433 pn rolling 433.92MHz
