PTR-2033 glass 868,3ΜHz rolling

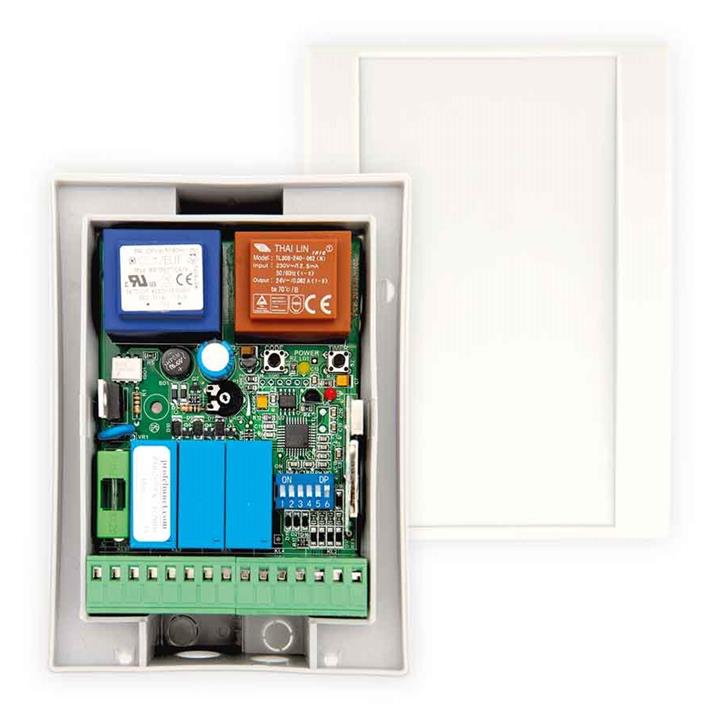

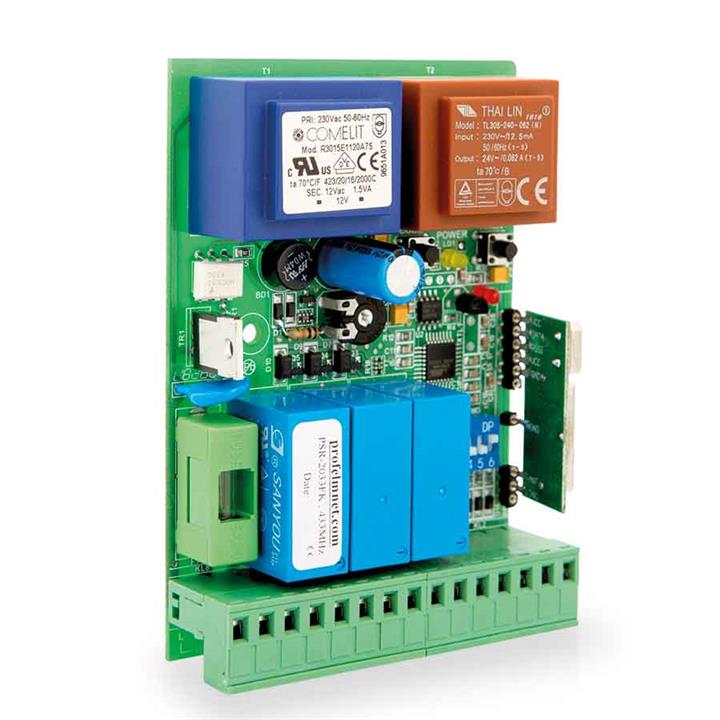

Control panel for intensive use barrier, rolling codification, 868,3MHz
2033 glass also available in:
PTR-2033 glass is multi-function control panel 110/230VAC suitable for intensive use barrier, up to 1200 watt. Durable and reliable. Available in standard codification at 868,3MHz and 80 same rolling code transmitters can be stored.
Main Functions
- External button N.O contact for up to 100m external activation, for only opening
- No sparking relays for longer life time of relays
- Separate limit switch inputs for the motor
- Photocell contact input at 24VAC/1,1VA
- Adjustable electronic MOTOR torque
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature: Smart auto-close timer
- Motor operating time: Programmable from 1 to 180 seconds
- Indepentent deceleration during open and close for motor
- Provides filters for the external noises
- After a power outage, the control panel checks the door if it is close or open and it closes it automatically
- Working temperatures: -20oC - 60oC
- Size: 111mm X 82mm X 30mm including ABS housing
