6050

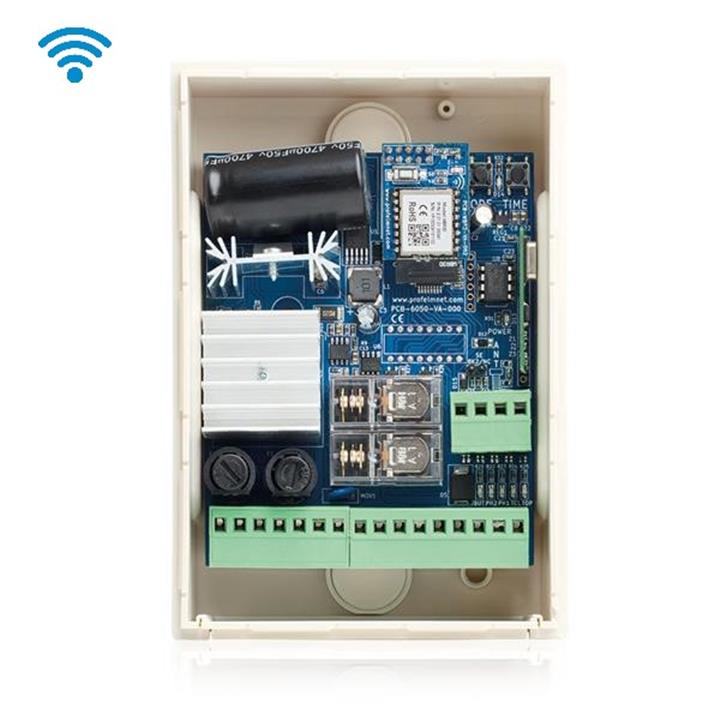

WiFi control board 24 VDC
6050 control board is the ideal connectivity solution for sliding and swing gates, rolling shutters and barriers that makes access smarter and easier. The user has the possibility to make all the settings of the automation via mobile phone and also to manage the gate from wherever he is, using the WiFi network.
Technical data
- Power Supply 24VAC/DC
- Motor Power 200W in total
- Box Dimensions 10cm X 14.50cm X 5cm
- Board Dimensions 8.5cm X 10.5cm X 0.05cm
- Transformer Primary Side T1,25A
- Power Supply Fuse 24VAC/DC F10A
- Photocell Fuse F0,63A
- Flash Power Supply 24VDC
- Photocells Power Supply 24VAC/DC
- Board Memory removable up
- to 300 remotes
- Temperature -20oC + 60oC
- WiFi Protocol IEEE802.11 / 2.4GHz / 5GHz
- Reception Frequency 433.92 MHz
- Encoding Multiple, depending
- on the installation
- Transformer Toroidal 24VAC 130VA
- Compatible Application Tuya Smart Life, Smart Living
- Maximum Number of Users 20
