5150

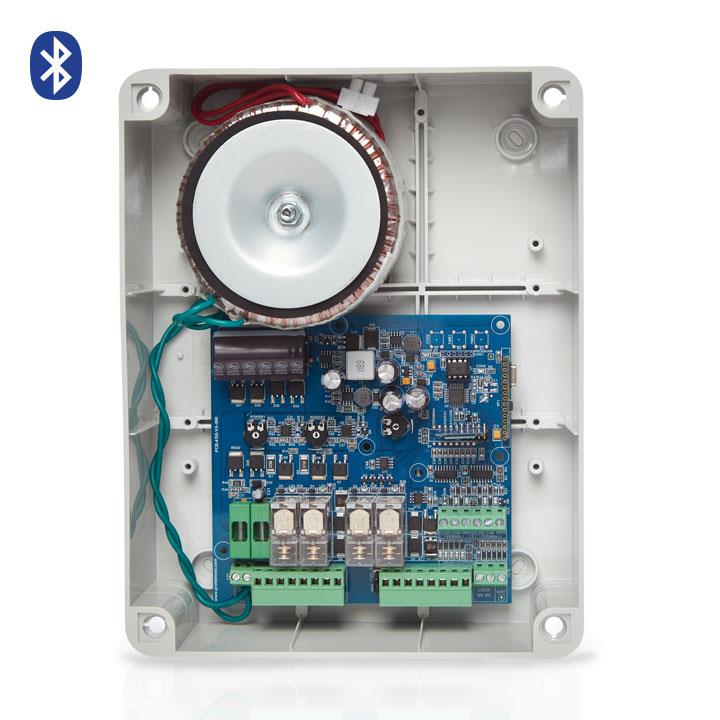

Bluetooth control panel for double motors 24VDC

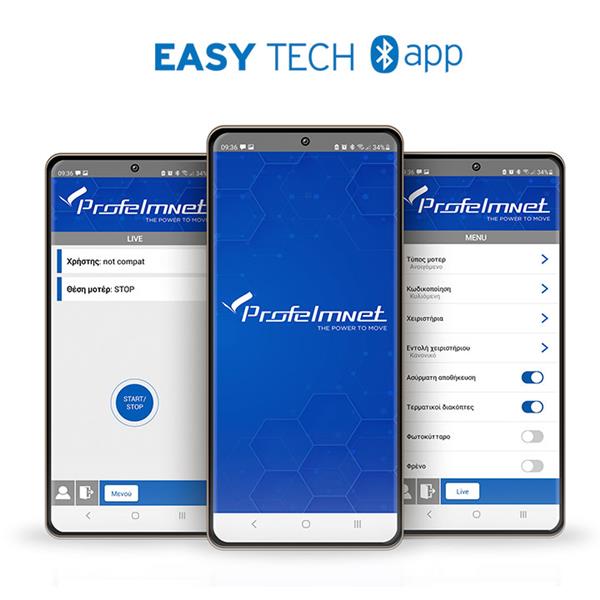

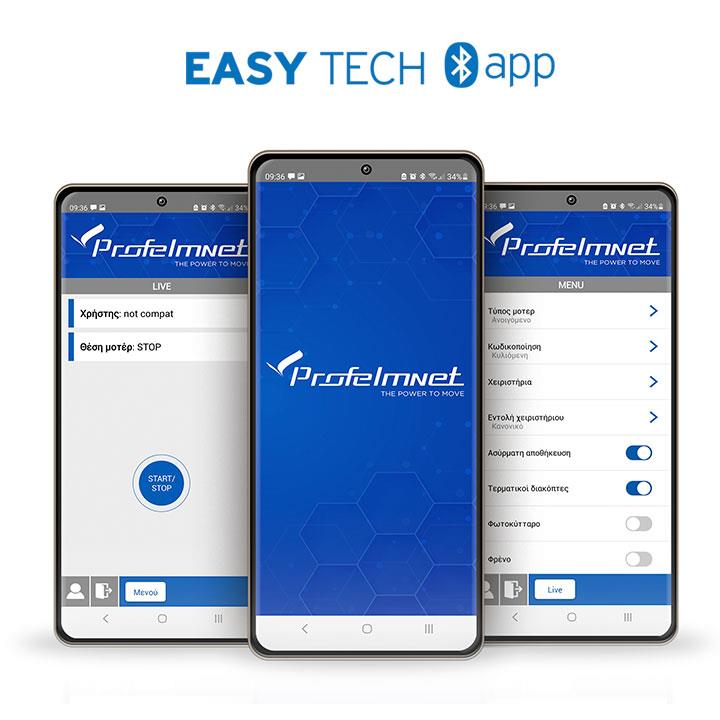

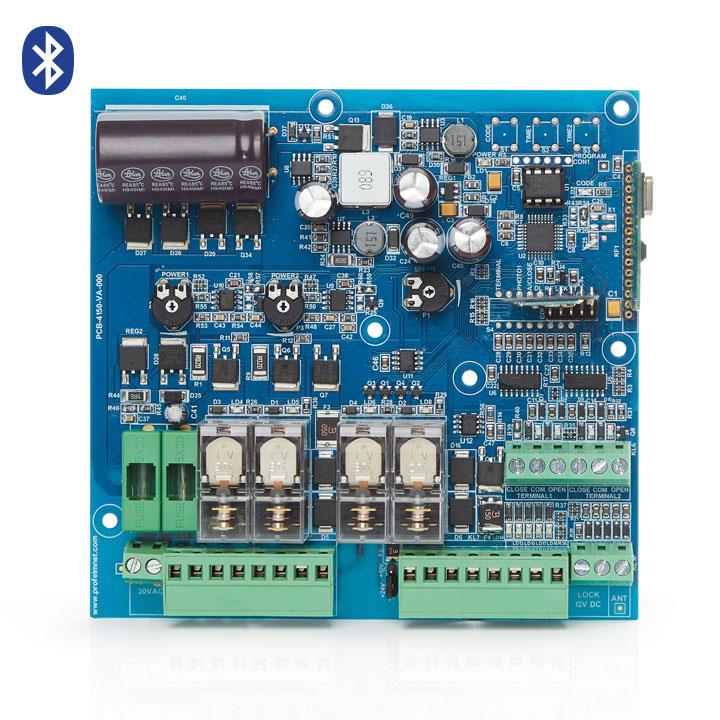

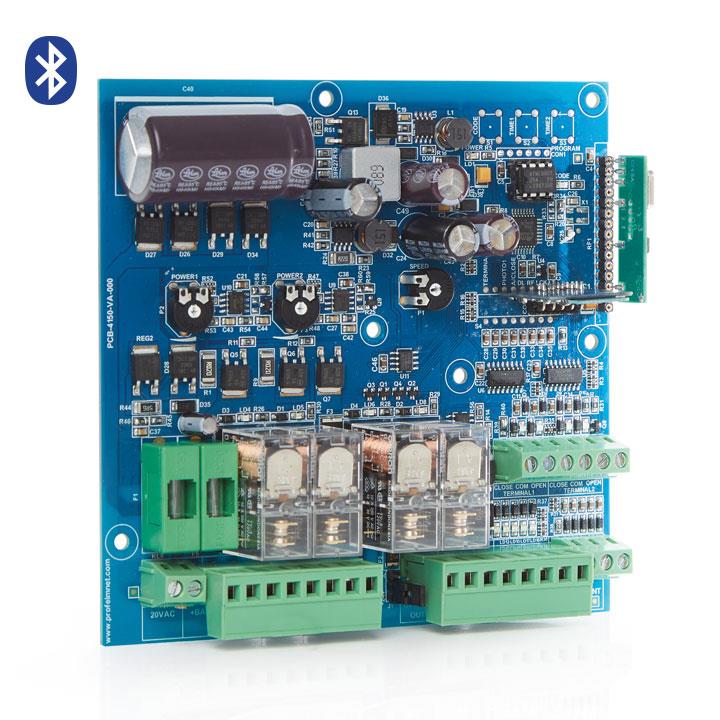

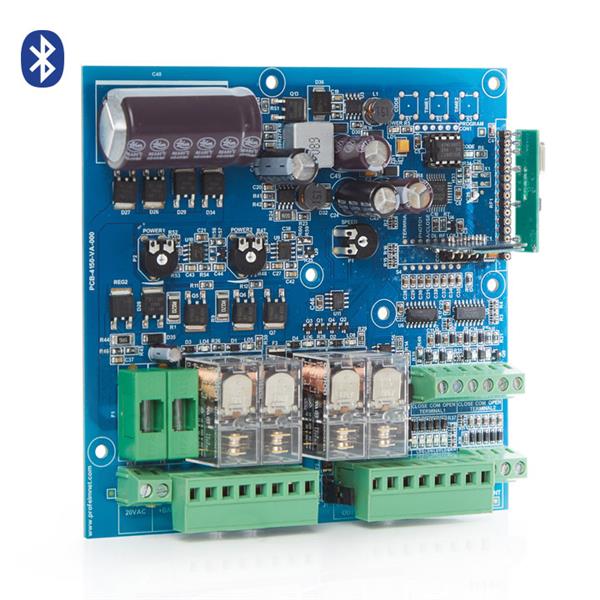

Series 50 is a complete series of PROFELMNET control boards, with integrated Bluetooth technology. Compatible with Profelmnet Easy Tech application that is available in IOS and Android. The installer is able to access and adjust all the functions of the control board through the smartphone, tablet or laptop.

ProfelmNet

Technical data

Power Supply 24VDC /50 Hz

Max Motor Power 400W

Box Dimensions 25cm X 19.50cm X10cm

Control board Dimensions  13cm X 13.50cm X4.5cm

Fuse 24VDC 10Α

Battery Fuse  10A

Blinker Light power supply  24VDC/500mA

Photocell power supply 24VAC/100 mA

Battery Type   2X12V/ 6Ah

Type of transformer  Toroidal 20-24VAC-130VA

Remotes Memory 300 remotes

Temperature  -20oC + 60oC
