3050

Control panel for 24VDC motors up to 200 watt

Product description
Technical leaflets

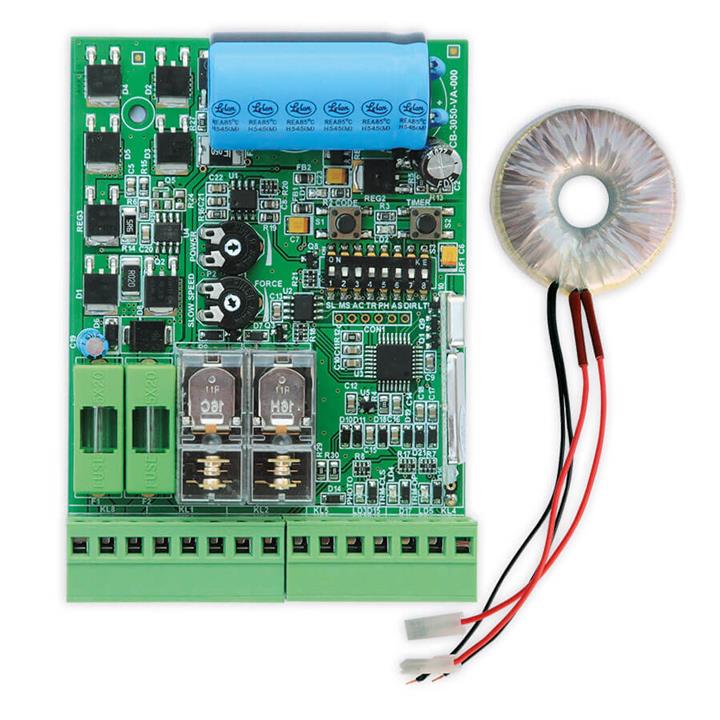

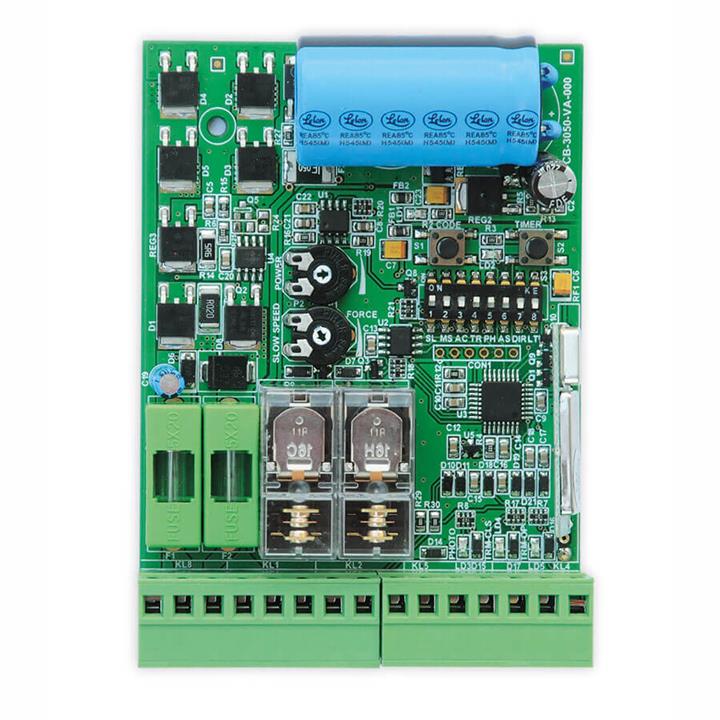

3050 is the new multi- function control panel for 24VDC motors up to 200 watt. Suitable for sliding and swing gates, overhead doors and barriers. Advanced in design and specifications, manufactured with state-of the art raw materials. Embedded functions provide a quick and easy installation. 300 transmitters can be stored.

Main functions

Provides different leds that work based on each different function of the receiver
Separate limit switch inputs for the motor
No sparking relays for longer life time of relays
External button: N.O contact for only opening
Photocell contact input at 24VAC/1,1VA
Amperometric sensitivity
Adjustable electronic motor torque
Automatic motor’s reversion
Output for flashing light 230VAC/25W standard with or without intermittence
Adjustable automatic closing
Motor operating time is programmable from 1 to 180 seconds
Provides filters for the external noises
Working temperatures: -20oC to + 60oC

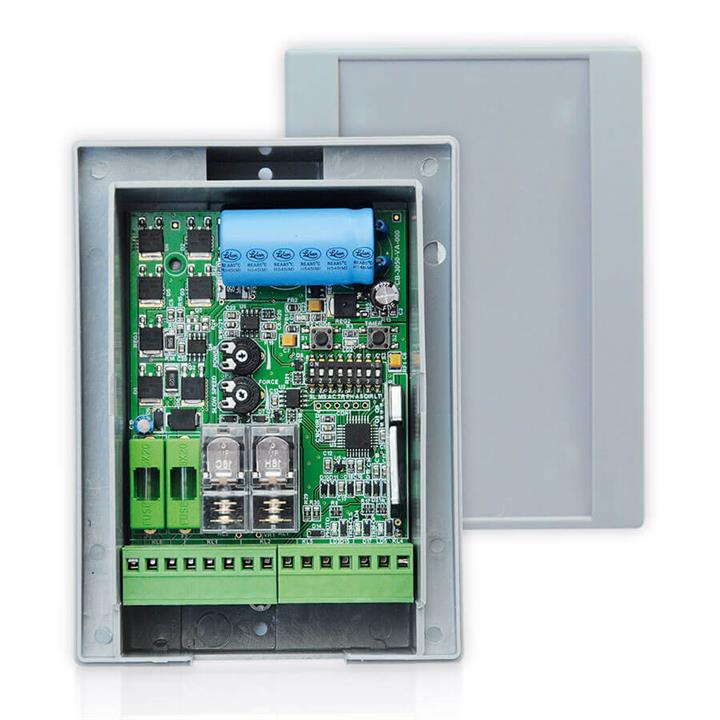

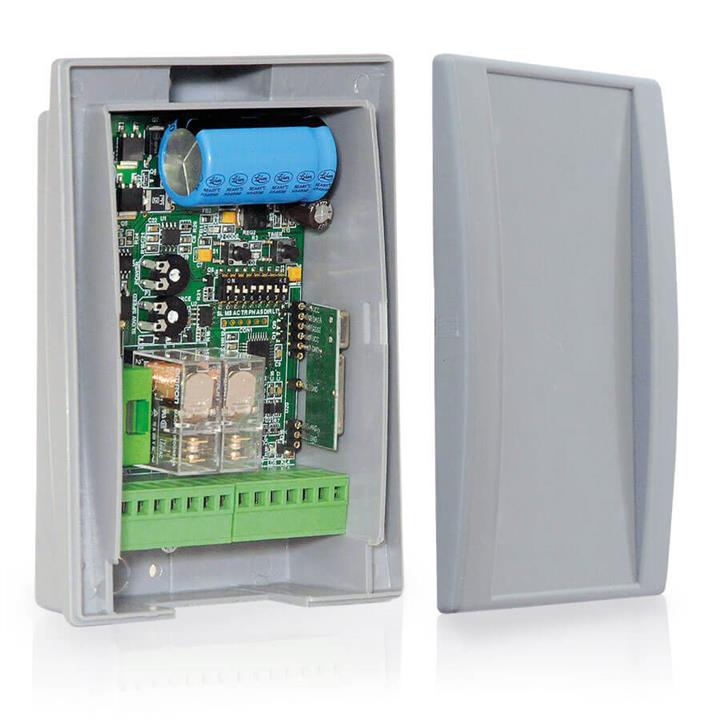

Size: 111mm X 82mm X 30mm including ABS housing

Available codes

Product name	Codification	Compatible Transmitters
PS3050	fixed 433.92MHz	PSD-36T, PS-46T
PSR3050	keeloq rolling 433.92MHz	PSR-38T, PSR-46T, PSR-25T, PSR-15T, S-18T
PTR3050	keeloq rolling 868.3MHz	PTR-15T
PN3050	pn rolling 433.92MHz	PN-46T
