ELITE-6
Μοτέρ ανοιγόμενης πόρτας μέχρι 4.00 μέτρα φύλλο πόρτας με ενσωματωμενο Profelmnet αυτοματισμό

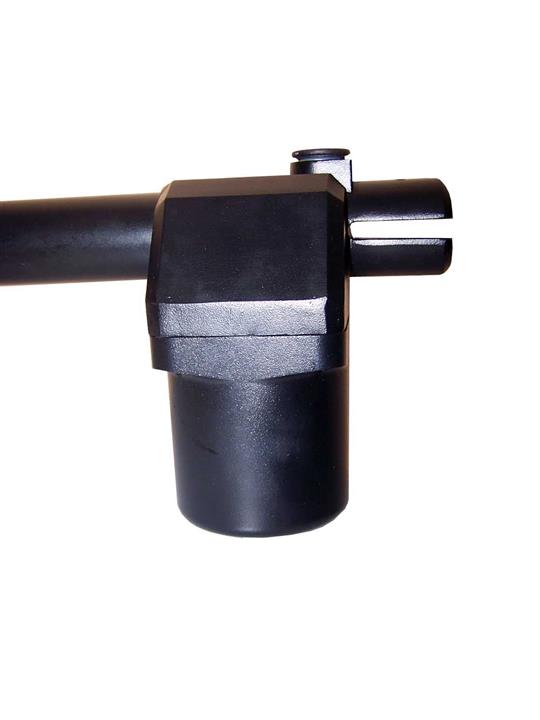

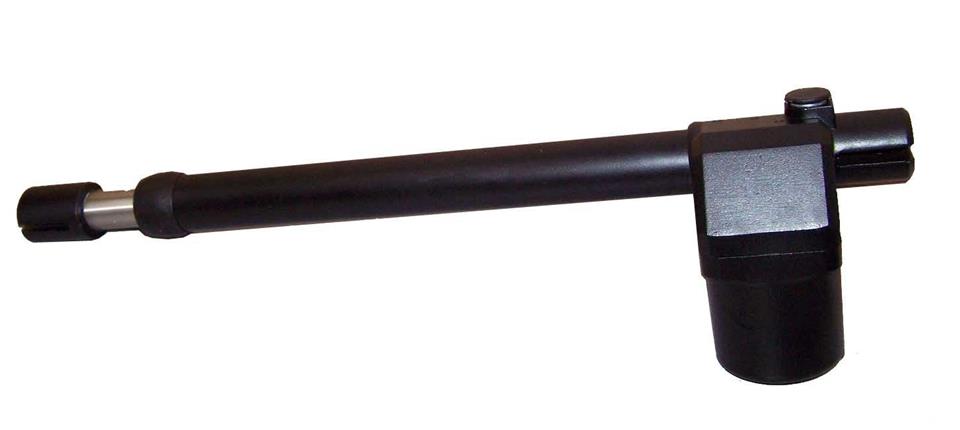

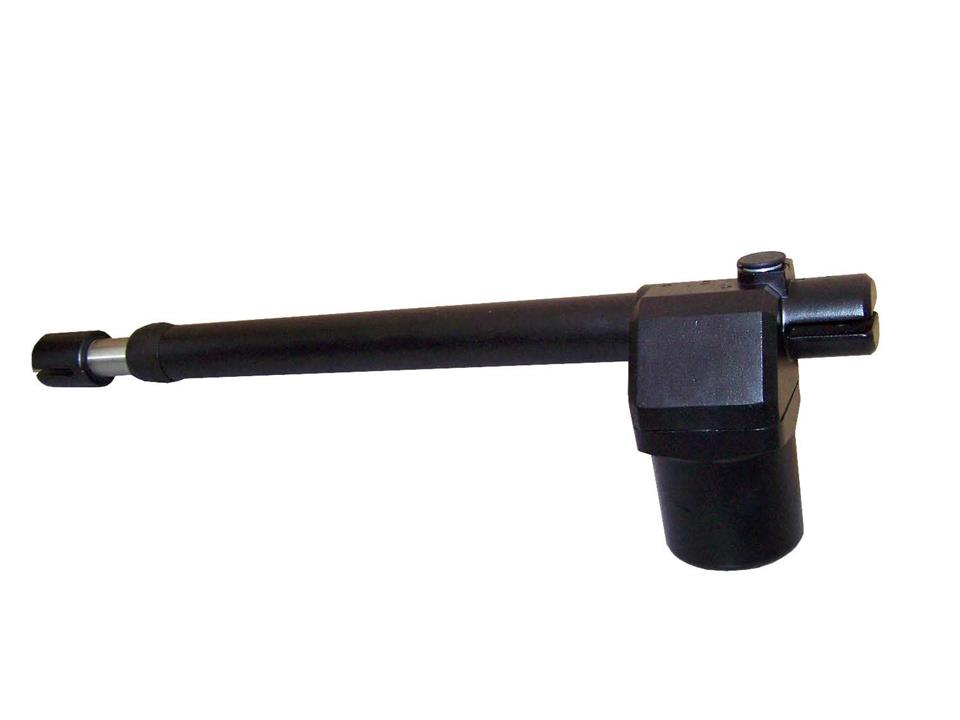

ELITE 6 is the swing motor for gates up to 4,00 m. It is powerful and easy to install. It is the perfect solution to suit most of the residential and commercial swing gates. Electromechanical blocked rams, completelyu in aluminium. In case of power failure, you can unlock the gate through the release key supplied with the motors. Embedded Profelmnet control panel, offering the most reliable solution for the swing gate.
Main motor characteristics
- Maximum doορ leaf up to 4.00 meters
- Motor power 230V/280W
- Maximum door weight 200 kg
- Maximum thrust 2800N
- Motor rpm 1400
- Protection rating IP44
Main control panel functions
- Separate limit switch inputs for the motor
- Motor brake function. It is recommended for heavy motors
- Adjustable electronic motor torque and adjustable decelaration seperately
- Automatically change motor's direction automatically
- External button: N.O contact
- Photocell contact input at 24VAC/1,1VA
- Adjustable electronic MOTOR torque
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature: Smart auto-close timer
- Motor operating time: Programmable from 1 to 180 seconds
- Indepentent deceleration during open and close for motor
