Control boards
2114

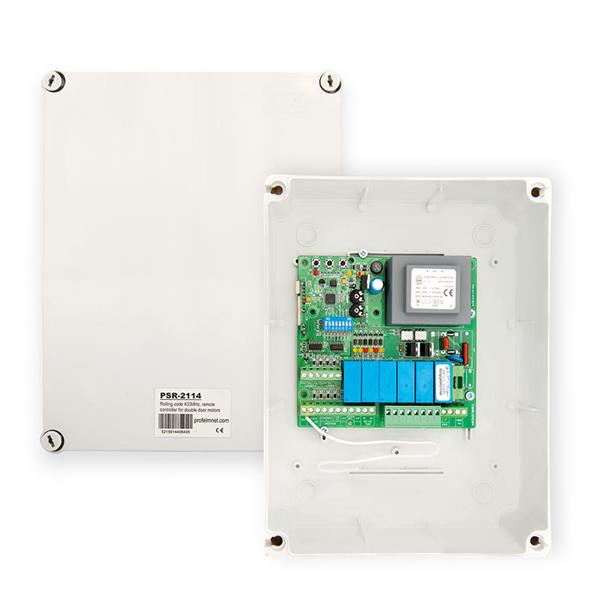

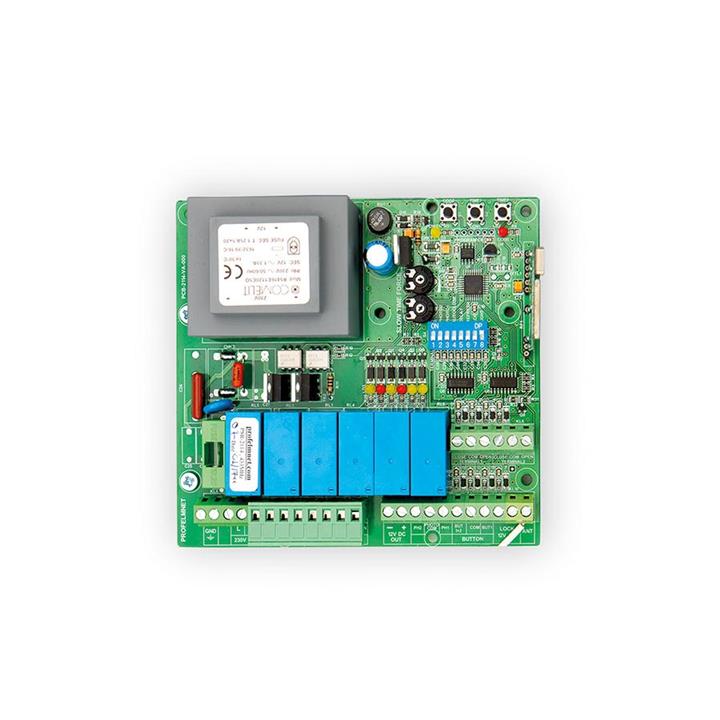

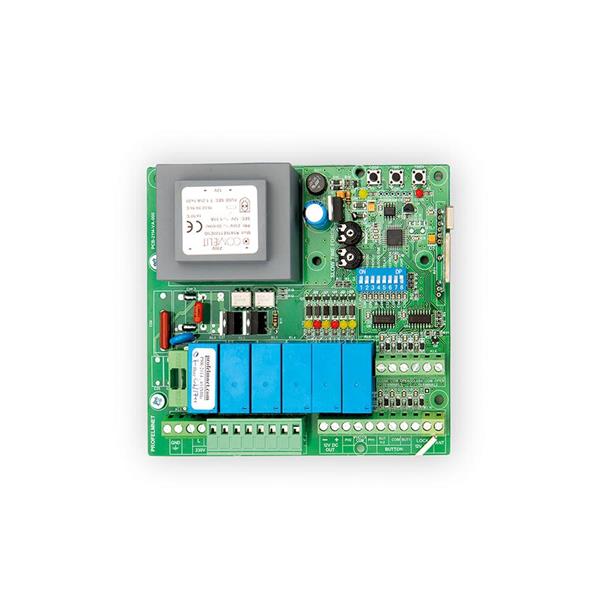

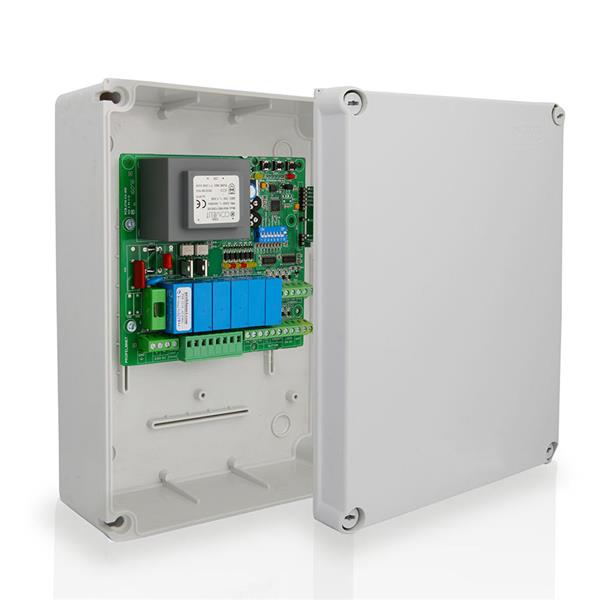

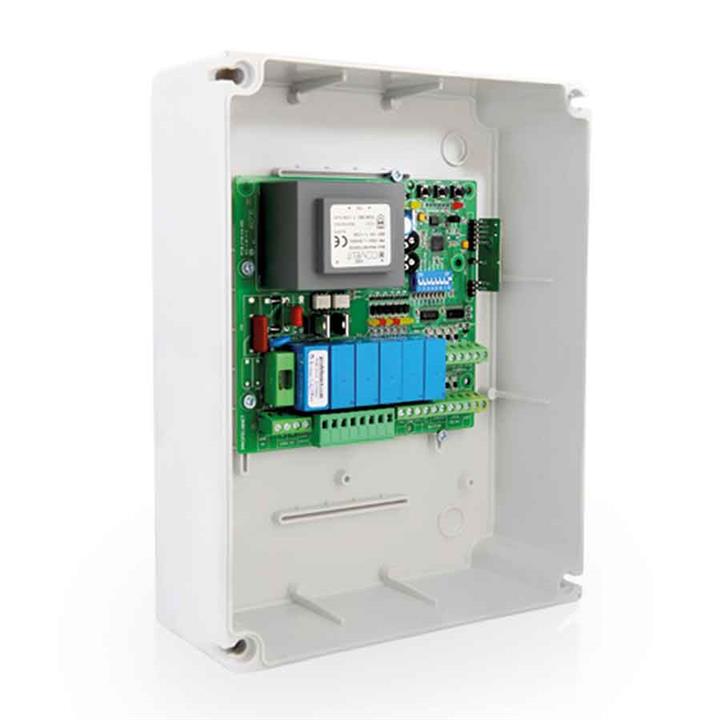

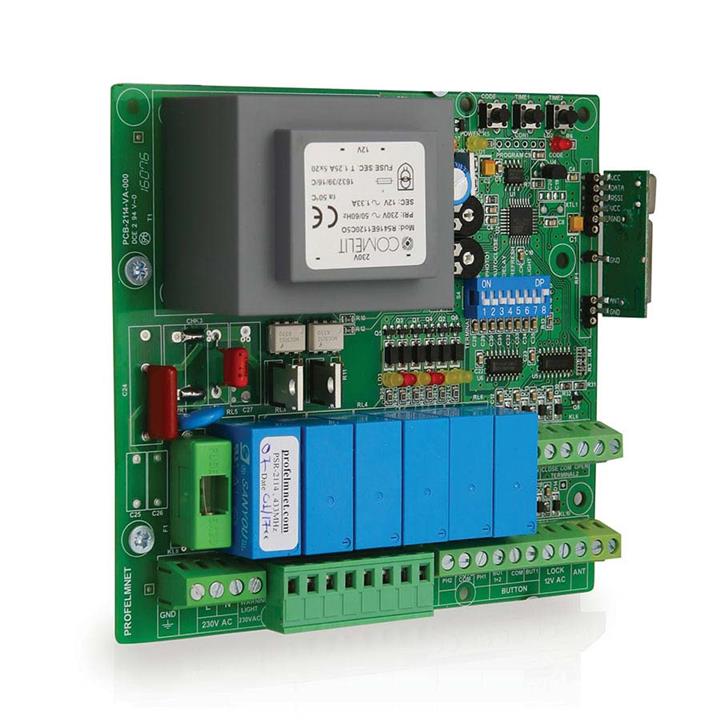

Control panel for double swing gate
2114 is multi-function control panel 230VAC suitable for two swing gates motors up to 1400 watt. Easy programming and sophisticated functions. 20 or 80 transmitters can be stored.
Main functions
- Separate limit switch inputs for each motor
- External button with N.O contact
- Two photocell contact inputs at 12DC/1,1VA
- Adjustable electronic motor torque for both motors
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-close feature smart auto-close timer
- Motor operating time is programmable from 1 to 180 seconds
- Indepentent deceleration during open and close for motor
- Provides filters for the external noises
- Working temperatures: -20oC to +60oC
- Pedestrian function
- 12VAC electric lock output
- Delay function between the two motors
- Size: 119mm X 95mm X 30mm including ABS housing
Available codes
| Product name | Codification | Compatible Transmitters |
| PS2114 | fixed 433.92MHz | PSD-36T, PS-46T |
| PSR2114 | keeloq rolling 433.92MHz | PSR-38T, PSR-46T, PSR-25T, PSR-15T, S-18T |
| PTR2114 | keeloq rolling 868.3MHz | PTR-15T |
