3633

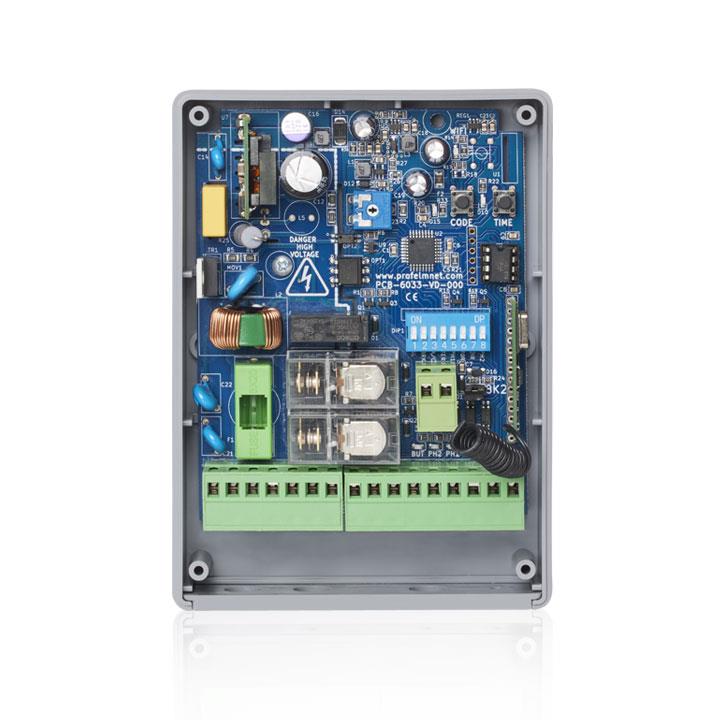

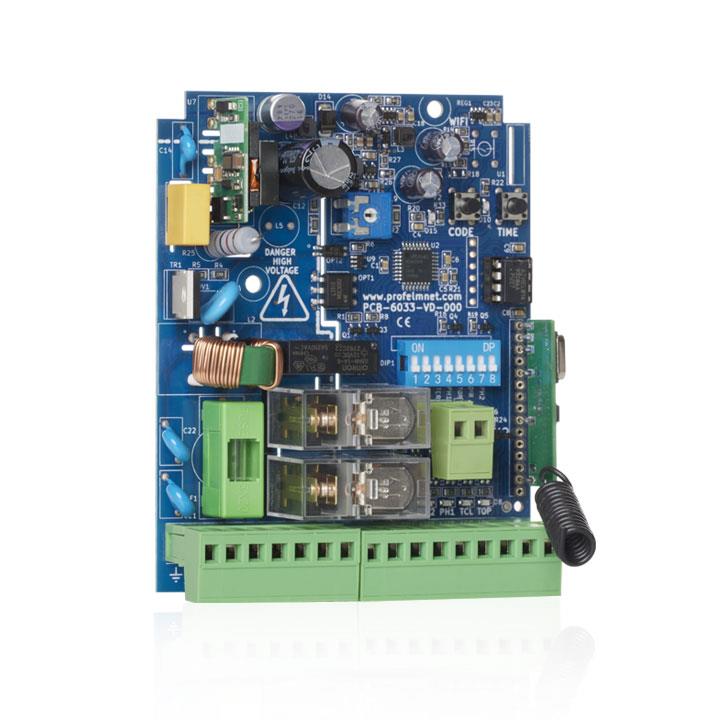

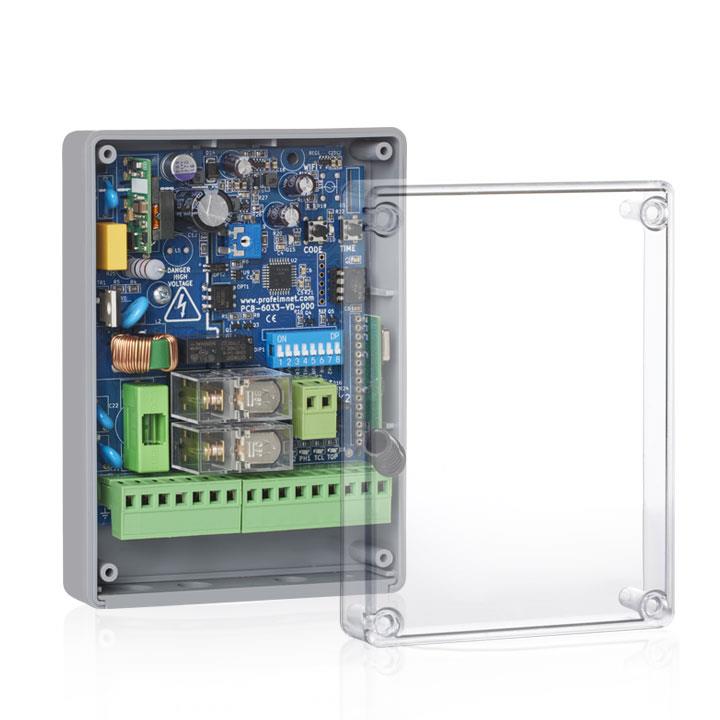

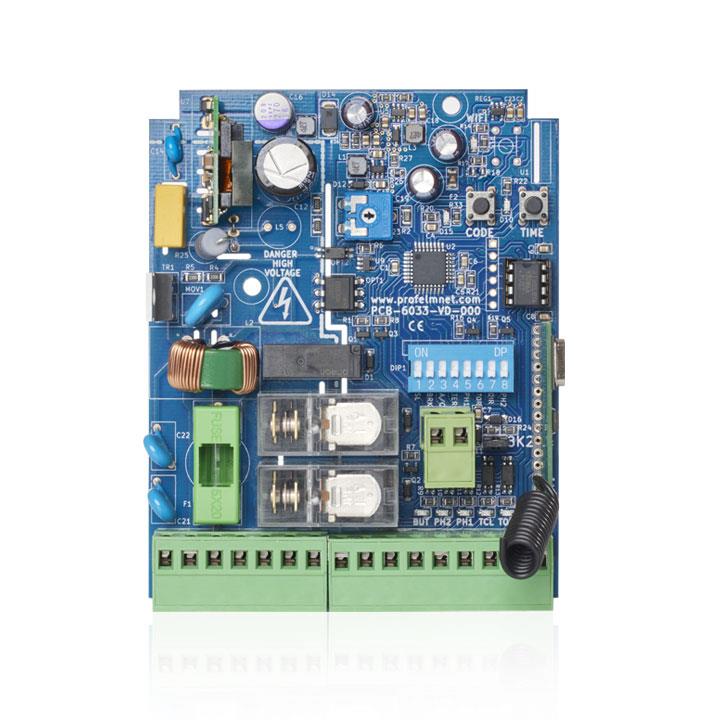

Control board for sliding gate motors up to 1.200watt
3633 is the complete automation 230VAC for sliding gate motors up to 1200 watt. Its new design supports the simultaneous operation of 2 photocells (protection and freezing), as well as the safety edge with a closed-type contact termination or with a 8K2 resistor. Pedestrian function is also supported, as well as a new blinker light function, indicating the different statuses of the gate.
Main functions
- Motor brake function
- Adjustable electronic motor torque and adjustable decelaration seperately
- Automatically change motor's direction automatically
- Output for flashing light 230VAC/25W standard with or without intermittence
- Auto-Close function
- Pedestrian function
- Safety-Edge contact
- 2 photocells supported
- Motor operating time is programmable from 1 to 180 seconds
- Deceleration during open and close for motor
- Provides filters for the external noises
- Working temperatures: -20oC to +60 Celsius
- Size: 111mm X 82mm X 30mm including ABS housing
Available Codes
| Product name | Codification |
| PS3633 | fixed 433.92MHz |
| PSR3633 | keeloq rolling 433.92MHz |
| PN3633 | pn rolling 433.92MHz |
