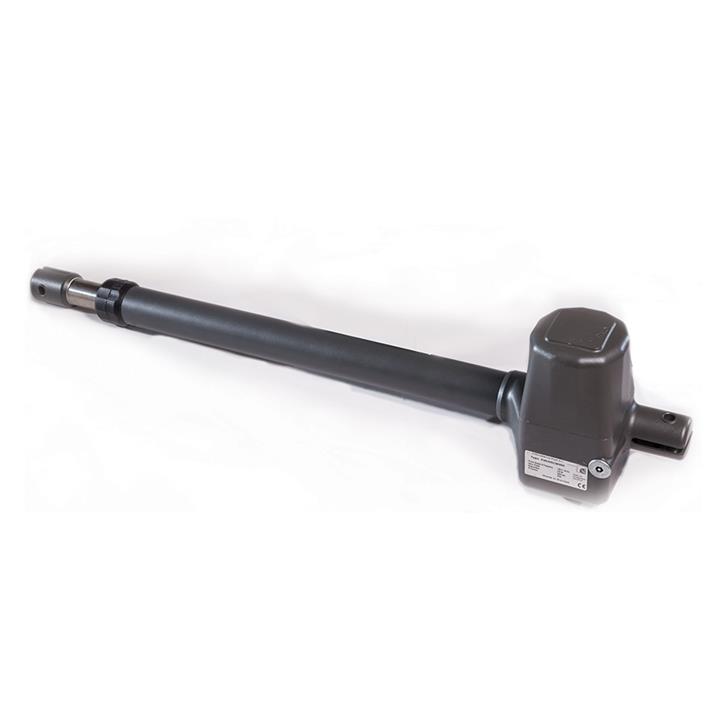

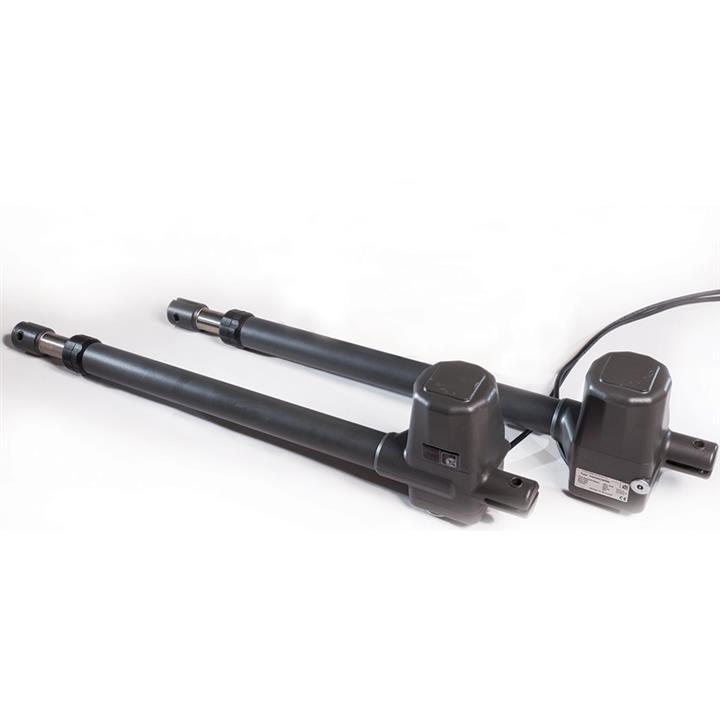

B-400

Swinging motor up to 3 m door leaf, embedded Profelmnets control panel

B-400 is swing gate automation for gate leaves up to 3 m. It is an electro-mechanical operator safe and reliable. Embedded Profelmnet control panel, offering the most reliable solution for the swinging gate.

ProfelmNet

Main motor technical data

  • Maximum doορ leaf up to 3 meters
  • Motor power   230V/280W
  • Maximum door weight 350 kg
  • Opening time  8,5 meters / minute
  • Motor rpm  1400
  • Protection rating  IP44
  • Weight 6 kg
ProfelmNet

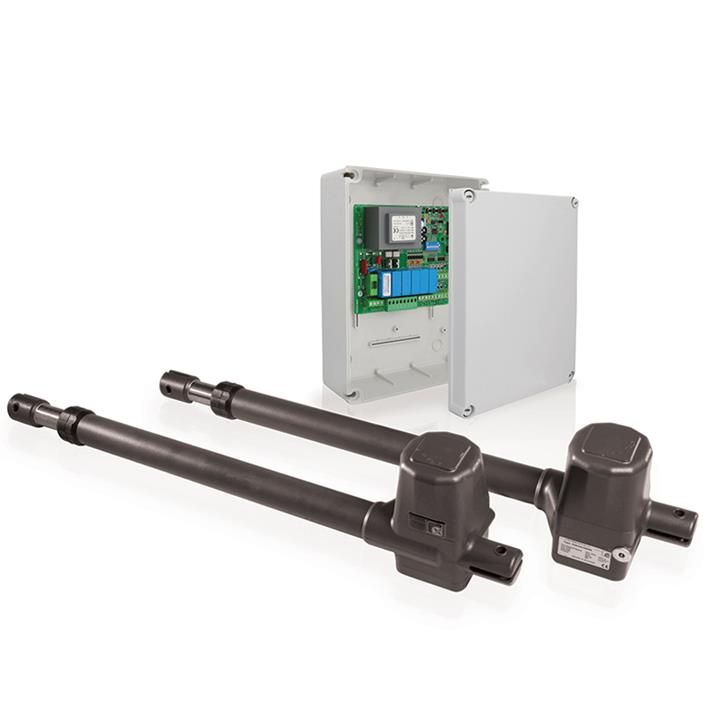

Main control panel functions

  • Separate limit switch inputs for the motor
  • Motor brake function. It is recommended for heavy motors
  • Adjustable electronic motor torque and adjustable decelaration seperately
  • Automatically change motor's direction automatically
  • External button: N.O contact
  • Photocell contact input at 24VAC/1,1VA
  • Adjustable electronic MOTOR torque
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature: Smart auto-close timer
  • Motor operating time: Programmable from 1 to 180 seconds
  • Indepentent deceleration during open and close for motor

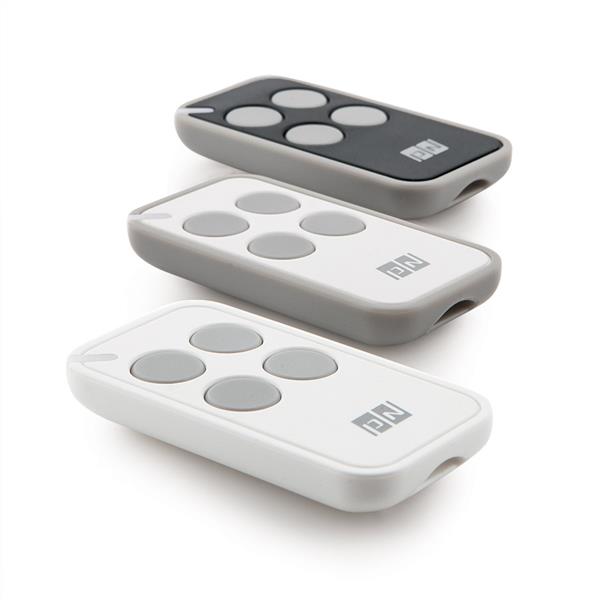

ProfelmNetAccessories

Enrich the product with the appropriate accessories, giving it more functionality and features.
