3651

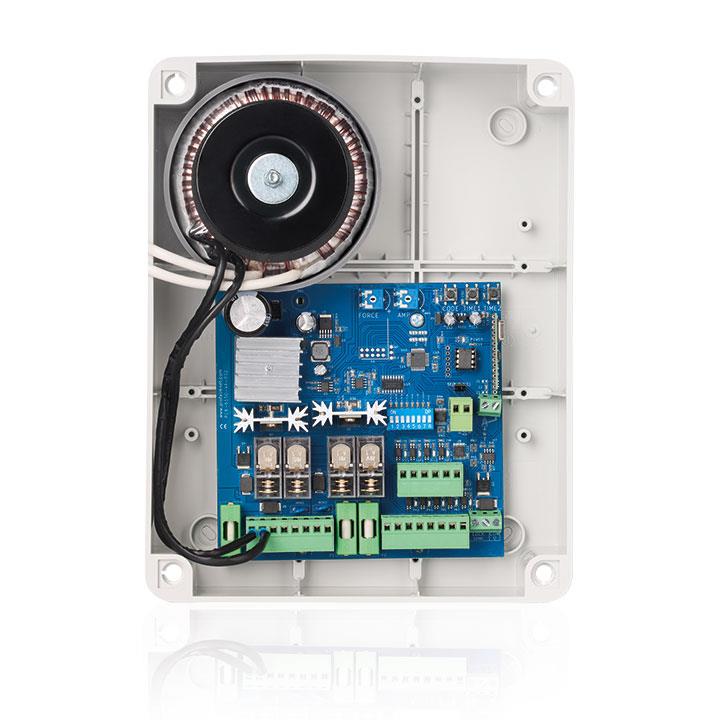

Control board for 2 motors 24 VAC
3651 is control panel for 24VAC motors up to 400 watt. Configuration and Adjustments through Dipswitch. Advanced in design and specifications, manufactured with state-of the art raw materials. Embedded functions provide a quick and easy installation. 300 transmitters can be stored.
Technical data
Power Supply 24VDC /50 Hz
Max Motor Power 400W

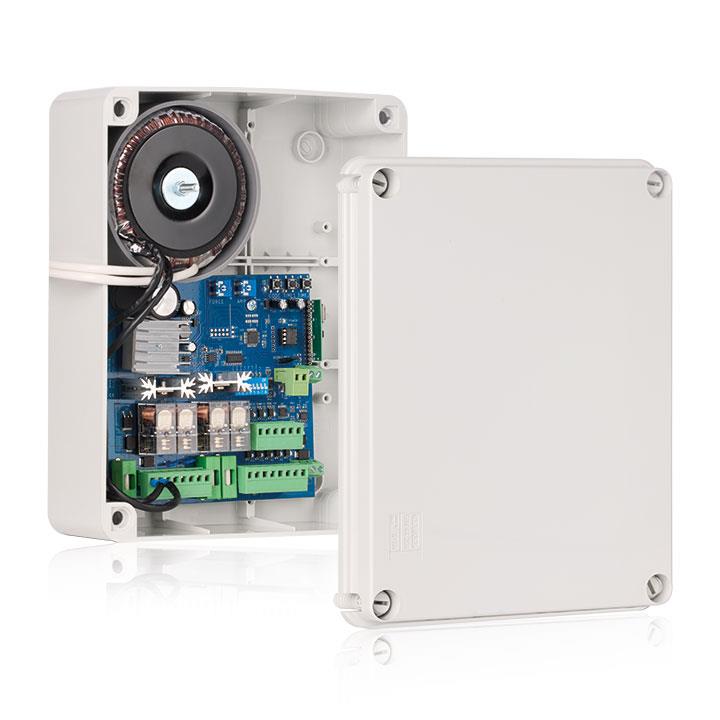

Box Dimensions 25cm X 19.50cm X10cm

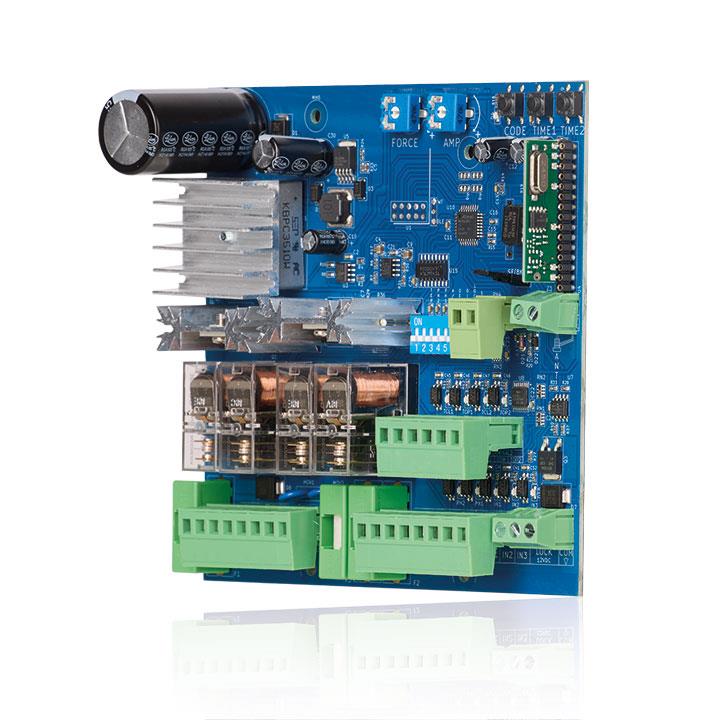

Control board Dimensions 13cm X 13.50cm X4.5cm
Fuse 230VAC 10A
Fuse 24VDC 200mA
Blinker Light power supply 24VDC/500mA
Photocell power supply 24VAC/100 mA
Type of transformer Toroidal 20-24VAC-130VA
Remotes Memory 300 remotes
Temperature -20oC + 60oC
