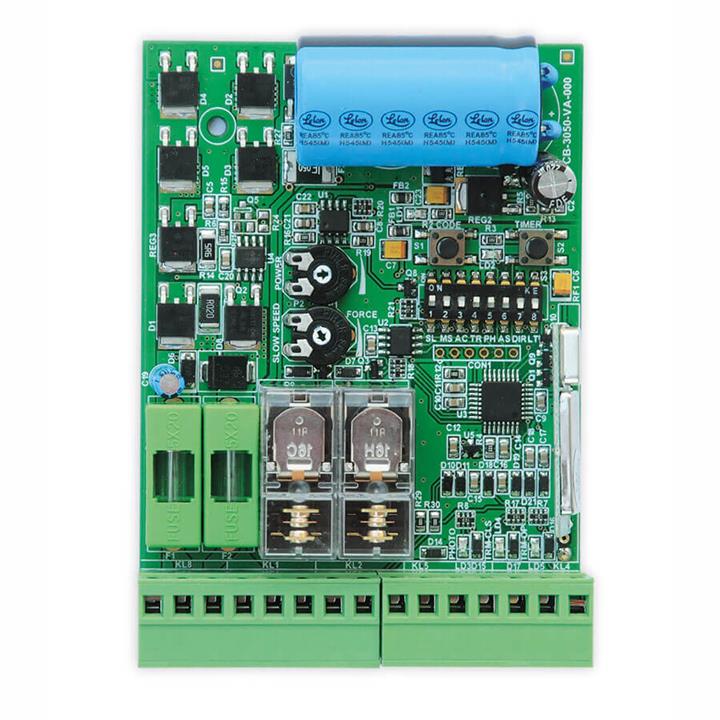

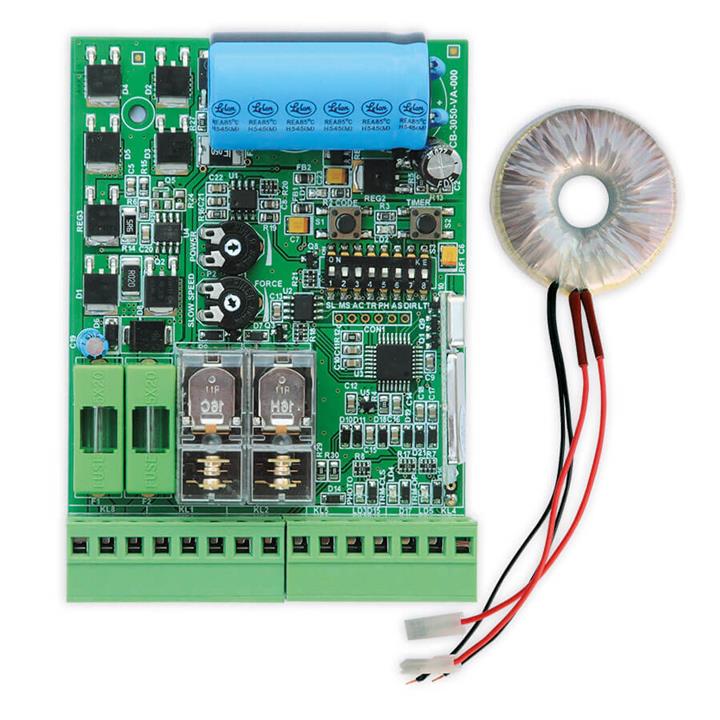

3050 is control panel for 24VDC motors up to 200 watt. Suitable for sliding and swing gates, overhead doors and barriers. Advanced in design and specifications, manufactured with state-of the art raw materials. Embedded functions provide a quick and easy installation. 300 transmitters can be stored.
Main characteristics
- Provides different leds that work based on each different function of the receiver
- Separate limit switch inputs for the motor
- No sparking relays for longer life time of relays
- External button: N.O contact for only opening
- Photocell contact input at 24VAC/1,1VA
- Amperometric sensitivity
- Adjustable electronic motor torque
- Automatic motor’s reversion
- Output for flashing light 230VAC/25W standard with or without intermittence
- Adjustable automatic closing
- Motor operating time is programmable from 1 to 180 seconds
- Provides filters for the external noises
- Working temperatures: -20oC to + 60oC
- Size: 111mm X 82mm X 30mm including ABS housing
